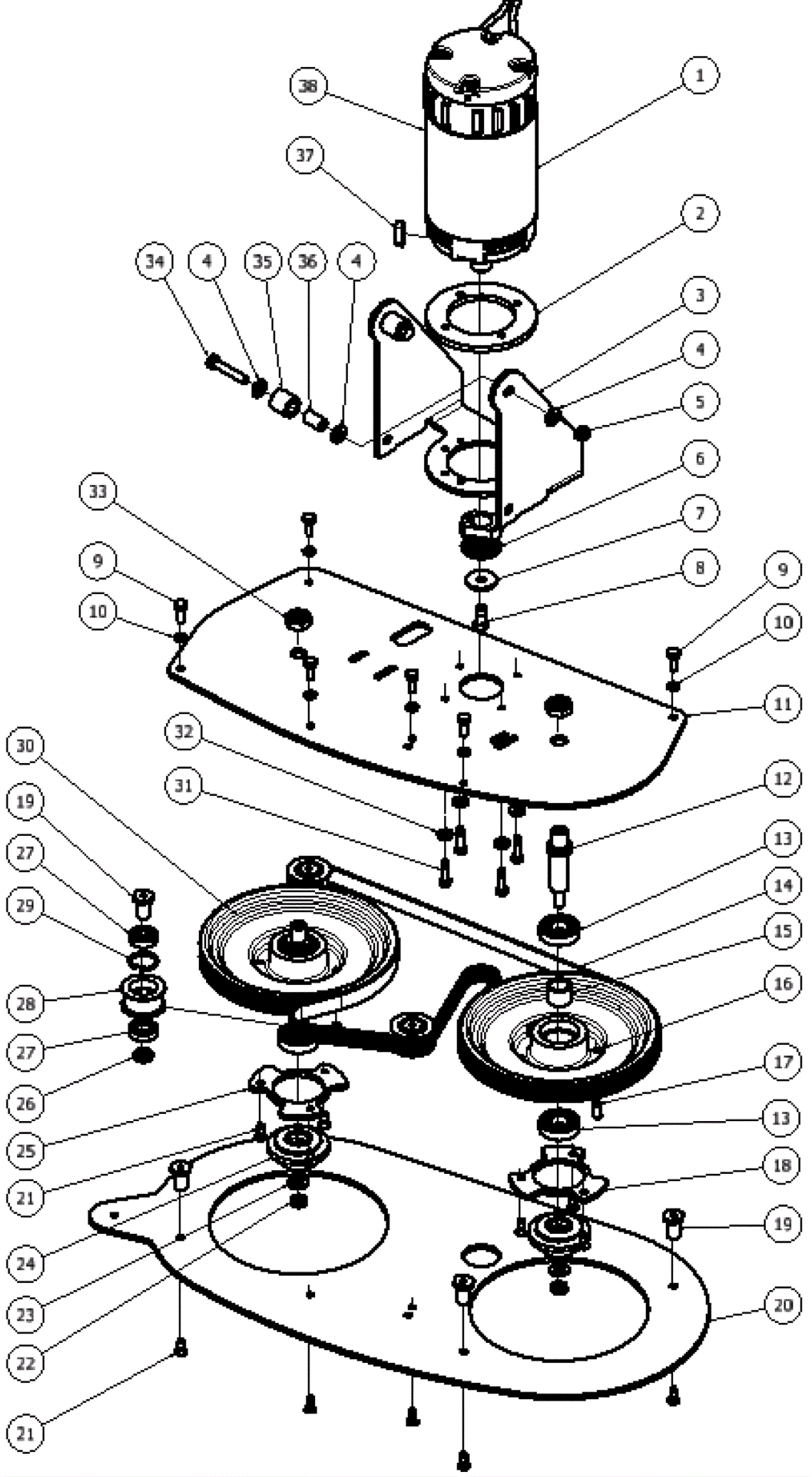

S-24 Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-3314 24 inch mounting plate $76.63 1 usually ships 12-16 days
2 206-3315 Spacer $16.35 3 usually ships 12-16 days
3 206-4820 Washer $3.14 8 usually ships 12-16 days
4 206-5233 Washer 5/16 x .040 flat $2.59 9 ships same day
5 206-3316 Left hand driver guide $64.35 1 usually ships 12-16 days
6 206-3318 Pad guide $78.97 2 usually ships 12-16 days
7 206-3319 Plastic roller $11.17 3 ships same day
8 999-1824 Screw 1/4-20 x 5/8 flat head socket stainless steel $2.01 13 ships same day
9 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 3 ships same day
10 999-0593 Nut 5/16-18 hex stainless steel $0.99 3 ships same day
11 206-3320 24V brush motor $1,066.23 1 usually ships 12-16 days
12 206-4039 Carbon brush kit $153.95 1 usually ships 12-16 days
13 206-3321 Belt $95.64 1 usually ships 12-16 days
14 206-3322 24 inch plate cover $97.99 1 ships same day
15 206-3323 Pulley shaft $82.83 2 usually ships 12-16 days
16 206-0009 Bearing $44.28 6 ships same day
17 206-3324 Idler pulley $30.87 3 usually ships 12-16 days
18 206-3325 Retaining ring $4.38 3 ships same day
19 206-3326 Idler spacer $27.02 6 ships same day
20 206-3327 Spacer $12.00 3 ships same day
21 206-3328 Drive motor pulley $78.70 1 usually ships 1-5 days
22 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
23 206-3329 Square keyway $3.51 1 usually ships 12-16 days
24 206-3330 Bearing $59.36 4 usually ships 12-16 days
25 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
26 206-3331 Bearing spacer $26.05 2 usually ships 12-16 days
27 206-3332 Grooved pulley hub $138.10 1 usually ships 12-16 days
28 206-3334 Flat pulley hub $129.83 1 usually ships 12-16 days
29 206-3335 Head support bracket (OBSOLETE) $48.49 1 usually ships 1-5 days
30 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
31 170-8034 Screw 8mm x 1.25 x 20 hex head (OBSOLETE) $5.50 1 usually ships 1-5 days
32 999-0403 Nut 5/8-18 nylon insert lock grade 8 yellow zinc $6.27 2 ships same day
33 206-3336 Support bracket $63.95 1 usually ships 1-5 days
34 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 2 ships same day
35 206-3337 Right side driver guide $45.62 1 usually ships 12-16 days
36 206-3338 Spacer $38.04 1 usually ships 1-5 days
37 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 6 ships same day
38 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
39 206-4037 Press-in plunger ball $48.73 2 usually ships 12-16 days
