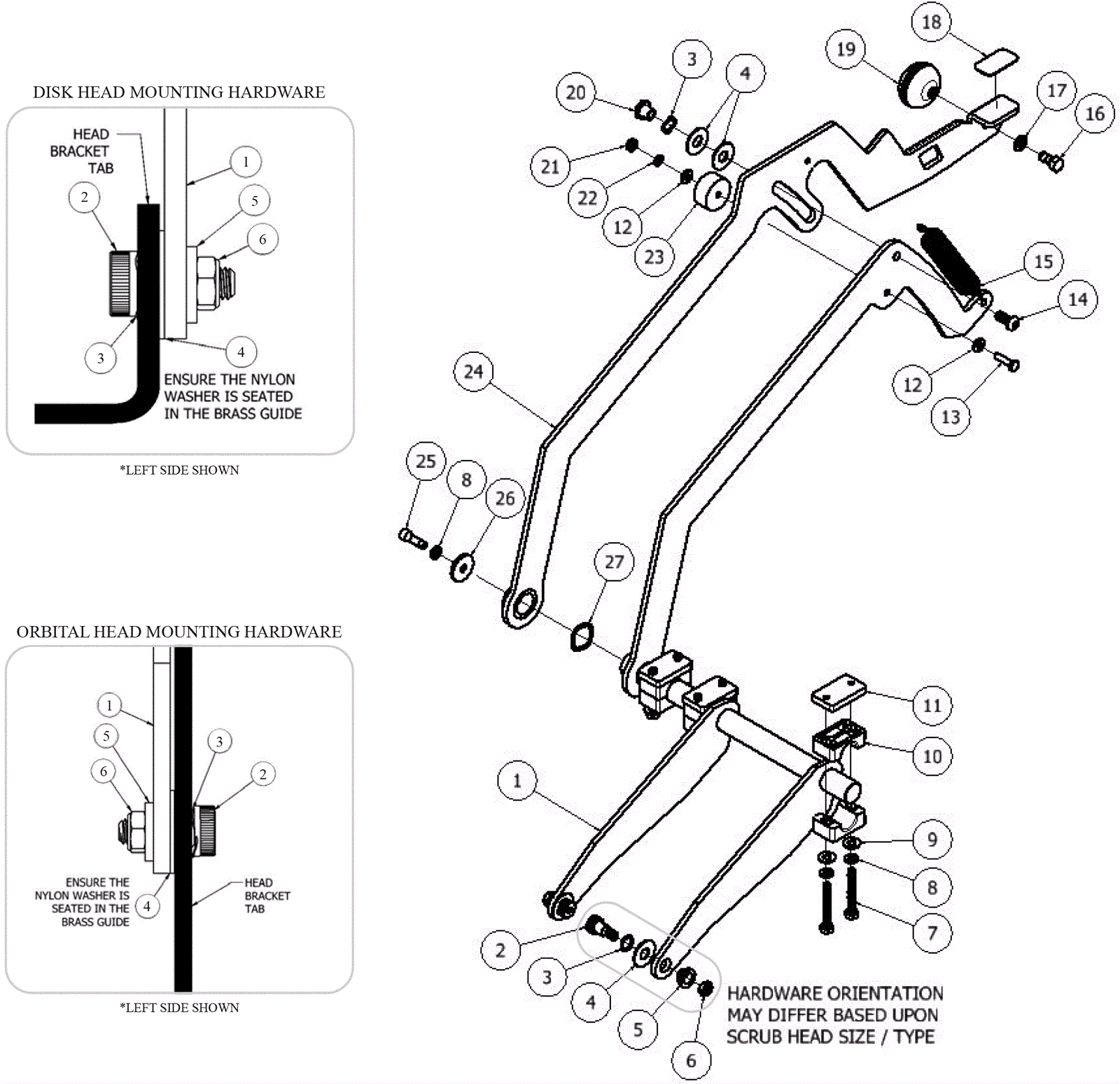

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3306
|
Lift bracket |
1 |
|
|
2 |
206-3275
|
Screw 1/2 x 1/2 shoulder |
2 |
|
|
3 |
206-3310
|
Washer 1/2 wave |
3 |
|
|
4 |
206-3095
|
Washer thrust |
4 |
|
|
5 |
206-3301
|
Flange bushing |
2 |
|
|
6 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
7 |
206-2165
|
Screw 5/16-18 x 2 1/4 hex head stainless steel |
6 |
|
|
8 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
7 |
|
|
9 |
206-5233
|
Washer 5/16 x .040 flat |
6 |
|
|
10 |
206-3307
|
Plastic bearing mount |
6 |
|
|
11 |
206-6023
|
Bracket bearing mount |
3 |
|
|
12 |
206-4820
|
Washer |
2 |
|
|
13 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
|
14 |
206-4052
|
Screw |
1 |
|
|
15 |
206-3311
|
Extension spring |
1 |
|
|
16 |
999-1192
|
Screw 3/8-24 x 3/4 hex head stainless steel |
1 |
|
|
17 |
206-0410
|
Washer 3/8 lock |
1 |
|
|
18 |
206-3309
|
Foot grip decal |
1 |
|
|
19 |
206-3312
|
Knob |
1 |
|
|
20 |
206-4051
|
Lift arm spacer |
1 |
|
|
21 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
22 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
23 |
206-3313
|
Rubber spacer |
1 |
|
|
24 |
206-3308
|
Down pressure lever |
1 |
|
|
25 |
999-1822
|
Screw 5/16-18 x 1 socket cap stainless steel |
1 |
|
|
26 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
27 |
206-2166
|
Wave washer |
1 |
|
|
N/S |
206-2167
|
Mount head lift kit |
1 |
(includes 7-11) |
|
