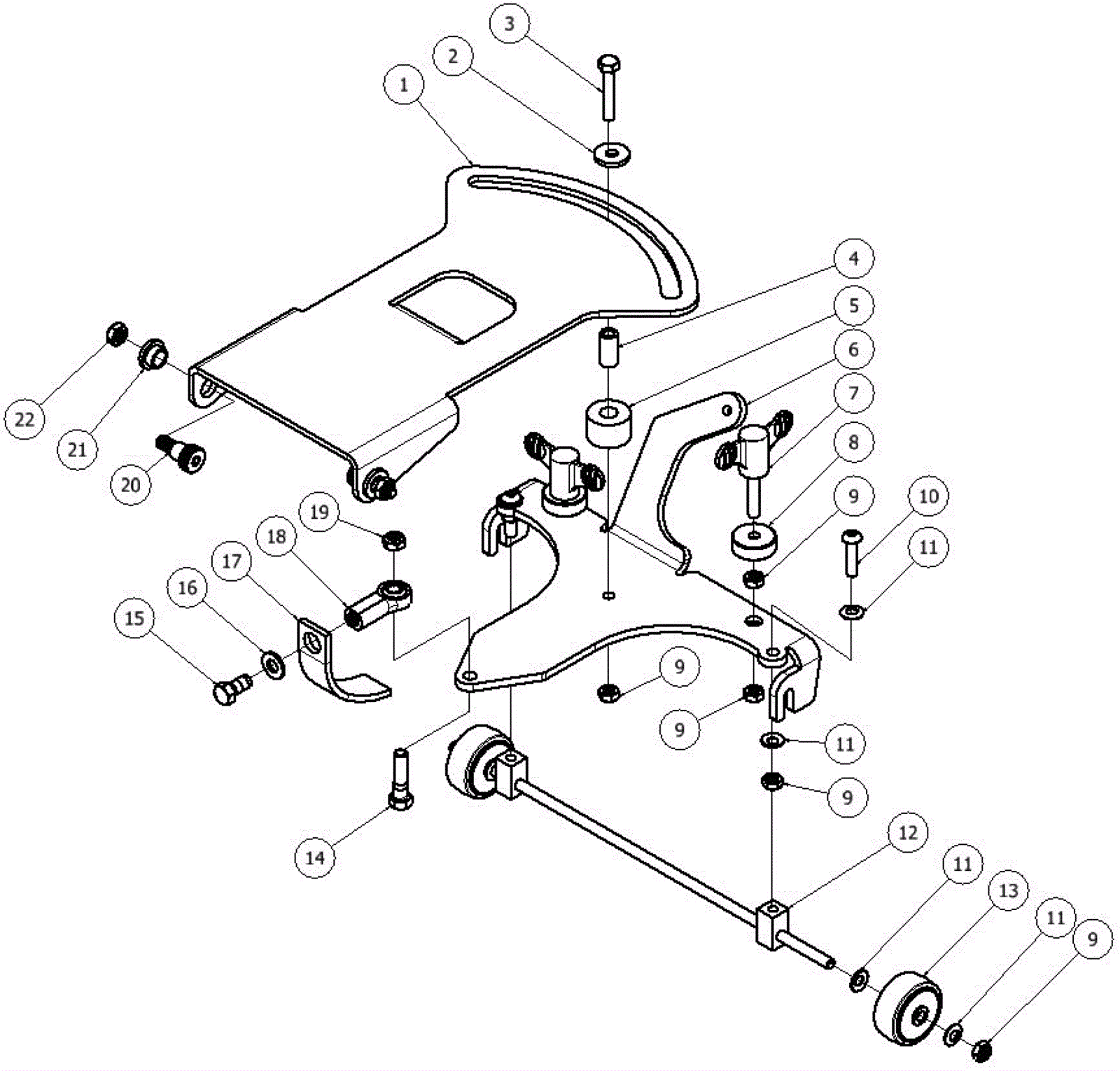

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3299
|
Squeegee swing bracket |
1 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
3 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
1 |
|
|
4 |
206-3303
|
Spacer |
1 |
|
|
5 |
206-3300
|
Guide wheel |
1 |
|
|
6 |
206-3297
|
Squeegee link bracket |
1 |
|
|
7 |
206-3304
|
Knob |
2 |
|
|
8 |
206-3305
|
Retainer |
2 |
|
|
9 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
|
|
10 |
999-1823
|
Screw 5/16-18 x 1 1/4 button head |
2 |
|
|
11 |
206-3298
|
Washer thrust plastic |
8 |
|
|
12 |
206-3295
|
Squeegee wheel axle |
1 |
|
|
13 |
206-3294
|
Squeegee wheel |
2 |
|
|
14 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
1 |
|
|
15 |
999-1192
|
Screw 3/8-24 x 3/4 hex head stainless steel |
1 |
|
|
16 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
17 |
206-3302
|
Grounding strap |
1 |
|
|
18 |
206-3296
|
Bearing end |
1 |
|
|
19 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
20 |
206-3275
|
Screw 1/2 x 1/2 shoulder |
2 |
|
|
21 |
206-3301
|
Flange bushing |
2 |
|
|
22 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
