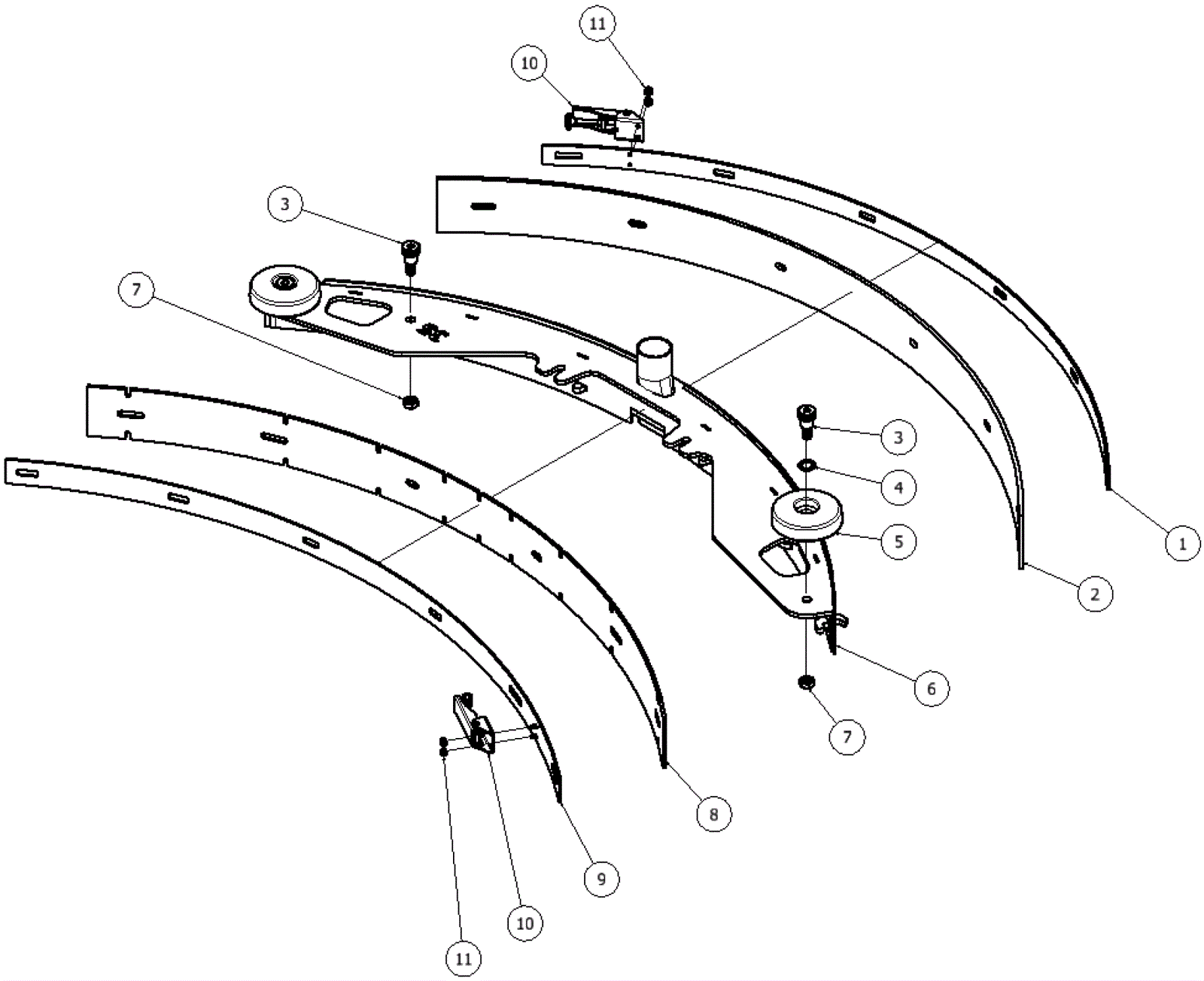

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
206-2169
|
35 inch urethane squeegee assembly |
1 |
(includes 1a, 2a, 3-5, 6a, 7, 8a, 9a, 10-11) |
|
0b |
206-2170
|
35 inch linatex squeegee assembly (OBSOLETE) |
1 |
(includes 1a, 2b, 3-5, 6a, 7, 8b, 9a, 10-11) |
|
0c |
206-6106
|
40 inch squeegee assembly with urethane squeegee blades |
1 |
(includes 1b, 2c, 3-5, 6b, 7, 8c, 9b, 10-11) |
|
0d |
206-6105
|
40 inch squeegee assembly with linatex squeegee blades |
1 |
(includes 1b, 2d, 3-5, 6b, 7, 8d, 9b, 10-11) |
|
0e |
206-2171
|
45 inch urethane squeegee assembly (OBSOLETE) |
1 |
(includes 1c, 2e, 3-5, 6c, 7, 8e, 9c, 10-11 |
|
0f |
206-2172
|
45 inch linatex squeegee assembly (OBSOLETE) |
1 |
(includes 1c, 2f, 3-5, 6c, 7, 8f, 9c, 10-11) |
|
1a |
206-3272
|
35 inch rear squeegee blade retainer |
1 |
(35 inch) |
|
1b |
206-3283
|
40 inch rear squeegee blade retainer |
1 |
(40 inch) |
|
1c |
206-3291
|
44 1/2 inch rear squeegee blade retainer |
1 |
(45 inch) |
|
2a |
206-3269
|
Squeegee blade 35 inch urethane rear |
1 |
(35 inch) |
|
2b |
206-3268
|
Squeegee blade 35 inch linatex rear |
1 |
(35 inch) |
|
2c |
206-3280
|
Squeegee blade 40 inch urethane rear |
1 |
(40 inch) |
|
2d |
206-3279
|
Squeegee blade 40 inch linatex rear |
1 |
(40 inch) |
|
2e |
206-3288
|
Squeegee blade 44 1/2 inch urethane rear |
1 |
(45 inch) |
|
2f |
206-3287
|
Squeegee blade 44 1/2 inch linatex rear |
1 |
(45 inch) |
|
3 |
206-3275
|
Screw 1/2 x 1/2 shoulder |
3 |
|
|
4 |
206-3310
|
Washer 1/2 wave |
2 |
|
|
5 |
206-3274
|
Guide wheel |
2 |
|
|
6a |
206-3267
|
35 inch squeegee weldment (OBSOLETE) |
1 |
(35 inch) |
|
6b |
206-3278
|
40 inch squeegee weldment |
1 |
(40 inch) |
|
6c |
206-3278
|
40 inch squeegee weldment |
1 |
(45 inch) |
|
7 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
3 |
|
|
8a |
206-3271
|
Squeegee blade 35 inch urethane front |
1 |
(35 inch) |
|
8b |
206-3270
|
Squeegee blade 35 inch linatex front |
1 |
(35 inch) |
|
8c |
206-3282
|
Squeegee blade 40 inch urethane front |
1 |
(40 inch) |
|
8d |
206-3281
|
Squeegee blade 40 inch linard front |
1 |
(40 inch) |
|
8e |
206-3290
|
Squeegee blade 44 1/2 inch urethane front |
1 |
(45 inch) |
|
8f |
206-3289
|
Squeegee blade 44 1/2 inch linatex front |
1 |
(45 inch) |
|
9a |
206-3273
|
35 inch front squeegee blade retainer |
1 |
(35 inch) |
|
9b |
206-3284
|
40 inch front squeegee blade retainer |
1 |
(40 inch) |
|
9c |
206-3292
|
44 1/2 inch front squeegee blade retainer |
1 |
(45 inch) |
|
10 |
206-3276
|
Latch |
2 |
|
|
11 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
4 |
|
|
