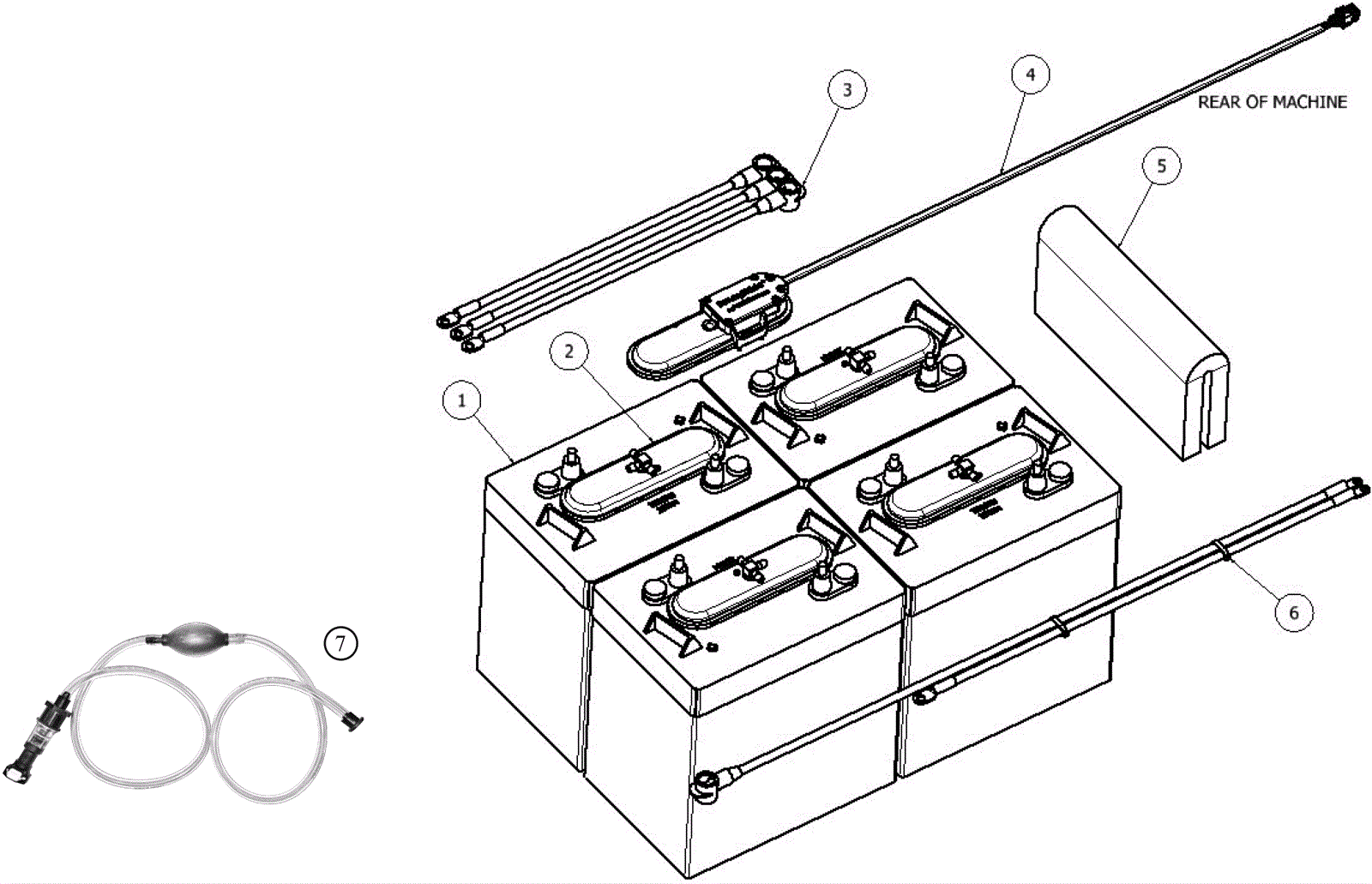

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
(based on machine model) |
|
1b |
162-0043
|
6V 224Ah AGM battery (Group GC2) (SNSR) |
4 |
(optional) (based on machine model) |
|
2 |
206-4829
|
Hydrolink battery cap |
3 |
(not used with maintenance free batteries or machines ordered without optional BatteryShield) |
|
3 |
206-3238
|
Battery cable |
3 |
|
|
4 |
206-3240
|
Battery shield sensor assembly |
1 |
(not used with maintenance free batteries or machines ordered without optional BatteryShield) |
|
5 |
206-3237
|
Battery spacer |
1 |
|
|
6 |
206-3239
|
Battery harness |
1 |
|
|
7 |
206-3242
|
Hydrolink pump assembly |
1 |
|
|
N/S |
206-3814
|
Hydrolink tube assembly with pump |
1 |
|
|
