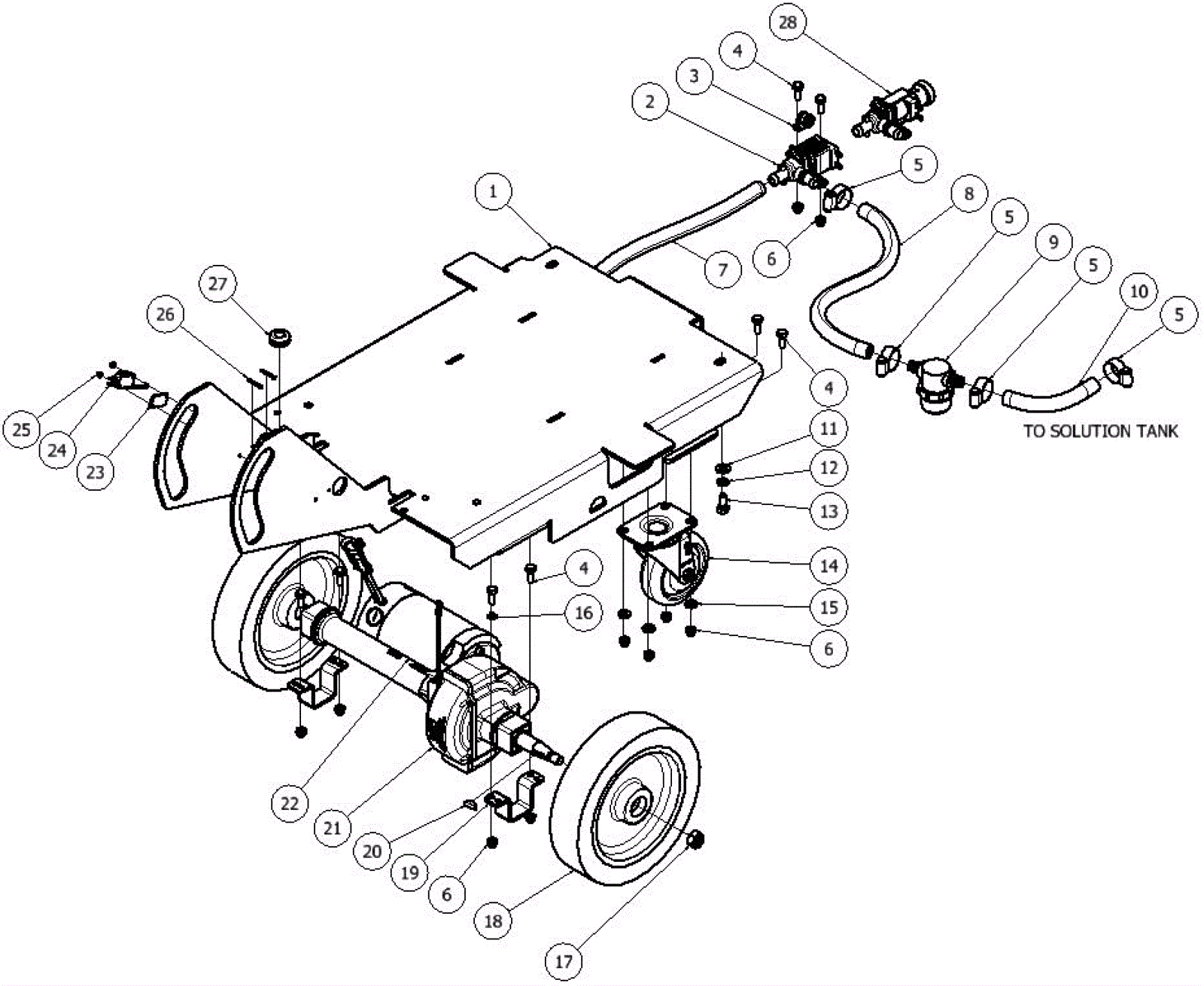

Frame Assembly

#PartDescription ReqNotesAvailability
1 206-3190 Frame 1
2 206-4025 24V solenoid valve 1 (after SN 113190)
3 206-3205 P clamp 1
4 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 14
5 206-0080 Hose clamp 4
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated 14
7 206-0157 Clear hose (sold by the inch) 20 inch
8 206-0157 Clear hose (sold by the inch) 14 inch
9 206-3192 Screen filter 1
10 206-0157 Clear hose (sold by the inch) 5 inch
11 206-5233 Washer 5/16 x .040 flat 4
12 999-0553 Washer 5/16 medium split lock stainless steel 4
13 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 4
14 206-3202 4 inch swivel caster 2
15 206-4820 Washer 8
16 999-1024 Washer 1/4 external tooth lock stainless steel 1
17 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel 2
18 206-3204 Wheel urethane 2
19 206-3193 Transaxle retaining bracket 2
20 206-3203 Square keyway 2
21 206-3201 24V transaxle 1
22 206-4048 Motor 1
23 206-3396 Mounting plate 1
24 206-3222 Snap switch 1
25 999-0295 Nut 4-40 nylon insert lock stainless steel 2
26 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
27 206-4023 Grommet 1
28 206-3191 24V solution solenoid valve 1 (before SN 113191)
N/S 206-4024 Brush kit 1
