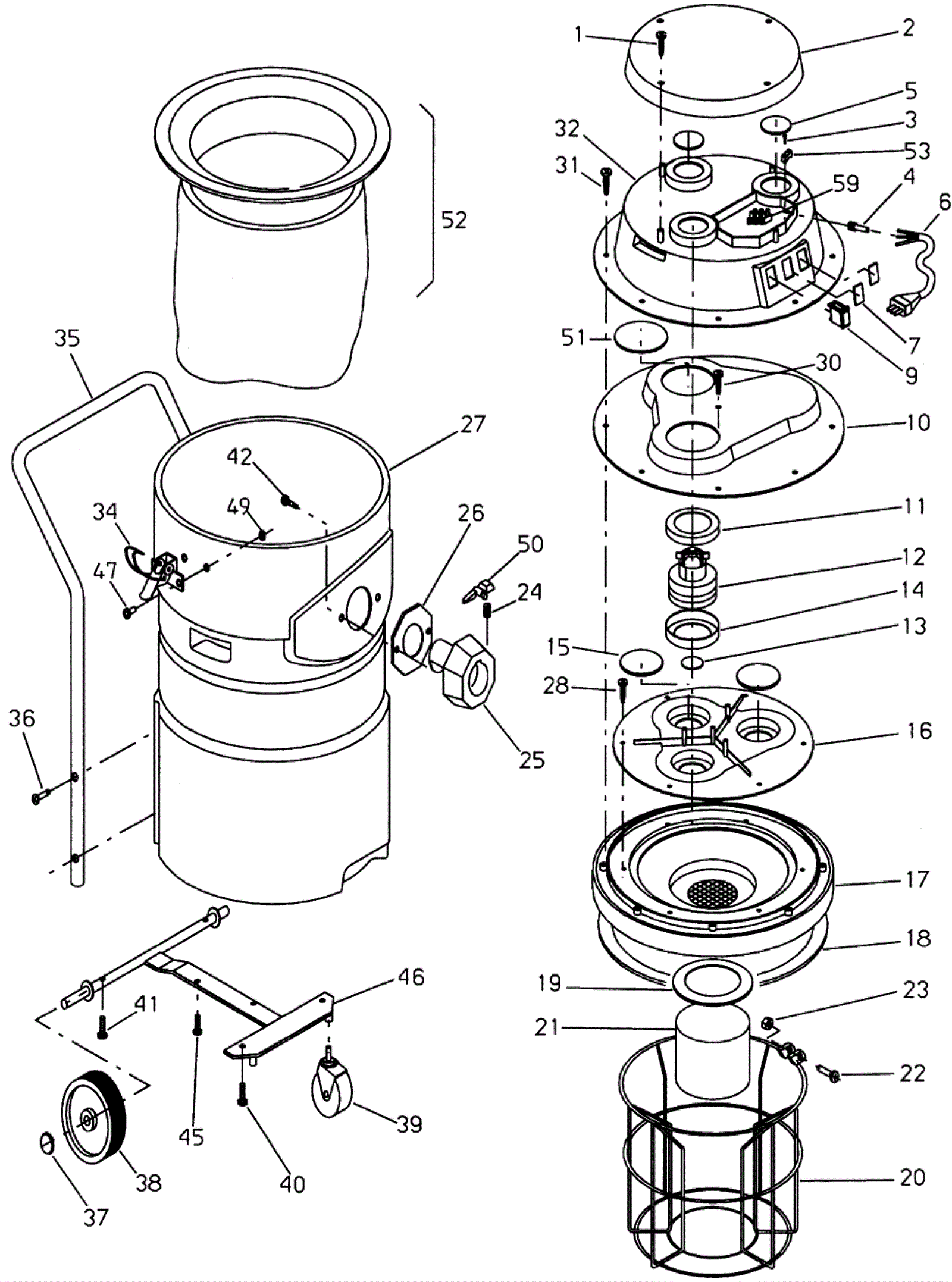

POLY 12 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-1839 Screw Call for price 4 usually ships 5-15 days
2 206-1840 Cover Call for price 1 usually ships 5-15 days
3 206-1841 Screw Call for price 2 usually ships 5-15 days
4 206-1818 Strain relief Call for price 1 usually ships 5-15 days
5 206-1842 Insert Call for price 2 usually ships 5-15 days
6 206-1843 Cord assembly Call for price 1 usually ships 5-15 days
7 206-1844 Switch Call for price 2 usually ships 5-15 days
9 206-1817 Switch Call for price 1 usually ships 5-15 days
10 206-1845 Adaptor Call for price 1 usually ships 5-15 days
11 206-1824 Lower motor gasket Call for price 1 usually ships 5-15 days
12a 206-4010 115V motor (OBSOLETE) $265.90 1 usually ships 5-15 days
12b 206-1823 230V vacuum motor Call for price 1 usually ships 5-15 days
12c 206-4011 Brush (OBSOLETE) $17.62 2 usually ships 5-15 days
13 206-1846 Vac motor spacer Call for price 1 usually ships 5-15 days
14 206-1824 Lower motor gasket Call for price 1 usually ships 5-15 days
15 206-1847 Insert Call for price 2 usually ships 5-15 days
16 206-1848 Middle adaptor Call for price 1 usually ships 5-15 days
17 206-1849 Lower adaptor Call for price 1 usually ships 5-15 days
18 206-3029 Lower adapter gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-1850 Float gasket Call for price 1 usually ships 5-15 days
20 206-1851 Cage Call for price 1 usually ships 5-15 days
21 206-1828 Shut off float Call for price 1 usually ships 5-15 days
22 206-0355 Screw M5x45 (OBSOLETE) Call for price 1 usually ships 1-5 days
23 206-1829 Float cage nut Call for price 1 usually ships 5-15 days
24 206-1117 Spring (OBSOLETE) Call for price 1 usually ships 1-5 days
25 206-1837 Tank coupler Call for price 1 usually ships 5-15 days
26 206-1114 Plastic cover gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
27 206-1852 Vacuum tank Call for price 1 usually ships 5-15 days
28 206-1853 Screw Call for price 6 usually ships 5-15 days
30 206-1854 Screw Call for price 4 usually ships 5-15 days
31 206-1854 Screw Call for price 8 usually ships 5-15 days
32 206-1856 Motor cover Call for price 1 usually ships 5-15 days
34 206-1834 Lid clamp Call for price 2 usually ships 5-15 days
35 206-1857 Handle Call for price 1 usually ships 5-15 days
36 206-1858 Screw Call for price 4 usually ships 5-15 days
37 206-1859 Wheel shaft cap Call for price 2 usually ships 5-15 days
38 206-1860 Wheel Call for price 2 usually ships 5-15 days
39 206-1861 Caster Call for price 2 usually ships 5-15 days
40 206-1862 Screw Call for price 2 usually ships 5-15 days
41 206-1858 Screw Call for price 2 usually ships 5-15 days
42 206-1864 Screw Call for price 2 usually ships 5-15 days
45 206-1865 Screw Call for price 2 usually ships 5-15 days
46 206-1866 Base carriage Call for price 1 usually ships 5-15 days
47 206-1867 Rivet Call for price 4 usually ships 5-15 days
49 206-1836 Washer Call for price 4 usually ships 5-15 days
50 206-1116 Pawl (OBSOLETE) Call for price 1 usually ships 1-5 days
51 206-1868 Plug Call for price 1 usually ships 5-15 days
52 206-0815 Adapter and bag assembly (OBSOLETE) $122.08 1 usually ships 1-5 days
53 206-1869 Cord clamp Call for price 1 usually ships 5-15 days
54 206-1870 Terminal board Call for price 1 usually ships 5-15 days
