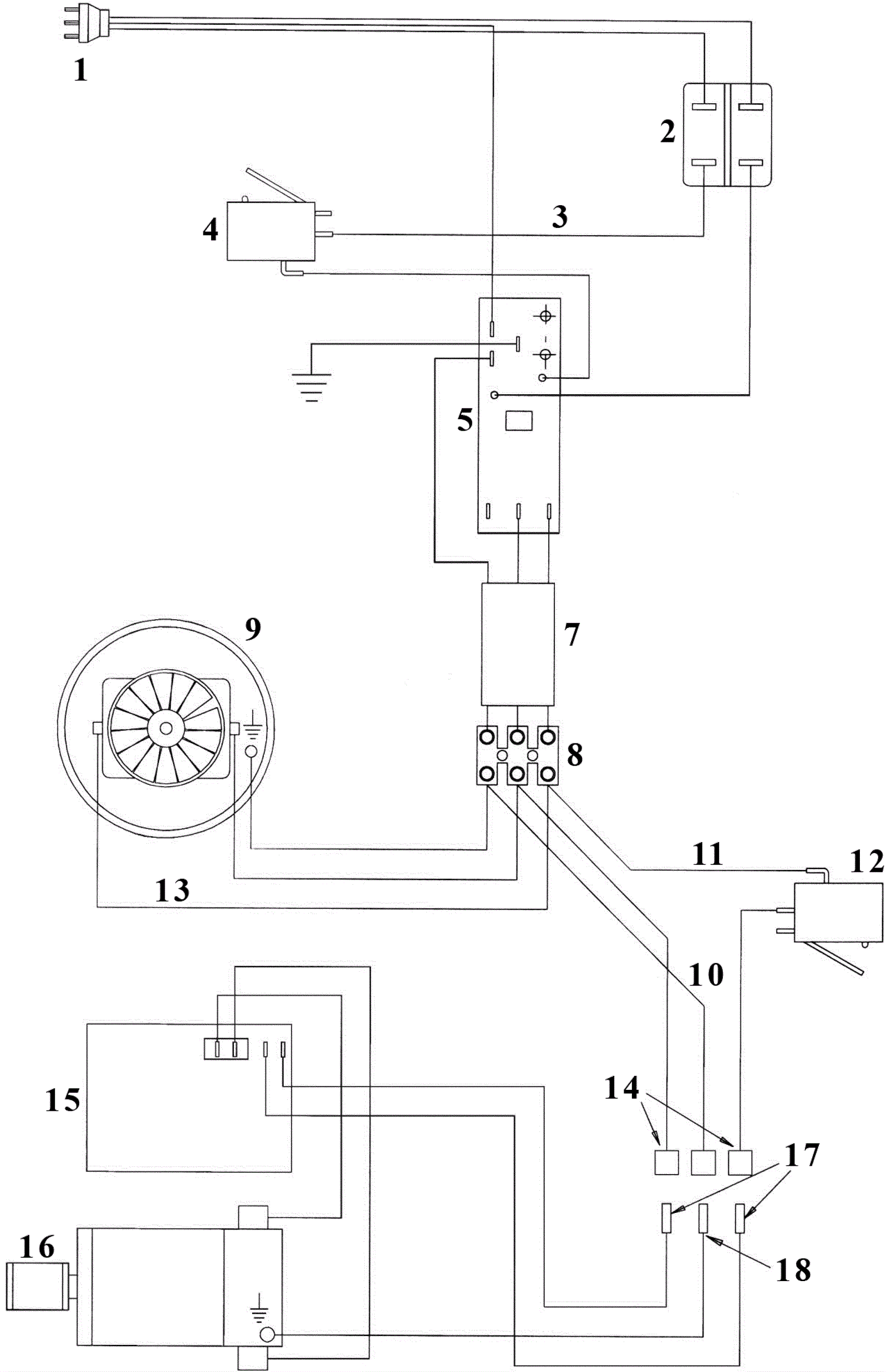

Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 206-0013 Cord (OBSOLETE) $98.60 1 usually ships 1-5 days
2 206-0001 Main switch (OBSOLETE) $21.62 1 usually ships 1-5 days
3 206-0374 Lead assembly (OBSOLETE) $2.21 1 usually ships 1-5 days
4 206-0273 Microswitch (OBSOLETE) Call for price 1 usually ships 1-5 days
5 206-0276 Paper bag control card (OBSOLETE) $135.86 1 usually ships 1-5 days
7 206-0375 Electric cable assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
8 206-0376 Terminal board mannut (OBSOLETE) Call for price 1 usually ships 1-5 days
9 206-0272 Vac motor 115v (OBSOLETE) Call for price 1 usually ships 1-5 days
10 206-0377 Grounding lead (OBSOLETE) Call for price 2 usually ships 1-5 days
11 206-0378 Microswitch electric lead assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
12 206-0273 Microswitch (OBSOLETE) Call for price 1 usually ships 1-5 days
13 206-0379 Vac motor electric lead assembly (OBSOLETE) Call for price 2 usually ships 1-5 days
14 206-0380 Contact plug (OBSOLETE) $28.43 1 usually ships 1-5 days
15a 206-0333 Electronic card 115v 14in (OBSOLETE) Call for price 1 usually ships 1-5 days
15b 206-0381 Electric card 115v 18in (OBSOLETE) Call for price 1 usually ships 1-5 days
16a 206-3010 Brush motor for Genius 14 inch (OBSOLETE) $568.65 1 usually ships 1-5 days
16b 206-3009 Brush motor for genius 18 inch (OBSOLETE) $155.81 1 usually ships 1-5 days
17 206-0329 Wire on swivel neck (OBSOLETE) $11.11 1 usually ships 1-5 days
18 206-0371 Enclosing cover spring (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-0382 Antistatic cable (OBSOLETE) Call for price 1 usually ships 1-5 days
