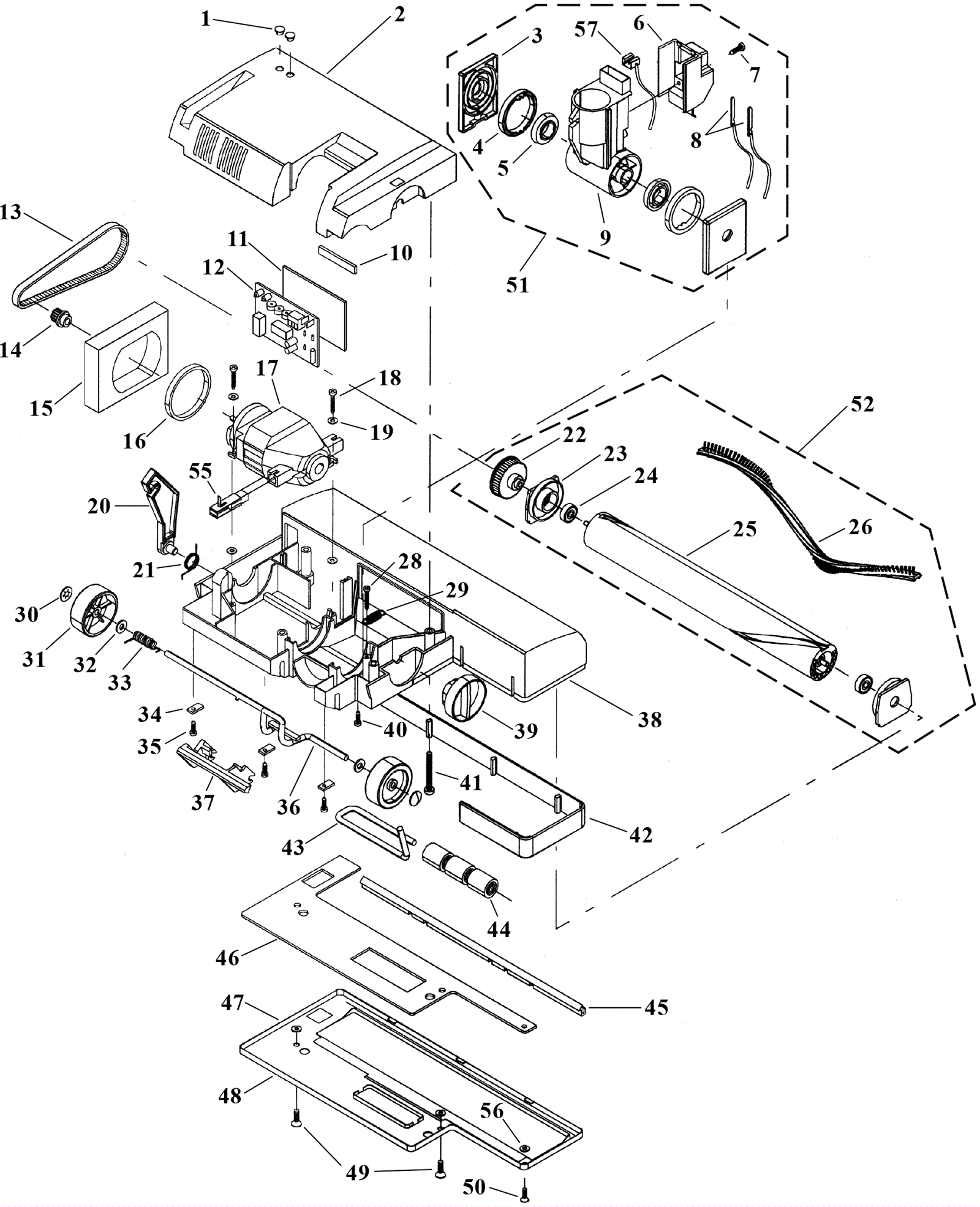

# | Part | Description | Price | Req | Notes | Availability |
1 |
206-0277
|
Lens (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
2 |
206-0284
|
Base cover (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
3 |
206-0317
|
Swivel neck support wiring (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
4 |
206-0306
|
Bushing (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
5 |
206-0326
|
Bushing (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
6 |
206-0327
|
Joint cover (OBSOLETE) |
$8.27
|
1 |
|
usually ships 1-5 days |
7 |
206-0328
|
Screw 3.9 x 16 self threading (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
8 |
206-0329
|
Wire on swivel neck (OBSOLETE) |
$11.11
|
1 |
|
usually ships 1-5 days |
9 |
206-0330
|
Swivel neck (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
10 |
206-0331
|
Felt seal (OBSOLETE) |
$1.62
|
2 |
|
usually ships 1-5 days |
11 |
206-0332
|
Electronic card protection (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
12 |
206-0333
|
Electronic card 115v 14in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
13 |
206-3006
|
Belt |
$53.12
|
1 |
|
usually ships 5-15 days |
14 |
206-0334
|
Pulley (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
15 |
206-0335
|
Filter (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
16 |
206-0336
|
Gasket (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
17a |
206-3010
|
Brush motor for Genius 14 inch (OBSOLETE) |
$568.65
|
1 |
|
usually ships 1-5 days |
17b |
206-3009
|
Brush motor for genius 18 inch (OBSOLETE) |
$155.81
|
1 |
|
usually ships 1-5 days |
18 |
206-0337
|
Screw 3, 9 x 19 self threading (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
19 |
206-0338
|
Washer D4 (OBSOLETE) |
$2.03
|
4 |
|
usually ships 1-5 days |
20 |
206-0339
|
Support lever (OBSOLETE) |
$10.39
|
1 |
|
usually ships 1-5 days |
21 |
206-0340
|
Spring (OBSOLETE) |
$6.98
|
1 |
|
usually ships 1-5 days |
22 |
206-0341
|
Brush pulley (OBSOLETE) |
$94.48
|
1 |
|
usually ships 1-5 days |
23 |
206-0048
|
Brush support (OBSOLETE) |
$70.29
|
2 |
|
usually ships 1-5 days |
24 |
206-0049
|
Bearing (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
25a |
206-0342
|
Brush core with shaft 14in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
25b |
206-0343
|
Brush core with shaft 18in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
26a |
206-3003
|
Brush strip 14in (OBSOLETE) |
$13.99
|
1 |
|
usually ships 1-5 days |
26b |
206-0344
|
Brush strip 18in (OBSOLETE) |
$27.99
|
1 |
|
usually ships 1-5 days |
28 |
206-0345
|
Screw 3.5 x 25 self threading (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
29 |
206-0346
|
Spring (OBSOLETE) |
$3.74
|
1 |
|
usually ships 1-5 days |
30 |
206-0347
|
Retainer (OBSOLETE) |
$2.21
|
2 |
|
usually ships 1-5 days |
31 |
206-0348
|
Wheel (OBSOLETE) |
$5.11
|
2 |
|
usually ships 1-5 days |
32 |
206-0349
|
Washer D6 (OBSOLETE) |
$1.62
|
2 |
|
usually ships 1-5 days |
33 |
206-3004
|
Spring wheel axle L (OBSOLETE) |
$8.67
|
1 |
|
usually ships 1-5 days |
34 |
206-0313
|
Latch (OBSOLETE) |
$2.03
|
3 |
|
usually ships 1-5 days |
35 |
206-0290
|
Screw 3.9 x 13 self threading (OBSOLETE) |
$2.18
|
3 |
|
usually ships 1-5 days |
36 |
206-0350
|
Wheel axle (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
37 |
206-0351
|
Foot pedal (OBSOLETE) |
$28.27
|
1 |
|
usually ships 1-5 days |
38a |
206-0352
|
Chassis/housing, brush 14in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
38b |
206-0353
|
Chassis/housing, brush 18in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
39 |
206-0354
|
Brush height adjustment knob (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
40 |
206-0290
|
Screw 3.9 x 13 self threading (OBSOLETE) |
$2.18
|
2 |
|
usually ships 1-5 days |
41 |
206-0355
|
Screw M5x45 (OBSOLETE) |
Call for price
|
4 |
|
usually ships 1-5 days |
42a |
206-0356
|
Bumper 14in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
42b |
206-0357
|
Bumper 18in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
43 |
206-0358
|
Wheel axle (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
44 |
206-0359
|
Brush adjustment wheels (OBSOLETE) |
$3.74
|
3 |
|
usually ships 1-5 days |
45 |
206-0360
|
Gasket (OBSOLETE) |
$7.93
|
1 |
|
usually ships 5-15 days |
46 |
206-0361
|
Gasket (OBSOLETE) |
$9.23
|
1 |
|
usually ships 5-15 days |
47 |
206-0362
|
Washer (OBSOLETE) |
$2.74
|
2 |
|
usually ships 1-5 days |
48a |
206-0363
|
Shoe pick-up 14in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
48b |
206-0364
|
Shoe pick-up 18in (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
49 |
206-0365
|
Screw M5x12 (OBSOLETE) |
Call for price
|
2 |
|
usually ships 1-5 days |
50 |
206-0366
|
Screw M4x10 (OBSOLETE) |
$5.80
|
1 |
|
usually ships 1-5 days |
51 |
206-0367
|
Complete joint with support (OBSOLETE) |
Call for price
|
1 |
(includes 3-9, 57) |
usually ships 1-5 days |
52 |
206-0368
|
Brush complete 14in (OBSOLETE) |
$568.65
|
1 |
(includes 22-26) |
usually ships 1-5 days |
55 |
206-0369
|
Carbon brush (OBSOLETE) |
$35.42
|
2 |
|
usually ships 1-5 days |
56 |
206-0370
|
Washer (OBSOLETE) |
$2.36
|
1 |
|
usually ships 1-5 days |
57 |
206-0371
|
Enclosing cover spring (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
