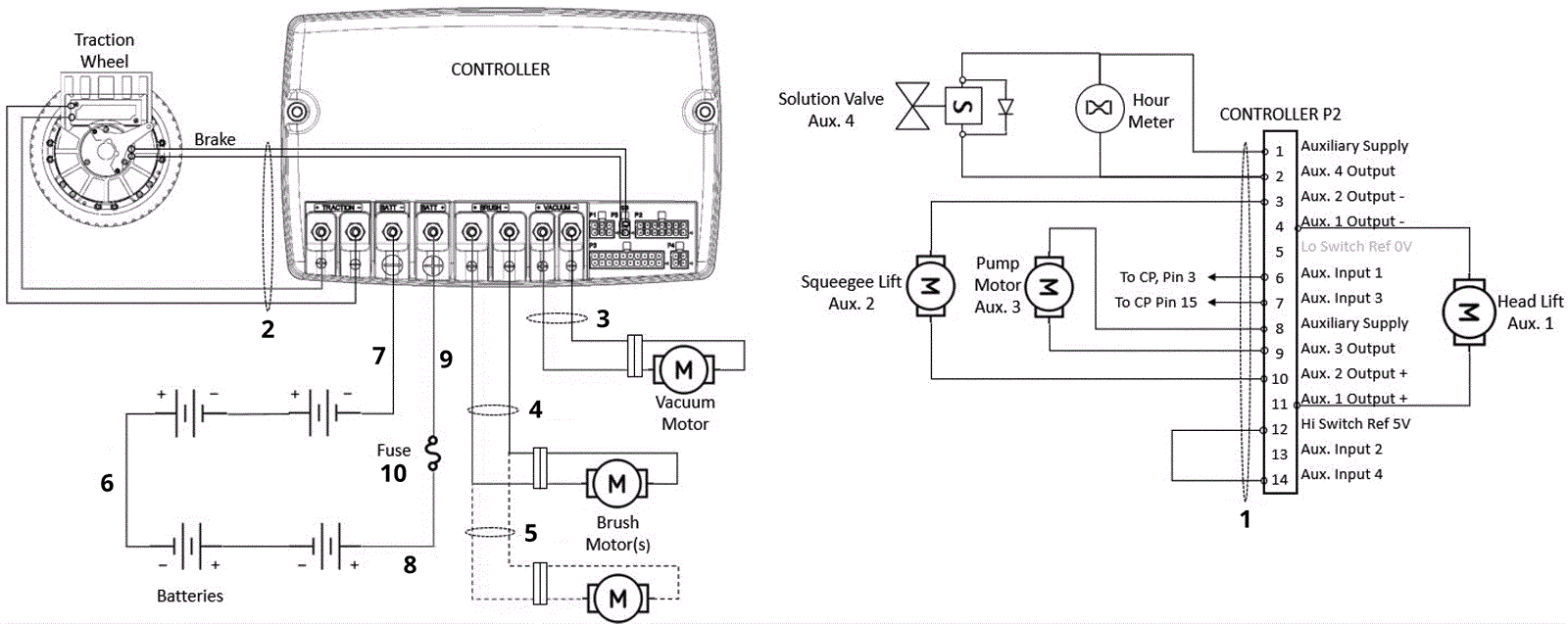

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-4880
|
Harness signal aux |
1 |
|
|
2 |
206-1504
|
Flexible drive harness with fitting |
1 |
|
|
3 |
206-4881
|
Vacuum motor harness |
1 |
|
|
4 |
206-4882
|
Left hand scrub motor harness |
1 |
|
|
5 |
206-4883
|
Right hand scrub motor harness |
1 |
|
|
6 |
206-4884
|
4awg battery connection harness |
1 |
|
|
7 |
206-4885
|
4awg battery connection harness (black) |
1 |
|
|
8 |
206-6030
|
Battery connection harness |
1 |
|
|
9 |
206-4886
|
4awg battery connection harness (red) |
1 |
|
|
10 |
206-6028
|
32V 100amp fuse |
1 |
|
|
N/S |
206-6029
|
Fuse housing |
1 |
|
|
