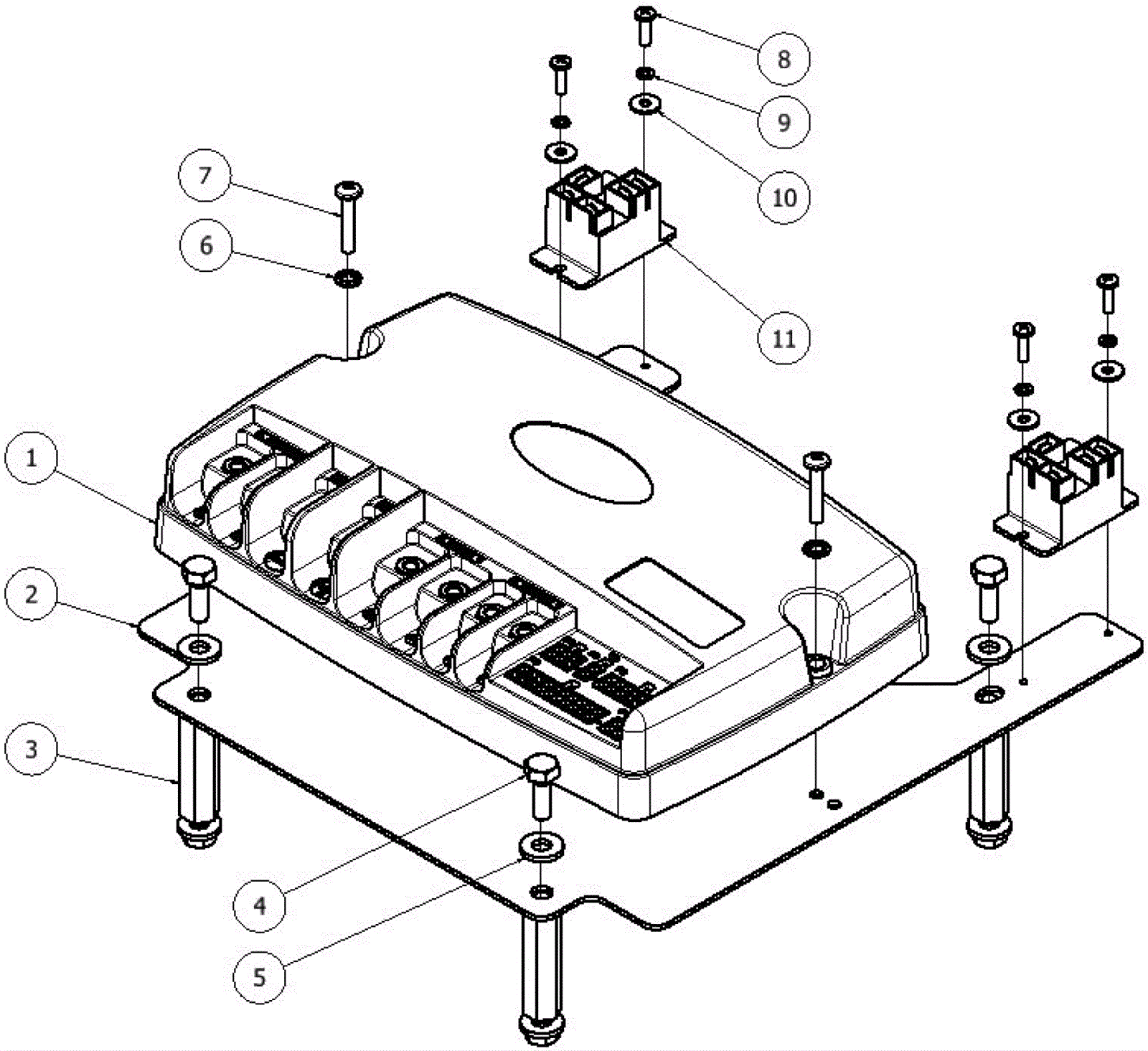

Controller Assembly

#PartDescription ReqNotesAvailability
1a 206-4878 Disk rider controller 1 (dependent on machine model)
1b 206-4879 Orbital rider controller 1 (dependent on machine model)
2 206-1633 Electronics panel 1
3 206-1634 Electronics panel spacer 4
4 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8
5 206-4820 Washer 8
6 999-1026 Washer #10 internal lock stainless steel 2
7 999-9067 Screw 10-32 x 1 pan head phillips zinc plated 2
8 999-1021 Screw 6-32 x 1/2 pan head black zinc metal 4 (only used with ScrubSmart telemetry system)
9 206-5387 Washer 4 (only used with ScrubSmart telemetry system)
10 999-1158 Washer #6 flat stainless steel 4 (only used with ScrubSmart telemetry system)
11 206-3419 24V relay 2 (only used with ScrubSmart telemetry system)
