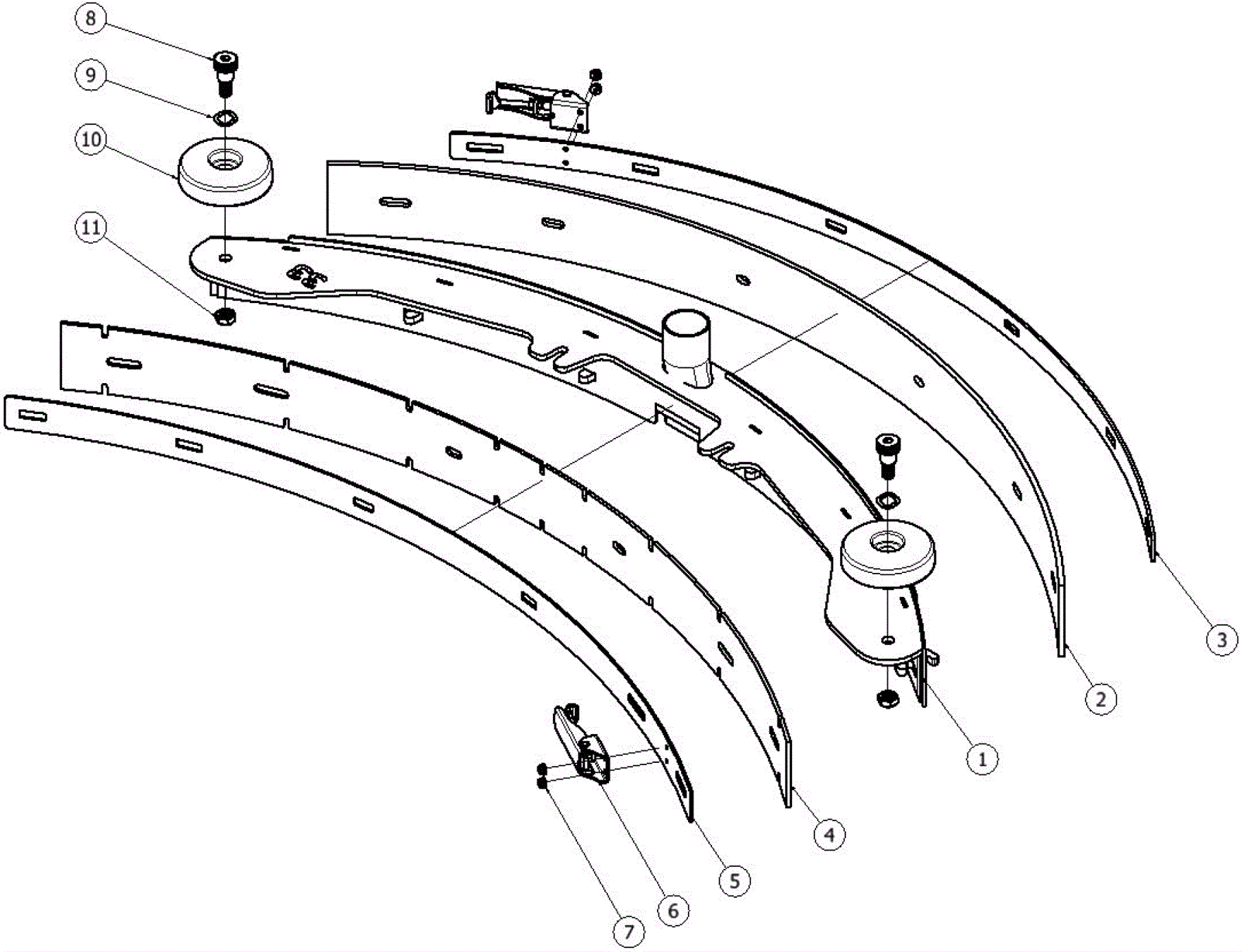

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1624
|
33 inch aluminum squeegee frame |
1 |
|
|
2a |
206-1625
|
33 inch squeegee blade rear linatex |
1 |
|
|
2b |
206-1626
|
33 inch squeegee blade rear urethane |
1 |
(option) |
|
3 |
206-1627
|
33 inch rear squeegee retainer |
1 |
|
|
4a |
206-1628
|
33 inch squeegee blade front linard |
1 |
|
|
4b |
206-1629
|
33 inch squeegee blade front urethane |
1 |
(option) |
|
5 |
206-1630
|
33 inch front squeegee retainer |
1 |
|
|
6 |
206-3276
|
Latch |
2 |
|
|
7 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
4 |
|
|
8 |
206-3275
|
Screw 1/2 x 1/2 shoulder |
2 |
|
|
9 |
206-3310
|
Washer 1/2 wave |
2 |
|
|
10 |
206-3274
|
Guide wheel |
2 |
|
|
11 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
