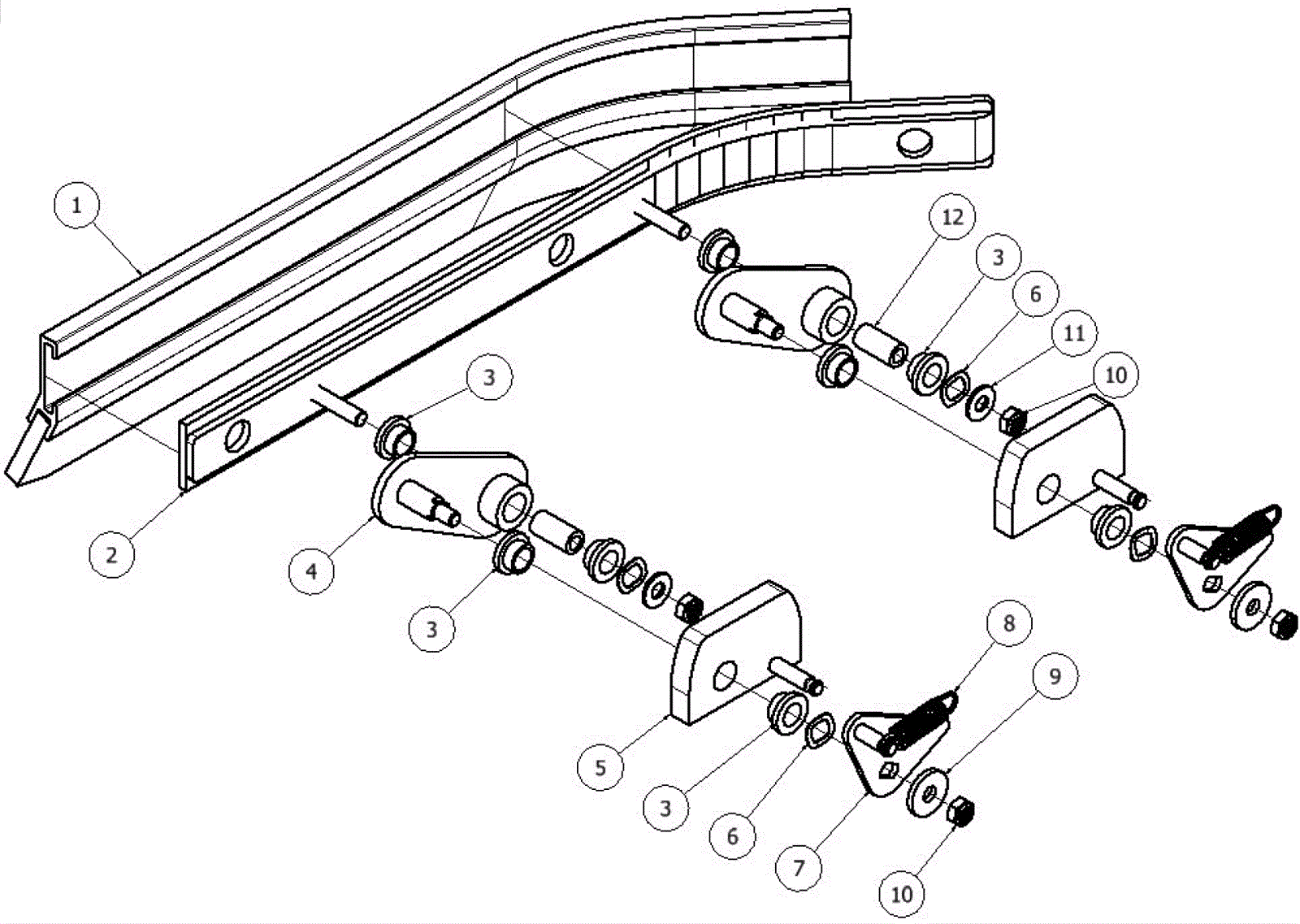

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
206-1604
|
Side squeegee blade |
1 |
|
|
1b |
206-1605
|
Side squeegee blade urethane |
1 |
(option) |
|
2 |
206-1606
|
Squeegee brace |
1 |
|
|
3 |
206-3301
|
Flange bushing |
8 |
|
|
4 |
206-1607
|
Lift link |
2 |
|
|
5a |
206-1608
|
Right hand mounting block |
2 |
|
|
5b |
206-1609
|
Left hand mounting block |
2 |
|
|
6 |
206-3310
|
Washer 1/2 wave |
4 |
|
|
7a |
206-1610
|
Right hand spring link |
2 |
|
|
7b |
206-1611
|
Left hand spring link |
2 |
|
|
8 |
206-1612
|
Extension spring |
2 |
|
|
9 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
10 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
11 |
206-5233
|
Washer 5/16 x .040 flat |
2 |
|
|
12 |
206-1613
|
Lift shaft |
2 |
|
|
