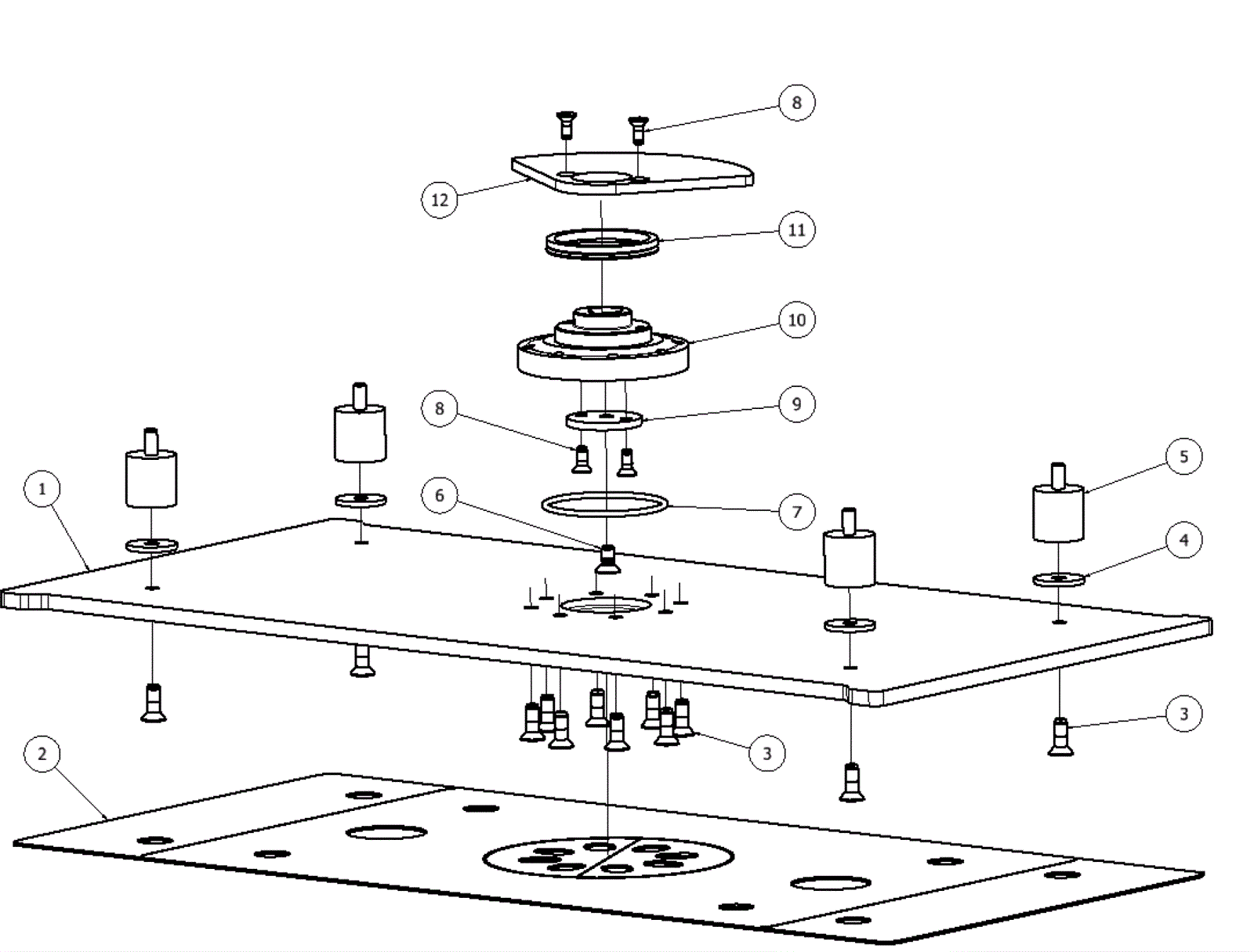

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3358
|
28 inch orbital plate |
1 |
|
|
2 |
206-3359
|
Mightylok pad |
1 |
|
|
3 |
999-1826
|
Screw 5/16-18 x 7/8 flat head socket stainless steel |
12 |
|
|
4 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
5 |
206-3366
|
Isolator mount |
4 |
|
|
6 |
206-3368
|
Screw M8 x 16mm flat |
1 |
|
|
7 |
206-3367
|
O ring |
1 |
|
|
8 |
999-1824
|
Screw 1/4-20 x 5/8 flat head socket stainless steel |
4 |
|
|
9 |
206-3363
|
Retaining plate |
1 |
|
|
10 |
N/A
|
Not available |
1 |
(orbital bearing) |
|
11 |
206-5473
|
Bearing seal |
1 |
|
|
12 |
206-3365
|
28 inch balance plate |
1 |
|
|
N/S |
206-4873
|
Pad 14x28 inch stripping (black) (pkg of 5) |
1 |
|
|
N/S |
206-4874
|
Pad 14x28 inch (maroon) (pkg of 5) |
1 |
|
|
N/S |
206-4875
|
Pad 14x28 inch scrub (red) (pkg of 5) |
1 |
|
|
N/S |
206-4876
|
Pad 14x28 inch turf (pkg of 4) |
1 |
|
|
N/S |
206-4877
|
Pad 14x28 inch polishing (white) (pkg of 5) |
1 |
|
|
KIT1 |
206-3357
|
Orbital replacement kit |
1 |
(includes 1-2) |
|
KIT2 |
206-6019
|
Isolator kit |
1 |
(includes 3-5) |
|
KIT3 |
206-3360
|
Bearing replacement kit |
1 |
(includes 6-11) |
|
