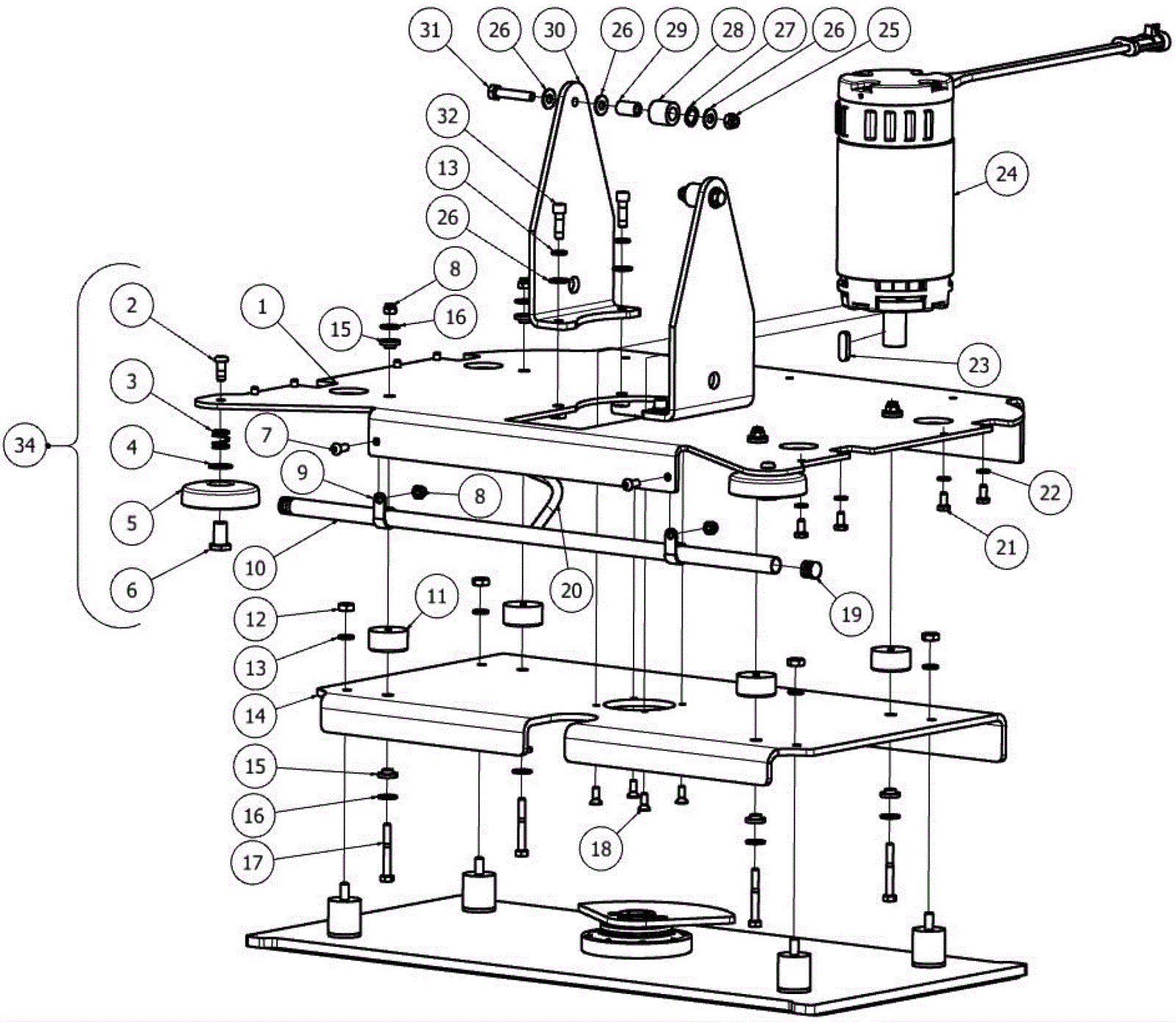

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1603
|
Orbital head mounting bracket |
1 |
|
|
2 |
999-1524
|
Screw 5/16-18 x 3/4 button head socket stainless steel |
2 |
|
|
3 |
206-1598
|
Compression spring |
2 |
|
|
4 |
206-1599
|
Washer 1/2 inch nylon |
2 |
|
|
5 |
206-3274
|
Guide wheel |
2 |
|
|
6 |
206-1600
|
Guide wheel spacer |
2 |
|
|
7 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
2 |
|
|
8 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
9 |
206-3372
|
P clamp |
2 |
|
|
10 |
206-4066
|
Distribution tube |
1 |
|
|
11 |
206-3313
|
Rubber spacer |
4 |
|
|
12 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
13 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
8 |
|
|
14 |
206-3371
|
Motor mounting plate |
1 |
|
|
15 |
206-3373
|
Rubber bushing |
8 |
|
|
16 |
206-3376
|
Washer |
8 |
|
|
17 |
999-0258
|
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
4 |
|
|
18 |
999-1620
|
Screw M6-1 x 20mm flat head socket stainless steel |
4 |
|
|
19 |
206-4042
|
Plug |
2 |
|
|
20 |
206-0099
|
1/4 inch hose (clear) (sold by the inch) |
12 inches |
|
|
21 |
999-1532
|
Screw 1/4-20 x 1/2 hex head stainless steel |
8 |
|
|
22 |
999-0060
|
Washer 1/4 split lock plain finish |
8 |
|
|
23 |
206-3329
|
Square keyway |
1 |
|
|
24 |
206-3320
|
24V brush motor |
1 |
|
|
25 |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
|
|
26 |
206-5233
|
Washer 5/16 x .040 flat |
10 |
|
|
27 |
206-3310
|
Washer 1/2 wave |
2 |
|
|
28 |
206-3319
|
Plastic roller |
2 |
|
|
29 |
206-3315
|
Spacer |
2 |
|
|
30 |
206-1601
|
Support head bracket |
2 |
|
|
31 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
|
32 |
999-1822
|
Screw 5/16-18 x 1 socket cap stainless steel |
4 |
|
|
34 |
206-1602
|
Wheel replacement kit |
1 |
(includes 2-6) |
|
N/S |
206-4039
|
Carbon brush kit |
1 |
|
|
