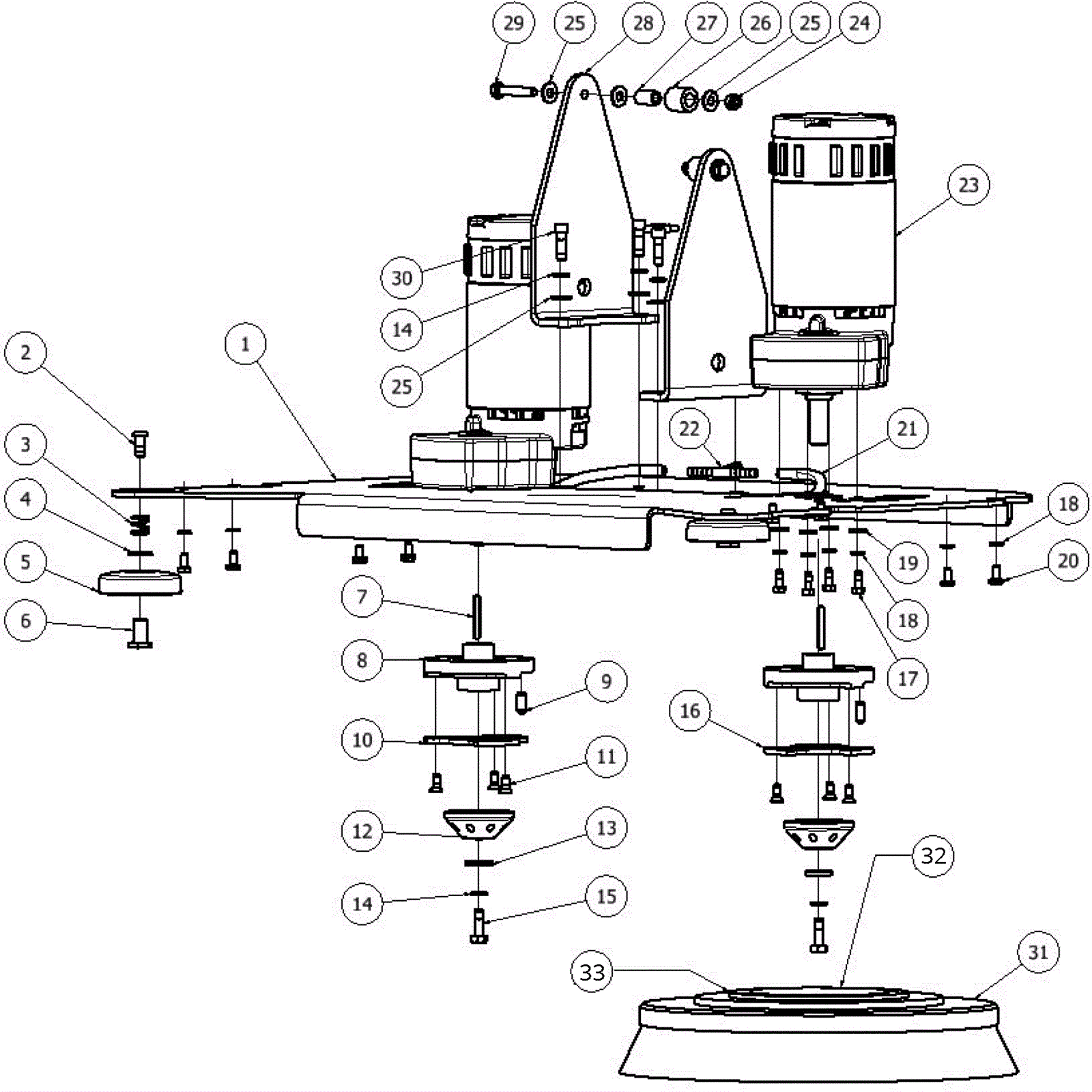

Disk Scrub Head Assembly

#PartDescription ReqNotesAvailability
1 206-1597 28 inch mounting plate 1
2 999-1524 Screw 5/16-18 x 3/4 button head socket stainless steel 2
3 206-1598 Compression spring 2
4 206-1599 Washer 1/2 inch nylon 2
5 206-3274 Guide wheel 2
6 206-1600 Guide wheel spacer 2
7 206-3343 Square keyway 2
8 206-4035 Brush hub 2
9 206-4037 Press-in plunger ball 2
10 206-3316 Left hand driver guide 1
11 999-1824 Screw 1/4-20 x 5/8 flat head socket stainless steel 6
12 206-3344 Plastic pad guide 2
13 999-0024 Washer 5/16 flat stainless steel 2
14 999-0553 Washer 5/16 medium split lock stainless steel 6
15 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
16 206-3337 Right side driver guide 1
17 999-1383 Screw M6-1 x 16mm hex head stainless steel 8
18 999-0060 Washer 1/4 split lock plain finish 16
19 206-4820 Washer 8
20 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 8
21 206-0099 1/4 inch hose (clear) (sold by the inch) 26 inches
22 206-3347 Tee fitting 3
23 206-3351 24V brush gear motor 2
24 999-0593 Nut 5/16-18 hex stainless steel 2
25 206-5233 Washer 5/16 x .040 flat 10
26 206-3319 Plastic roller 2
27 206-3315 Spacer 2
28 206-1601 Support head bracket 2
29 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
30 999-1822 Screw 5/16-18 x 1 socket cap stainless steel 4
31a 206-3762 13 inch polypropylene brush 2
31b 206-3763 13 inch nylon brush 2
32 206-1388 Pad holder 1
33 206-3774 Clutch plate 1
N/S 206-3765 Pad driver 2
N/S 206-1905 14 inch black stripping pad (pkg of 5) 1
N/S 206-1906 14 inch red scrubbing pad (pkg of 5) 1
N/S 206-1907 14 inch white polishing pad (pkg of 5) 1
KIT1 206-1602 Wheel replacement kit 1 (includes 2-6)
