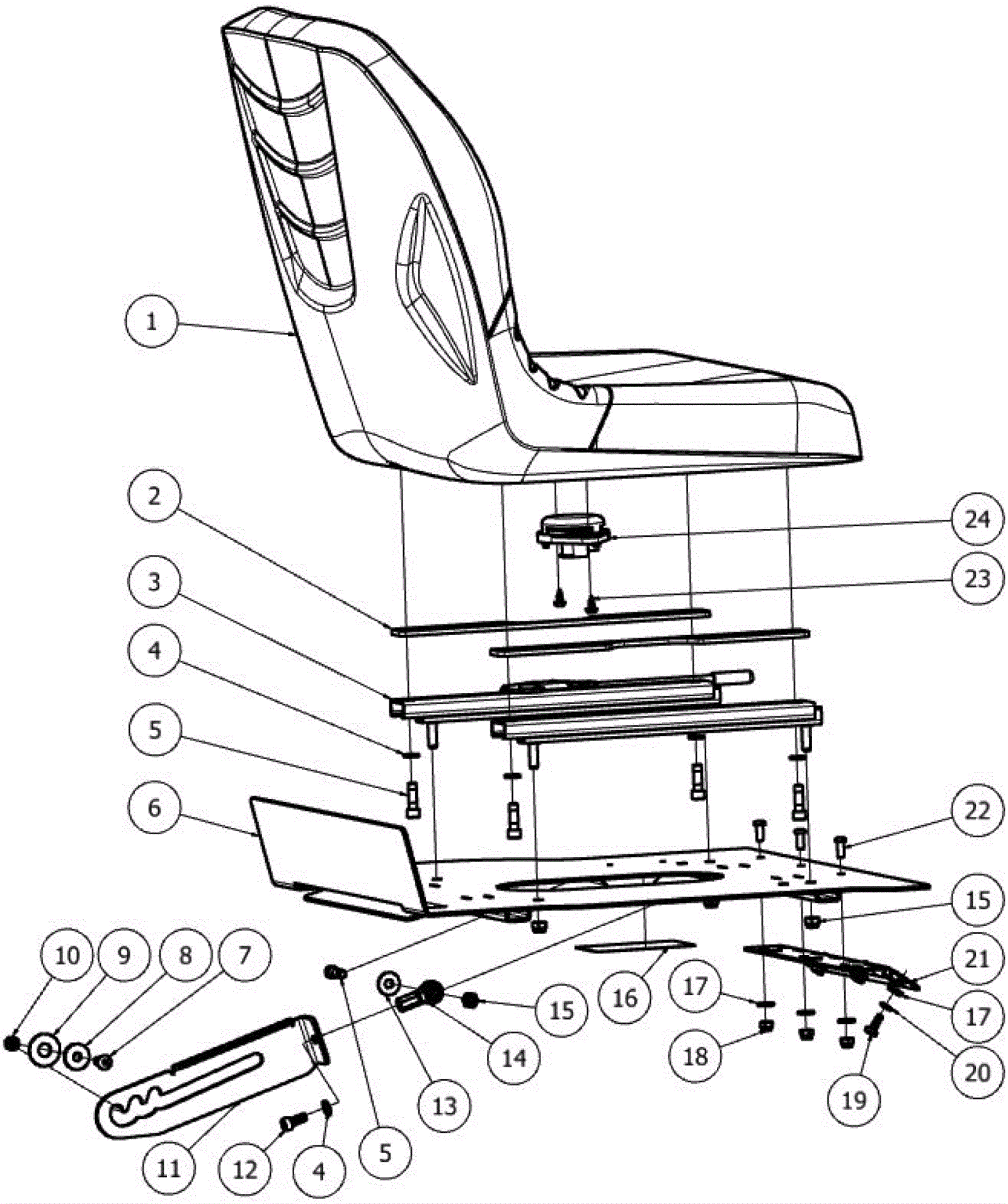

Seat Assembly

#PartDescription ReqNotesAvailability
1 206-1588 Seat 1
2 206-1589 Seat spacer 2
3 206-1590 Seat adjustment rail 1
4 999-0553 Washer 5/16 medium split lock stainless steel 5
5 999-1822 Screw 5/16-18 x 1 socket cap stainless steel 5
6 206-1591 Seat support bracket 1
7 999-1524 Screw 5/16-18 x 3/4 button head socket stainless steel 1
8 999-0024 Washer 5/16 flat stainless steel 1
9 206-3095 Washer thrust 1
10 206-3431 Spacer 1
11 206-1592 Seat cover stand 1
12 206-1593 Screw 5/16-24 x 5/8 socket head 1
13 999-0024 Washer 5/16 flat stainless steel 1
14 206-3382 Rod end bearing 1
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel 5
16 206-3213 Battery instruction decal 1
17 206-4820 Washer 6
18 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
19 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 3
20 999-0060 Washer 1/4 split lock plain finish 3
21 206-1559 Tank hinge 1
22 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish 3
23 206-1904 Screw M6.3x13 pan head zinc tapping 2 (after SN 133035)
24 206-1594 Seat switch 1
N/S 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 4 (before SN 122392)
N/S 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc 2 (before SN 133036)
N/S 206-1595 Seat switch spacer 1 (before SN 122392) (included with KIT1)
KIT1 206-1596 Seat switch kit 1 (includes 24)
