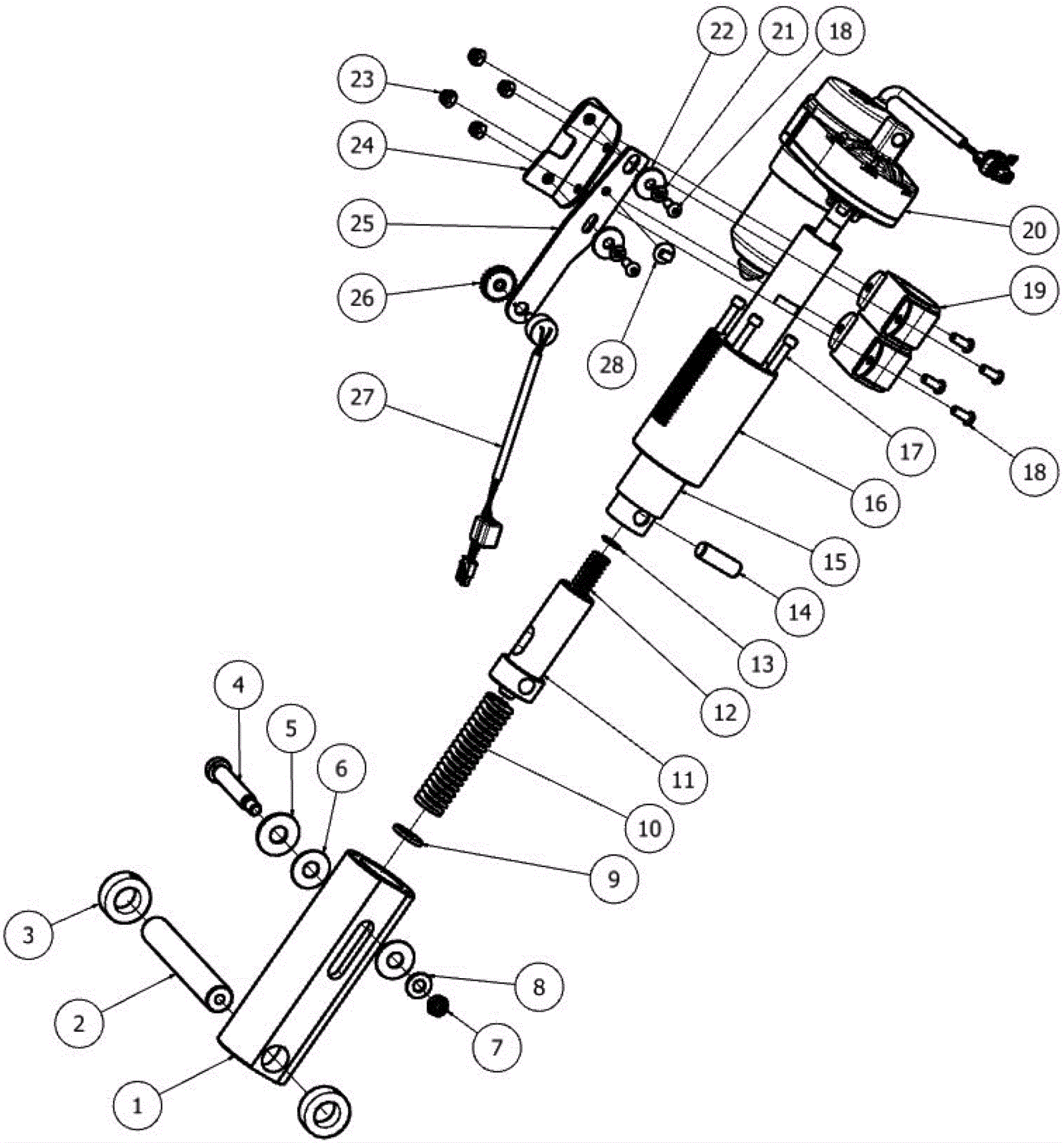

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1569
|
Cylinder spring housing |
1 |
|
|
2 |
206-1570
|
Lift head shaft |
1 |
|
|
3 |
206-1571
|
Shaft collar |
2 |
|
|
4 |
206-1572
|
Screw 1/2 x 2 1/2 inch shoulder |
1 |
|
|
5 |
999-1416
|
Washer 7/16 flat stainless steel |
1 |
|
|
6 |
206-3095
|
Washer thrust |
2 |
|
|
7 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
8 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
9 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
10 |
206-1573
|
Compression spring |
1 |
|
|
11 |
206-1574
|
Actuator shaft adapter |
1 |
|
|
12 |
206-1575
|
Compression spring |
1 |
|
|
13 |
206-1576
|
Internal retaining ring |
1 |
|
|
14 |
206-1577
|
Dowel pin |
1 |
|
|
15 |
206-1900
|
35mm plain plastic bushing |
2 |
|
|
16 |
206-1578
|
Spring cap |
1 |
|
|
17 |
206-1579
|
Screw 1/4-20 x 5 socket head |
4 |
|
|
18 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
4 |
|
|
19 |
206-1336
|
U-shaped clamp |
2 |
|
|
20 |
206-1580
|
24V actuator |
1 |
|
|
21 |
999-0060
|
Washer 1/4 split lock plain finish |
8 |
(after SN 129536) |
|
22 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
(after SN 129536) |
|
23 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
24a |
206-1901
|
Bracket mounting clamp |
1 |
(after SN 129536) |
|
24b |
206-1581
|
Mounting clamp bracket |
1 |
(before SN 129537) |
|
25a |
206-1902
|
Bracket mounting sensor |
1 |
(after SN 129536) |
|
25b |
206-1582
|
Potentiometer mounting bracket |
1 |
(before SN 129537) |
|
26 |
206-1583
|
Gear |
1 |
|
|
27 |
206-1584
|
Rotary sensor |
1 |
|
|
28 |
206-1497
|
Wire mount |
1 |
(after SN 129536) |
|
N/S |
206-4820
|
Washer |
2 |
(before SN 129537) |
|
KIT1 |
206-1903
|
Head actuator kit |
1 |
(includes 1-25) |
|
