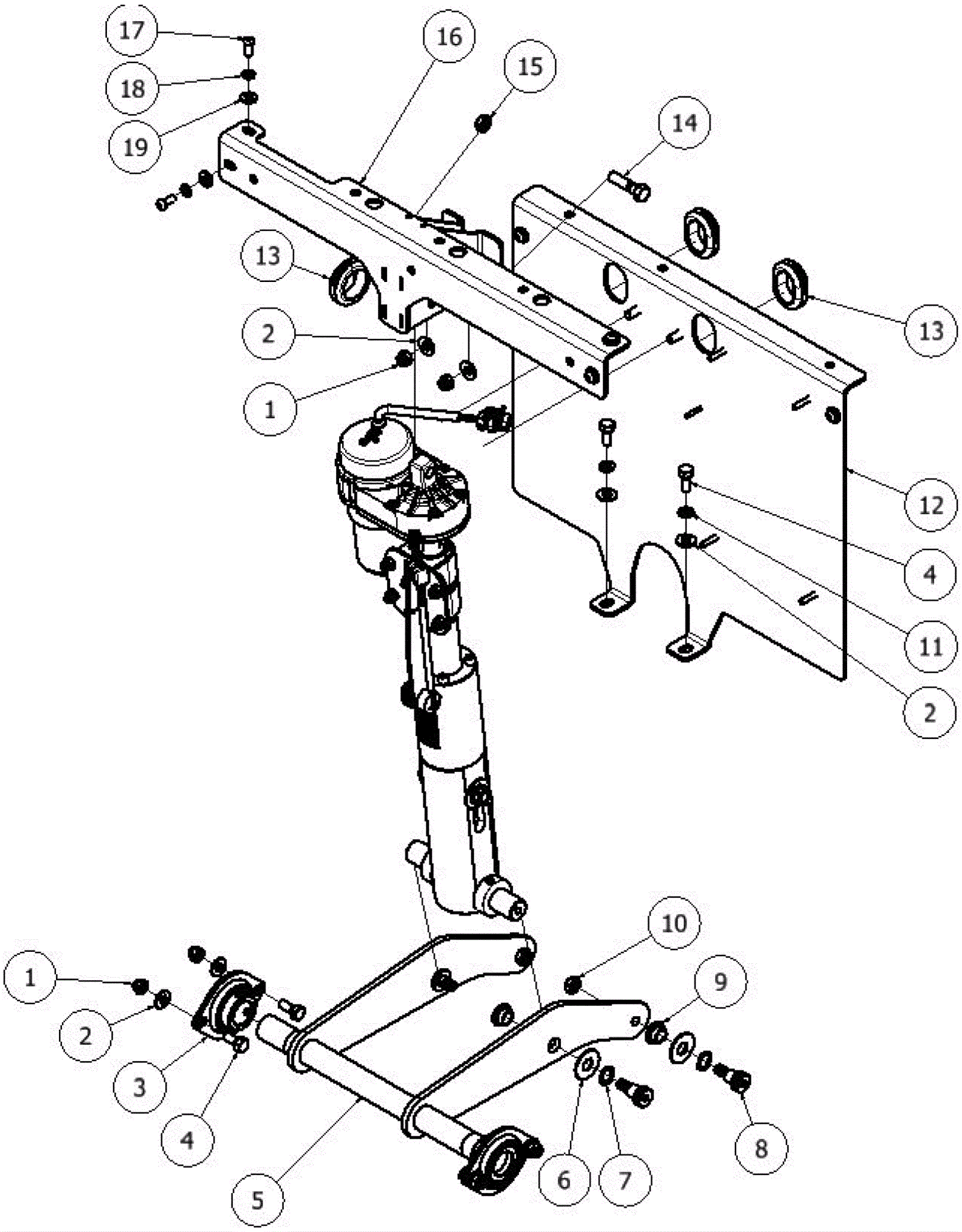

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
2 |
206-5233
|
Washer 5/16 x .040 flat |
8 |
|
|
3 |
206-1565
|
Flange bolt bearing |
2 |
|
|
4 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
6 |
|
|
5 |
206-1566
|
Head lift shaft |
1 |
|
|
6 |
206-3095
|
Washer thrust |
4 |
|
|
7 |
206-3310
|
Washer 1/2 wave |
4 |
|
|
8 |
206-3275
|
Screw 1/2 x 1/2 shoulder |
4 |
|
|
9 |
206-3301
|
Flange bushing |
4 |
|
|
10 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
3 |
|
|
11 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
12 |
206-1567
|
Actuator support bracket |
1 |
|
|
13 |
206-1498
|
Grommet |
4 |
|
|
14 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
1 |
|
|
15 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
16 |
206-1568
|
Support brace |
1 |
|
|
17 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
6 |
|
|
18 |
999-0060
|
Washer 1/4 split lock plain finish |
6 |
|
|
19 |
206-4820
|
Washer |
8 |
|
|
