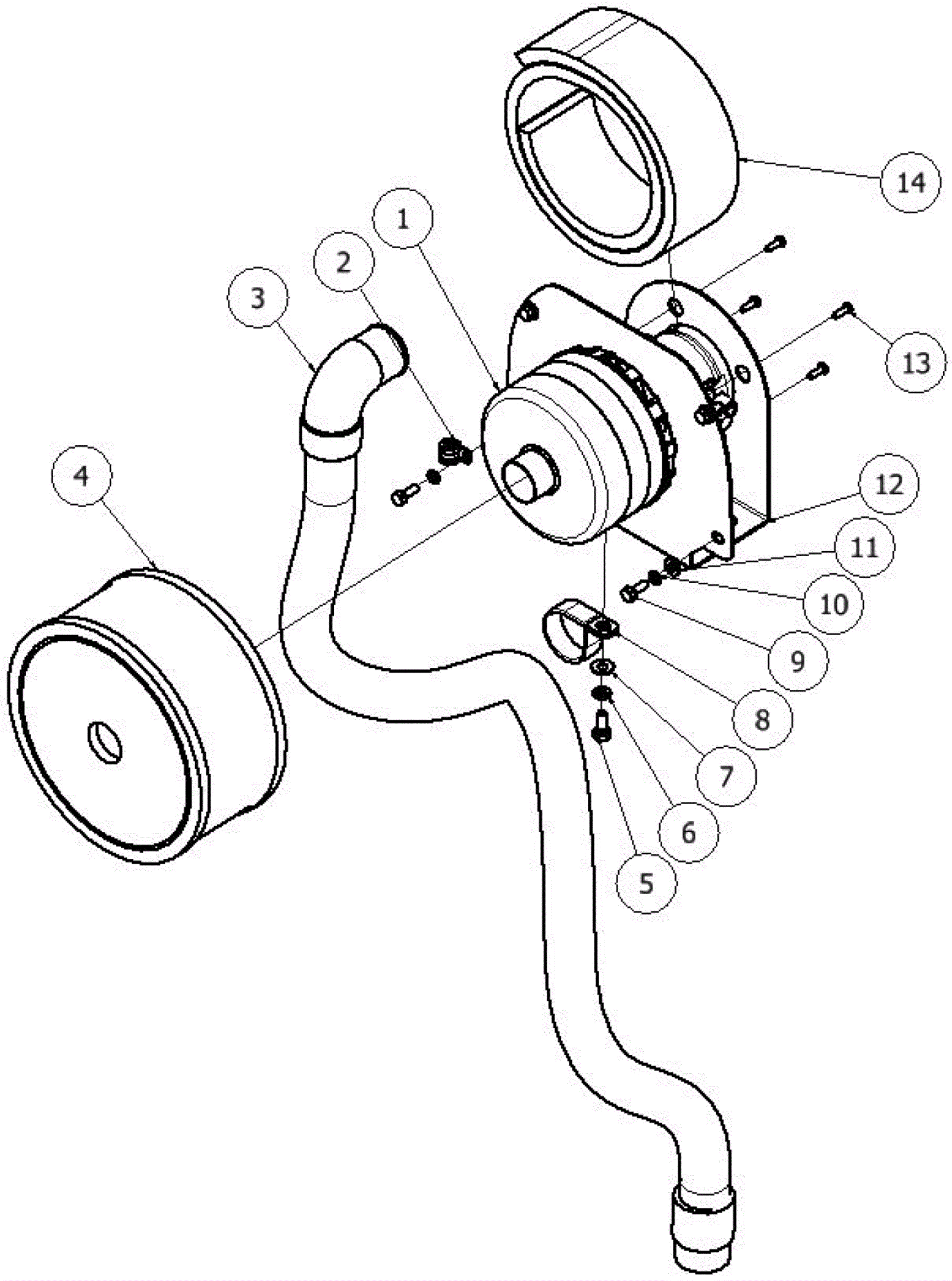

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
206-3262
|
24V 3 stage vacuum motor |
1 |
(OEM) |
|
1b |
991-1210
|
24V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
2 |
206-3205
|
P clamp |
1 |
|
|
3 |
206-1562
|
Squeegee hose |
1 |
|
|
4 |
206-3259
|
HEPA filter |
1 |
|
|
5 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
1 |
|
|
6 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
7 |
206-5233
|
Washer 5/16 x .040 flat |
1 |
|
|
8 |
206-1563
|
1 3/4 inch rubber clamp |
1 |
|
|
9 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
4 |
|
|
10 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
11 |
206-4820
|
Washer |
3 |
|
|
12 |
206-1564
|
Motor mounting bracket |
1 |
|
|
13 |
999-0572
|
Screw 10-24 x 1/2 pan head self-tapping zinc |
4 |
|
|
14 |
206-3446
|
Noise foam |
1 |
|
|
KIT1 |
206-3647
|
Vacuum motor kit |
1 |
(includes 1 and 14) |
|
