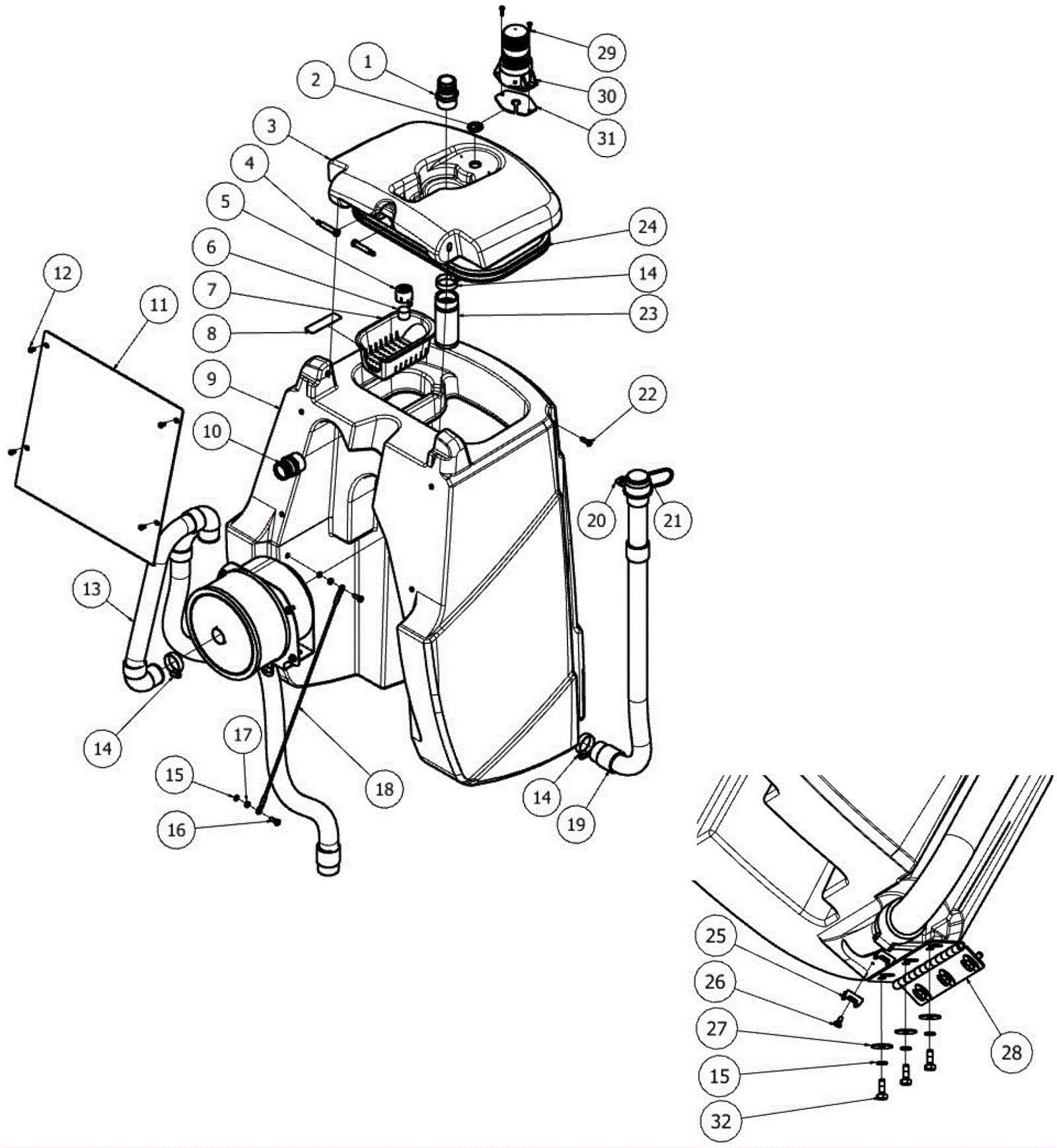

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3245
|
Fitting |
1 |
|
|
2 |
206-4031
|
Plug |
1 |
|
|
3 |
206-1555
|
Recovery tank cover |
1 |
|
|
4 |
206-3250
|
Screw 3/8 x 1 3/4 shoulder stainless steel |
2 |
|
|
5 |
206-3260
|
Puck tray |
1 |
|
|
6 |
206-1898
|
1 inch bromine puck |
1 |
|
|
7 |
206-3257
|
Debris tray |
1 |
|
|
8 |
206-3264
|
Bromine instruction decal |
1 |
|
|
9 |
206-1556
|
Recovery tank |
1 |
|
|
10 |
206-3255
|
Fitting |
1 |
|
|
11 |
206-1557
|
Hose cover |
1 |
|
|
12 |
999-1532
|
Screw 1/4-20 x 1/2 hex head stainless steel |
4 |
|
|
13 |
206-1558
|
Vacuum hose |
1 |
|
|
14 |
206-0071
|
Clamp |
3 |
|
|
15 |
999-0060
|
Washer 1/4 split lock plain finish |
8 |
|
|
16 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
8 |
|
|
17 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
18 |
206-4055
|
Retention cable |
1 |
|
|
19a |
206-4029
|
Drain hose capped chem resist |
1 |
|
|
19b |
206-3253
|
Drain hose assembly |
1 |
|
|
20 |
206-5485
|
Hose support strap |
1 |
|
|
21 |
206-3253
|
Drain hose assembly |
1 |
|
|
22 |
999-1382
|
Screw 1/4-20 x 1 truss head phillips |
1 |
|
|
23 |
206-3244
|
Shut off float |
1 |
|
|
24 |
206-3246
|
Cover gasket |
1 |
|
|
25 |
206-3212
|
Cable tie |
2 |
|
|
26 |
206-3224
|
Screw 10 x 3/8 pan head zinc |
2 |
|
|
27 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
6 |
|
|
28 |
206-1559
|
Tank hinge |
1 |
|
|
29 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
2 |
(only used on machines equipped with the optional lamp and are used in place of item 2) |
|
30 |
206-1560
|
Flashing light |
1 |
(only used on machines equipped with the optional lamp and are used in place of item 2) |
|
31 |
206-1561
|
Lamp gasket |
1 |
(only used on machines equipped with the optional lamp and are used in place of item 2) |
|
32 |
206-1899
|
Screw 1/4-20 x 3/4 hex head with patch |
6 |
|
|
