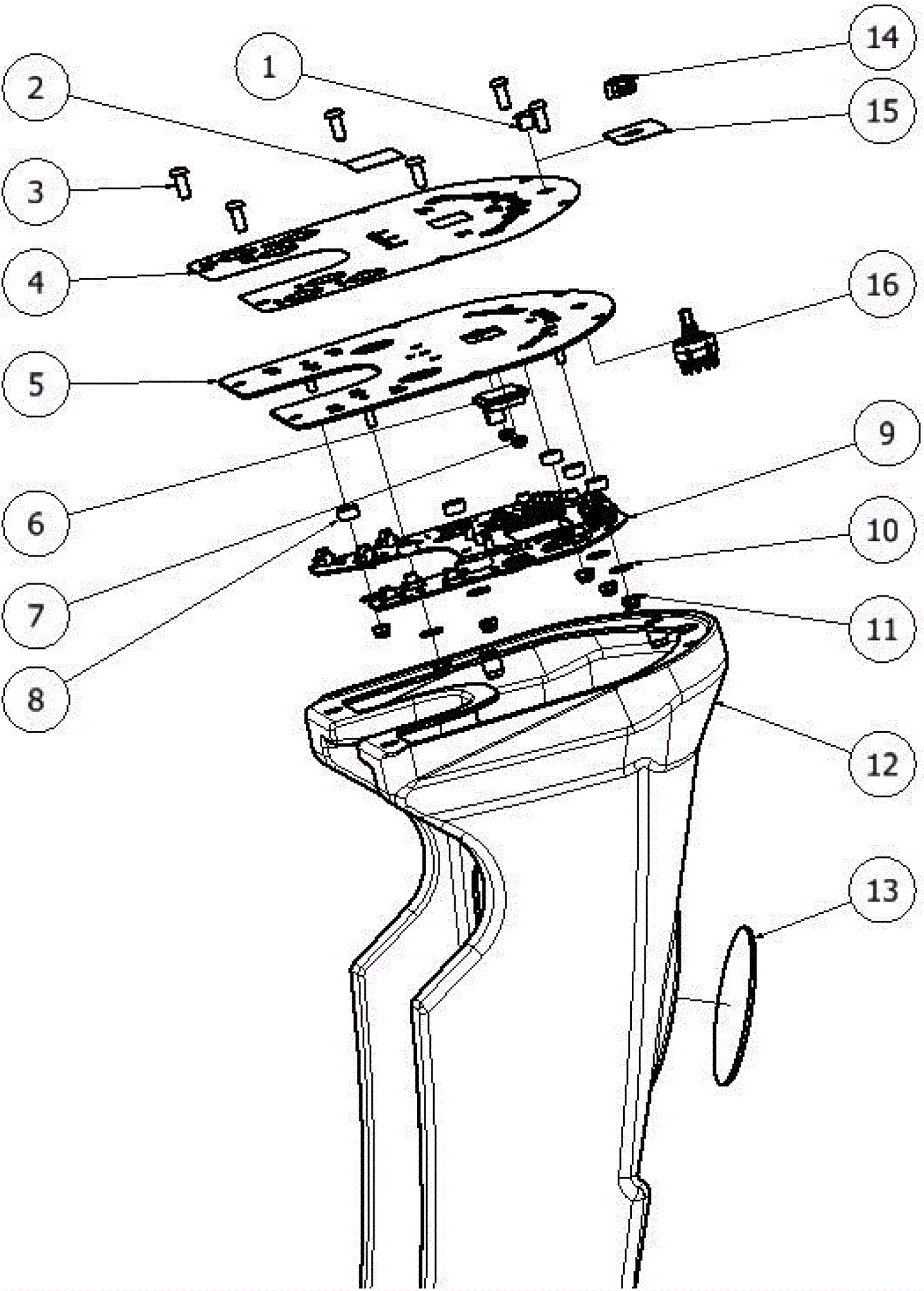

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1542
|
3/8 inch hole plug |
1 |
|
|
2 |
206-1543
|
BatteryShield decal |
1 |
(only used on machines not equipped with BatteryShield) |
|
3 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
6 |
|
|
4 |
206-1544
|
Controller decal |
1 |
|
|
5 |
206-1545
|
Operator control |
1 |
|
|
6 |
206-3380
|
Battery meter |
1 |
|
|
7 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
2 |
|
|
8 |
206-4021
|
Spacer 10 x .25 plastic |
6 |
|
|
9 |
206-1546
|
Operator controller |
1 |
|
|
10 |
999-0998
|
Washer #10 flat stainless steel |
6 |
|
|
11 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
6 |
|
|
12a |
206-1547
|
Steering column shroud |
1 |
|
|
12b |
206-1548
|
Clean-n-pay shorud |
1 |
(only used on models equipped with the optional ScrubSmart telemetry system) |
|
13 |
206-1549
|
4 inch round decal |
1 |
|
|
14 |
206-3407
|
Knob |
1 |
(only used on machines equipped with Chemical Injection and used in place of item 1) |
|
15 |
206-1550
|
Solution control decal |
1 |
(only used on machines equipped with Chemical Injection and used in place of item 1) |
|
16 |
206-1551
|
12 position rotary switch with harness |
1 |
(only used on machines equipped with Chemical Injection and used in place of item 1) |
|
