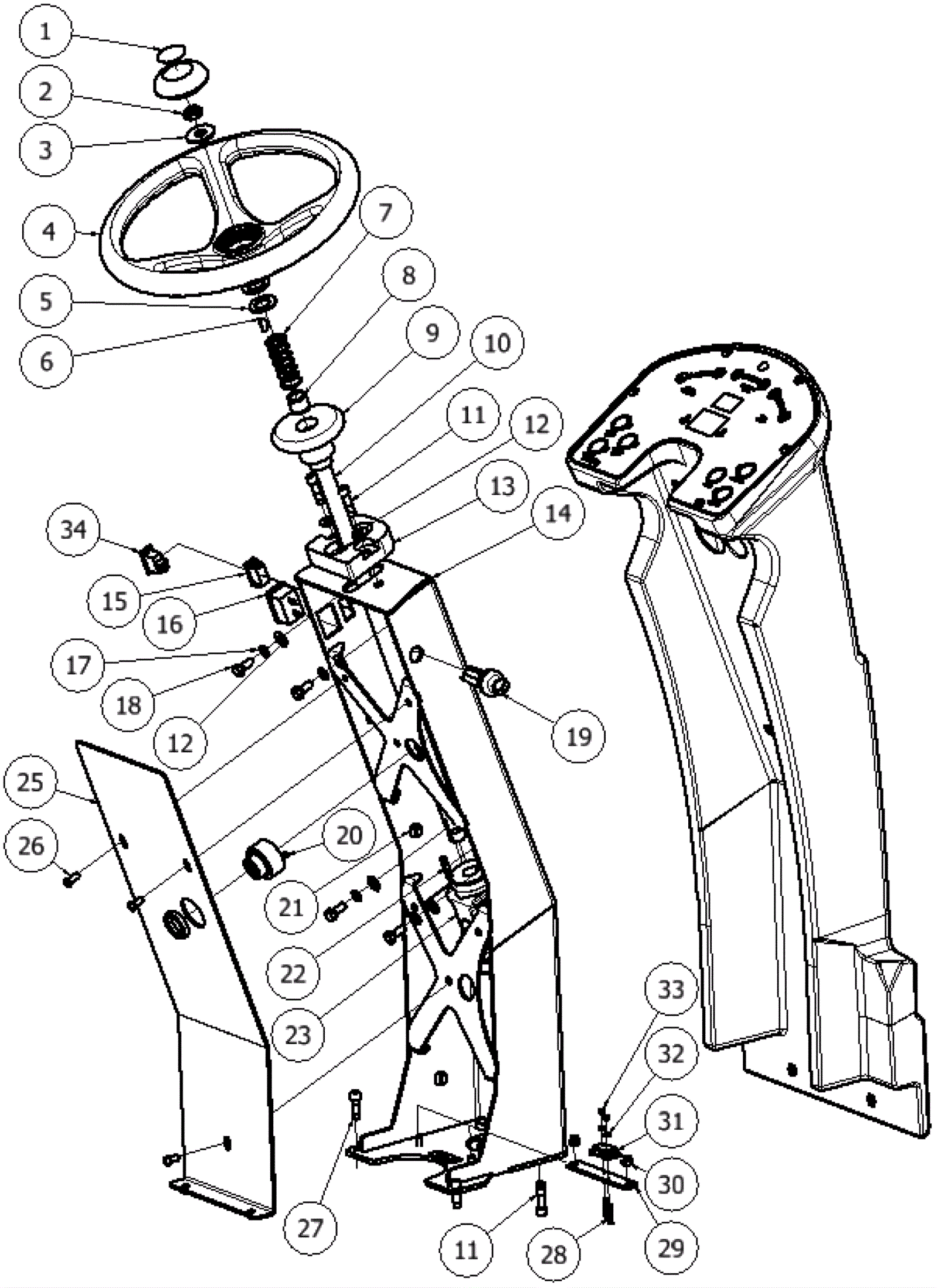

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1528
|
Steering wheel decal |
1 |
|
|
2 |
999-0202
|
Nut 1/2-13 hex plain finish |
1 |
|
|
3 |
999-1416
|
Washer 7/16 flat stainless steel |
1 |
|
|
4 |
206-1529
|
Steering wheel |
1 |
|
|
5 |
206-1530
|
Washer |
2 |
|
|
6 |
206-3203
|
Square keyway |
1 |
|
|
7 |
206-1531
|
Compression spring |
1 |
|
|
8 |
206-1532
|
Plain bearing |
1 |
|
|
9 |
206-1533
|
Steering adjustment hub |
1 |
|
|
10 |
206-1534
|
Steering shaft |
1 |
|
|
11 |
999-0131
|
Screw 5/16-18 x 1 1/2 socket head stainless steel |
4 |
|
|
12 |
206-5233
|
Washer 5/16 x .040 flat |
6 |
|
|
13 |
206-1535
|
Bearing block |
1 |
|
|
14 |
206-1536
|
Column frame |
1 |
|
|
15 |
206-1221
|
Switch |
1 |
|
|
16 |
206-3391
|
Hour meter |
1 |
|
|
17 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
18 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
19 |
206-3385
|
Keyswitch |
1 |
|
|
20 |
206-1537
|
Alarm |
1 |
|
|
21 |
206-1497
|
Wire mount |
4 |
|
|
22 |
206-1538
|
Key |
2 |
|
|
23 |
206-1539
|
3/4 inch universal joint |
1 |
|
|
25 |
206-1540
|
Steering column cover |
1 |
|
|
26 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
3 |
|
|
27 |
999-1822
|
Screw 5/16-18 x 1 socket cap stainless steel |
2 |
|
|
28 |
999-1059
|
Screw 4-40 x 3/4 pan head phillips zinc plated |
2 |
|
|
29 |
206-1541
|
Switch mounting bracket |
1 |
|
|
30 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
31 |
206-1072
|
Snap switch |
1 |
|
|
32 |
999-1521
|
Washer M3 flat stainless steel |
2 |
|
|
33 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
34 |
206-0045
|
On/Off rocker switch |
1 |
(only used with machines with the lamp option and is used in place of item 15) |
|
N/S |
999-1468
|
Screw 1/4-20 x 1/2 knurled point set alloy steel |
4 |
|
|
