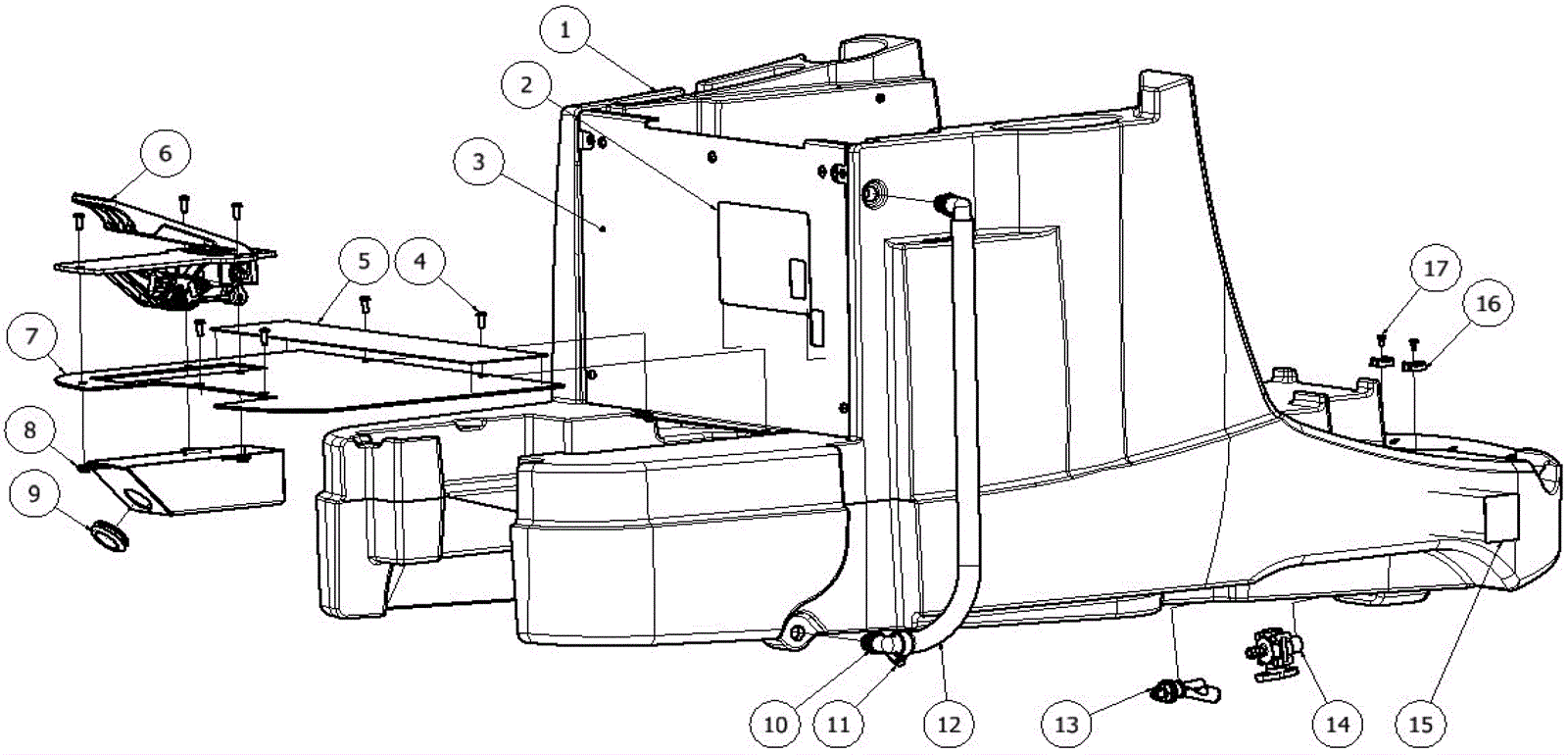

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1517
|
Solution tank |
1 |
|
|
2 |
206-1518
|
Information decal |
1 |
|
|
3 |
206-1519
|
Actuator cover panel |
1 |
|
|
4 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
13 |
|
|
5 |
206-1520
|
Foot grip decal |
1 |
|
|
6 |
206-1521
|
Low profile pedal |
1 |
|
|
7 |
206-1522
|
Foot plate |
1 |
|
|
8 |
206-1523
|
Pedal debris housing |
1 |
|
|
9 |
206-1498
|
Grommet |
1 |
|
|
10 |
206-1524
|
Elbow fitting |
2 |
|
|
11 |
206-0080
|
Hose clamp |
1 |
|
|
12 |
206-1525
|
Sight tube |
1 |
|
|
13 |
206-1526
|
Float switch |
1 |
|
|
14 |
206-3215
|
Shut off ball valve |
1 |
|
|
15 |
206-1527
|
Filter location decal |
1 |
|
|
16 |
206-3212
|
Cable tie |
2 |
|
|
17 |
206-3224
|
Screw 10 x 3/8 pan head zinc |
2 |
|
|
