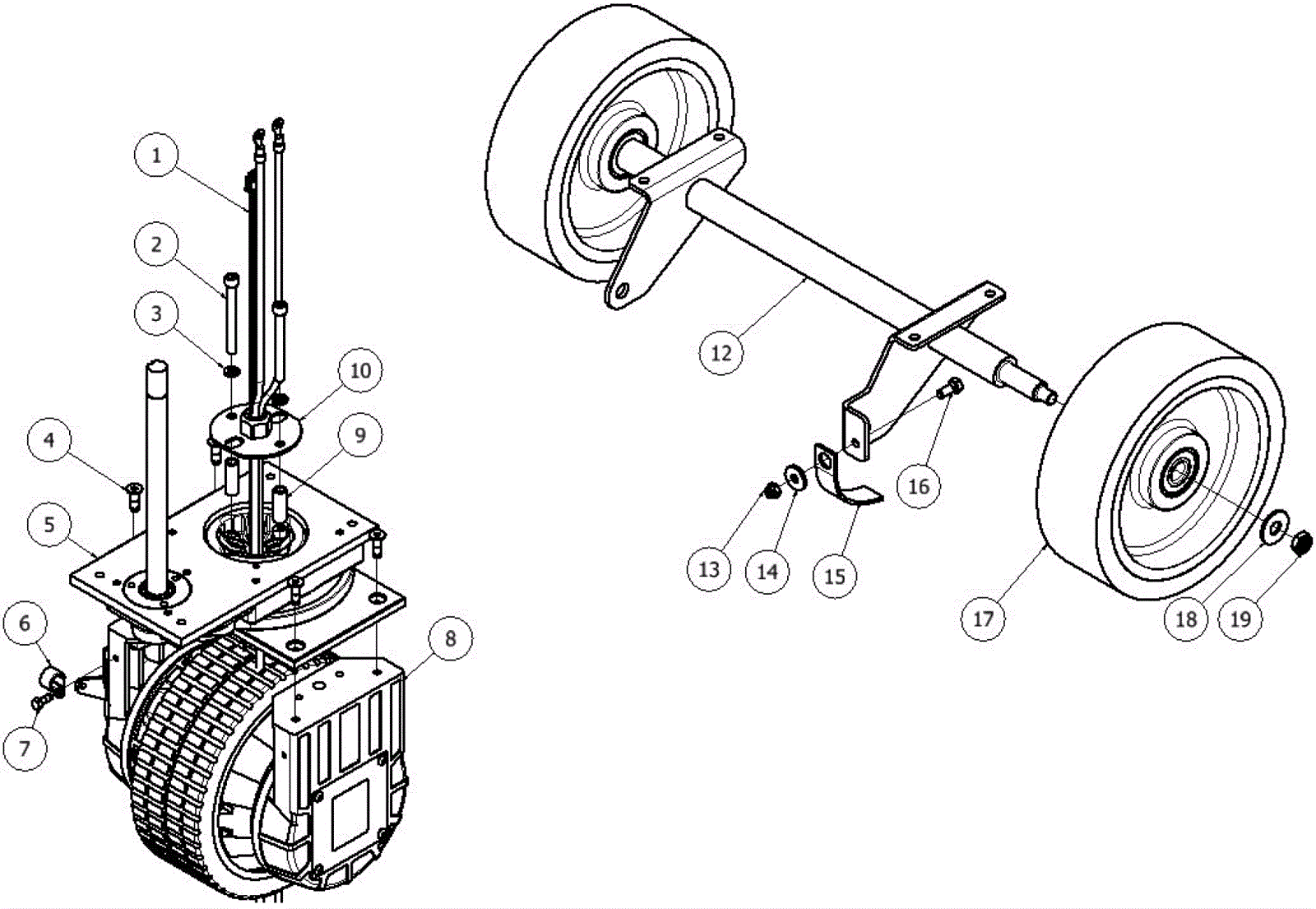

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1504
|
Flexible drive harness with fitting |
1 |
|
|
2 |
206-1505
|
Screw M8 x 80mm socket head |
2 |
|
|
3 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
4 |
206-1506
|
Screw M8 x 25mm flat head |
4 |
|
|
5 |
206-1507
|
Top plate |
1 |
|
|
6 |
206-3372
|
P clamp |
1 |
|
|
7 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
1 |
|
|
8 |
206-1508
|
24V wheel drive |
1 |
|
|
9 |
206-1509
|
Harness plate spacer |
2 |
|
|
10 |
206-1510
|
Bracket mounting cable |
1 |
|
|
12 |
206-1511
|
Rear axle |
1 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
14 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
15 |
206-3302
|
Grounding strap |
1 |
|
|
16 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
1 |
|
|
17 |
206-1512
|
Wheel bearing |
2 |
|
|
18 |
999-1416
|
Washer 7/16 flat stainless steel |
2 |
|
|
19 |
999-0202
|
Nut 1/2-13 hex plain finish |
2 |
|
|
N/S |
206-1513
|
Heat shrink tube |
2 |
(included in KIT1) |
|
N/S |
206-6026
|
Drive wheel brake kit |
1 |
|
|
KIT1 |
206-1514
|
Steering assembly |
1 |
(includes 1-3, 5, 9-10) |
|
