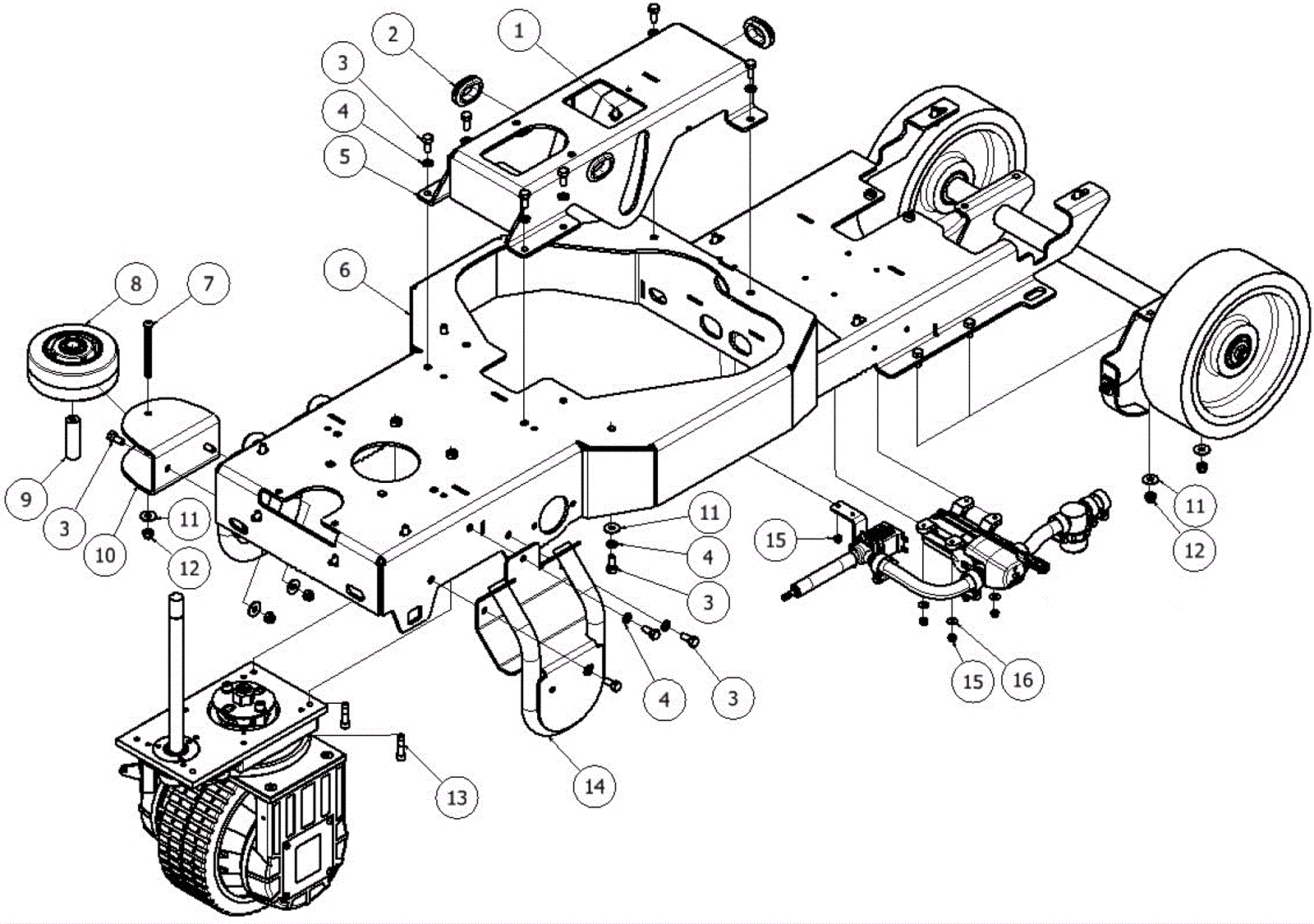

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1497
|
Wire mount |
1 |
|
|
2 |
206-1498
|
Grommet |
5 |
|
|
3 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
29 |
|
|
4 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
24 |
|
|
5 |
206-1499
|
Guide head bracket |
1 |
|
|
6 |
206-1500
|
Frame weldment |
1 |
|
|
7 |
999-1909
|
Screw 5/16-18 x 3 1/2 button socket cap SS |
1 |
|
|
8 |
206-1353
|
5 inch wheel |
1 |
|
|
9 |
206-1501
|
Wheel bumper spacer |
1 |
|
|
10 |
206-1502
|
Guide wheel mounting bracket |
1 |
|
|
11 |
206-5233
|
Washer 5/16 x .040 flat |
17 |
|
|
12 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
13 |
999-0131
|
Screw 5/16-18 x 1 1/2 socket head stainless steel |
2 |
|
|
14 |
206-1503
|
Frame tip brace |
2 |
|
|
15 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
6 |
|
|
16 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
