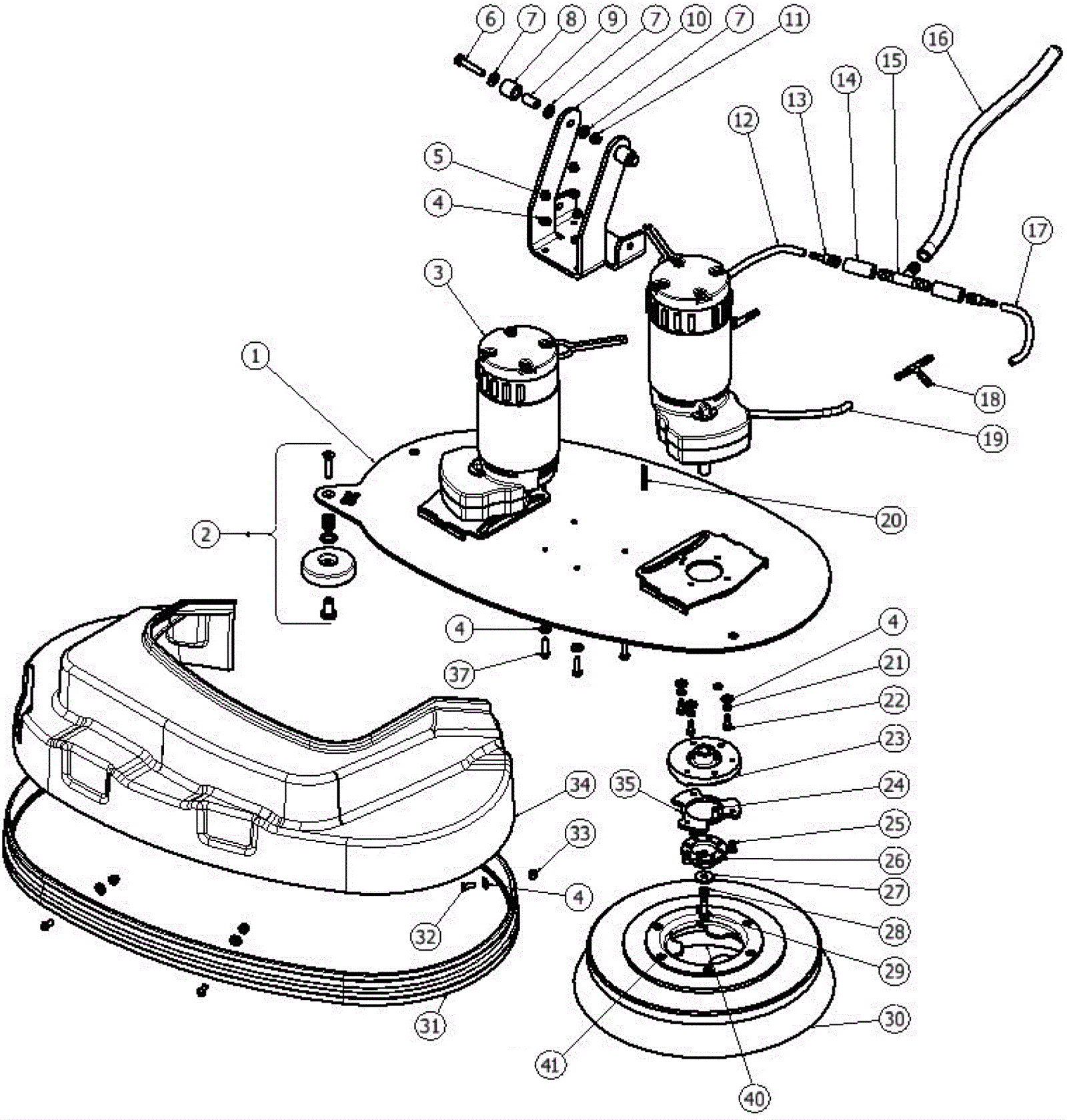

Disk Head Assembly

#PartDescription ReqNotesAvailability
1a 206-2173 28 inch mounting plate 1 (after SN 121566)
1b 206-3352 28 inch mounting plate 1 (before SN 1221567)
2 206-1602 Wheel replacement kit 1
3 206-4062 Brush motor 2
4 206-4820 Washer 20
5 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
6 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
7 206-5233 Washer 5/16 x .040 flat 6
8 206-3319 Plastic roller 2
9 206-3315 Spacer 2 (qty 3 before SN 121567)
10 206-3346 Head support bracket 1
11 999-0593 Nut 5/16-18 hex stainless steel 2
12 206-0099 1/4 inch hose (clear) (sold by the inch) 6 inch
13 206-3231 Reducer fitting 2
14 206-0157 Clear hose (sold by the inch) 2 inch
15 206-3230 Tee fitting 1
16 206-0157 Clear hose (sold by the inch) 20 inch
17 206-0099 1/4 inch hose (clear) (sold by the inch) 6 inch
18 206-3347 Tee fitting 2
19 206-0099 1/4 inch hose (clear) (sold by the inch) 15 inch
20 206-3343 Square keyway 2
21 999-0060 Washer 1/4 split lock plain finish 8 (qty 12 before SN 121567)
22 999-1383 Screw M6-1 x 16mm hex head stainless steel 8
23 206-4035 Brush hub 2
24 206-4037 Press-in plunger ball 2
25 999-1824 Screw 1/4-20 x 5/8 flat head socket stainless steel 6
26 206-3344 Plastic pad guide 2
27 999-0024 Washer 5/16 flat stainless steel 2
28 999-0553 Washer 5/16 medium split lock stainless steel 2
29 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
30 206-3762 13 inch polypropylene brush 2
31 206-3350 Skirt 1
32 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish 4
33 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
34 206-3349 28 inch shroud head 1
35 206-3337 Right side driver guide 1
36 206-3316 Left hand driver guide 1
37 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
38 206-4067 Shroud assembly 1
39 206-4039 Carbon brush kit 1
40 206-1388 Pad holder 2
41 206-3774 Clutch plate 2
N/S 206-3763 13 inch nylon brush 2 (before SN 1221567)
N/S 206-3764 13 inch grit brush 2 (before SN 1221567)
N/S 206-3765 Pad driver 2 (before SN 1221567)
N/S 206-3301 Flange bushing 4 (before SN 1221567)
N/S 206-3275 Screw 1/2 x 1/2 shoulder 4 (before SN 1221567)
N/S 206-3348 Mounting plate gimbal 2 (before SN 1221567)
N/S 999-1482 Nut 3/8-16 nylon lock stainless steel 4 (before SN 1221567)
N/S 999-0609 Nut 1/4-20 hex stainless steel 4 (before SN 1221567)
N/S 206-3353 Rubber bumper 4 (before SN 1221567)
N/S 206-3354 Retaining bracket 2 (before SN 1221567)
N/S 206-4067 Shroud assembly 1 (includes 4, 31-34)
