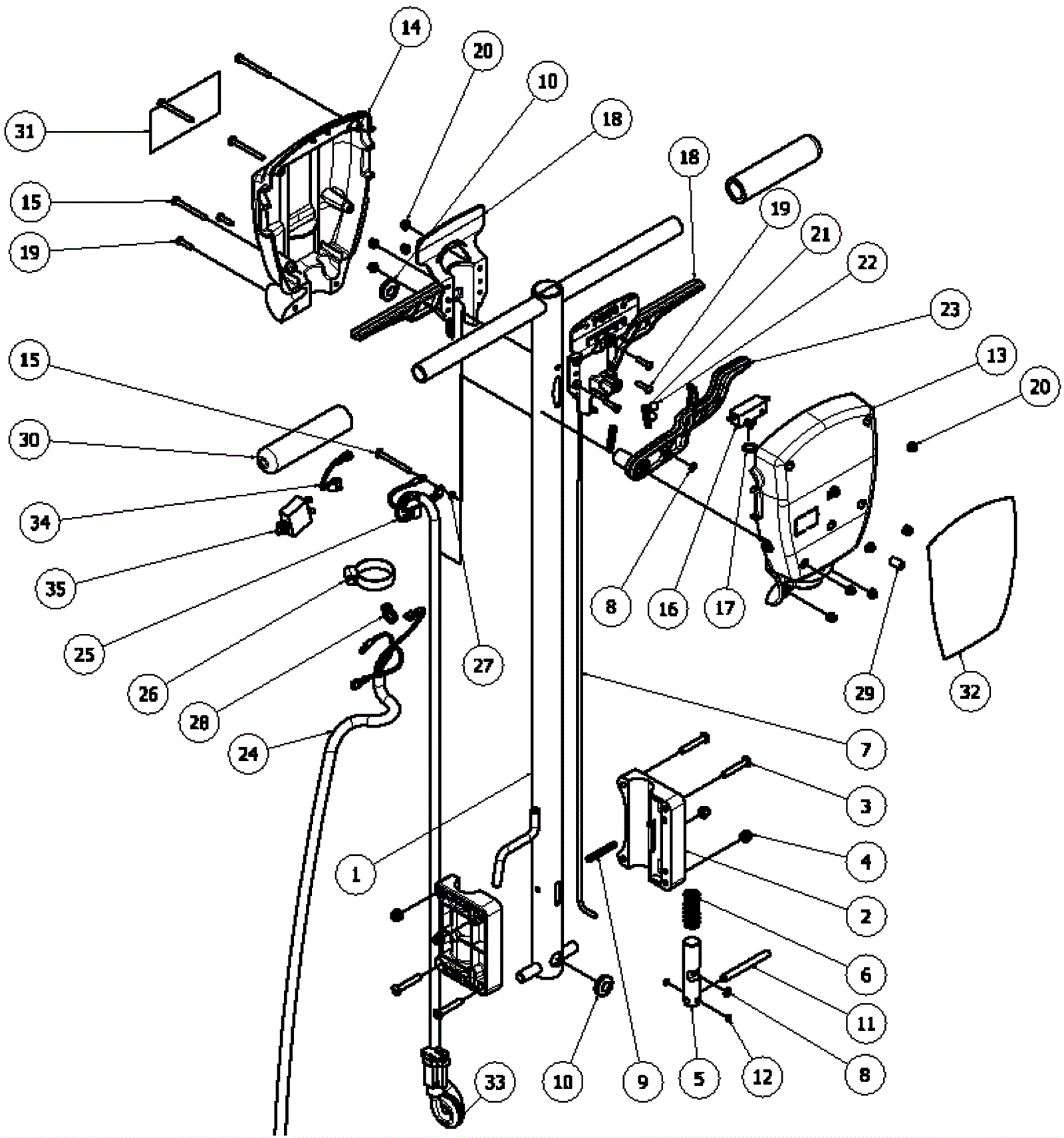

B1500 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-1297 Handle weldment $125.27 1 usually ships 1-5 days
2 206-1298 Handle clamp block $11.57 2 usually ships 5-15 days
3 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 4 ships same day
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
5 206-1299 Plunger handle $76.63 1 usually ships 1-5 days
6 206-1300 Compression spring $8.69 1 usually ships 5-15 days
7 206-1301 Long handle rod $25.63 1 usually ships 5-15 days
8 206-1302 3/16 inch retaining ring $2.18 2 usually ships 5-15 days
9 206-1303 Spring pin 1/4 x 1 3/4 $1.96 1 usually ships 1-5 days
10 206-1304 Grommet $4.22 2 usually ships 5-15 days
11 206-1305 Dowel pin 5/16 x 3 $9.32 1 usually ships 5-15 days
12 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
13 206-1306 Front housing $24.66 1 ships same day
14 206-1307 Rear housing $21.75 1 ships same day
15 999-1818 Screw 10-32 x 2 pan head phillips stainless steel $1.80 5 ships same day
16 217-0014 On/off switch $39.05 1 ships same day
17 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
18 206-1309 Molded trigger $10.11 2 ships same day
19 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 6 ships same day
20 206-5019 Nut 10-32 elastic stop $2.85 11 ships same day
21 206-3387 Extension spring $18.32 2 usually ships 5-15 days
22 206-1310 Ball bearing 3/8 $46.78 2 usually ships 5-15 days
23 206-1311 Trigger $7.50 1 ships same day
24 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 ships same day
25 206-1246 Handle cord assembly $43.95 1 usually ships 5-15 days
26 206-0071 Clamp $6.57 1 ships same day
27 206-5030 Washer 10 counter sink $2.57 1 usually ships 5-15 days
28 206-1313 Cable tie $2.57 1 usually ships 1-5 days
29 206-0099 1/4 inch hose (clear) (sold by the inch) $3.71 1 ships same day
30 206-1314 Closed grip $9.50 2 usually ships 5-15 days
31 206-1244 Warning decal $10.33 1 usually ships 5-15 days
32 206-1315 Decal $23.28 1 usually ships 5-15 days
33 206-3135 Grommet $4.50 1 usually ships 1-5 days
34 206-1380 Circuit breaker harness $43.13 1 usually ships 1-5 days
35 206-5003 18amp circuit breaker $75.50 1 usually ships 5-15 days
