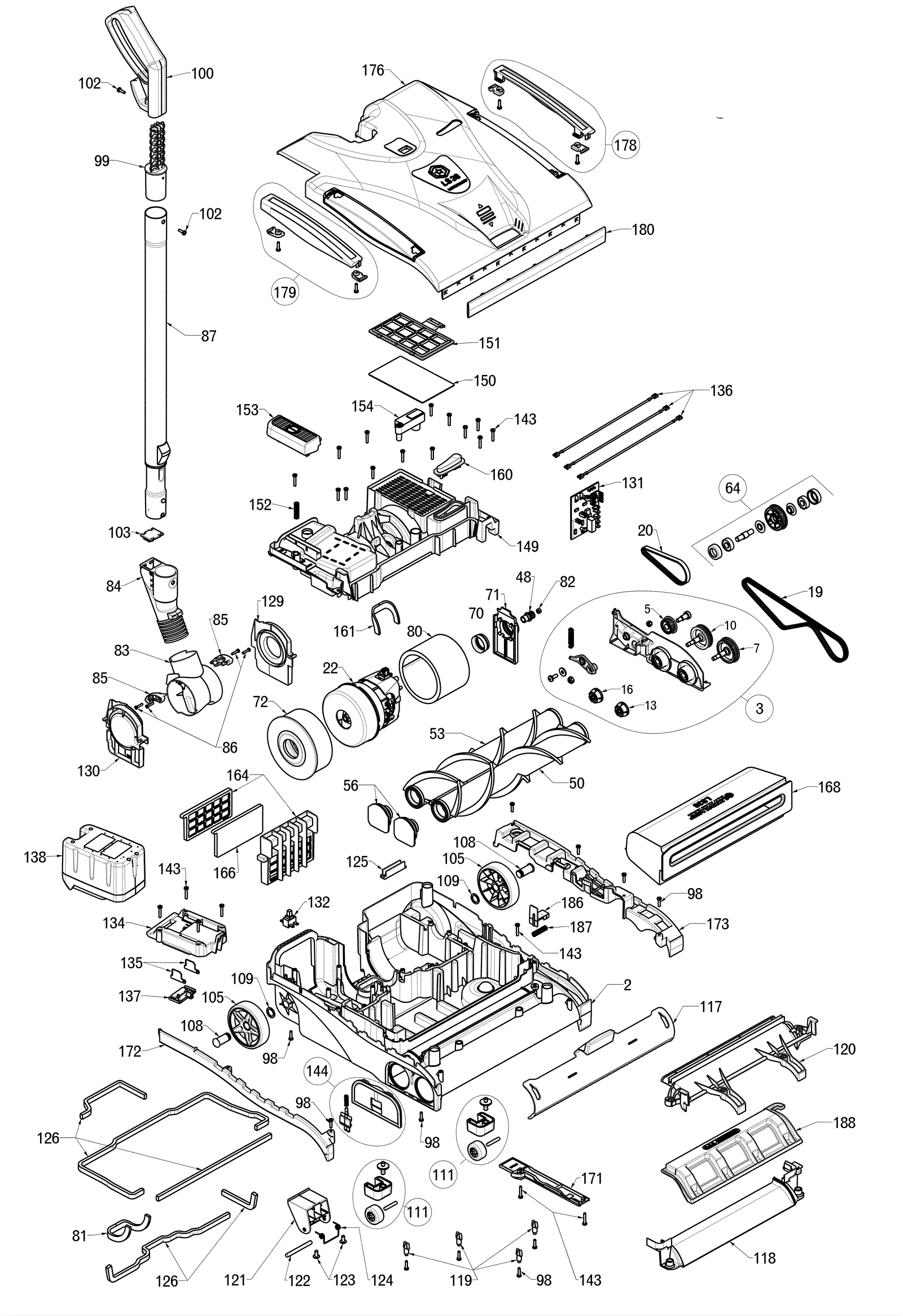

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
206-6035
|
Base housing |
1 |
|
|
3 |
206-6036
|
Transmission support |
1 |
(includes 5, 7, 10, 13, and 16) |
|
5 |
206-6037
|
Pulley with ball bearing |
1 |
|
|
7 |
206-1647
|
Pulley |
1 |
|
|
10 |
206-6038
|
Rear pulley |
1 |
|
|
13 |
206-1669
|
Drive joint base |
1 |
|
|
16 |
206-6039
|
Rear drive joint base |
1 |
|
|
19 |
206-6040
|
Timing belt 564 H5 |
1 |
|
|
20 |
206-6041
|
Timing belt 252 M7 |
1 |
|
|
22 |
206-6042
|
Motor |
1 |
|
|
48 |
206-6043
|
Pinnion |
1 |
|
|
50 |
206-6044
|
14 inch front brush roller, 2 bristles black |
1 |
|
|
53 |
206-6045
|
14 inch rear brush roller, 2 bristles white |
1 |
|
|
56 |
206-6046
|
Roller support |
2 |
|
|
64 |
206-6047
|
Double pulley kit |
1 |
|
|
70 |
206-6048
|
Brush motor |
1 |
|
|
71 |
206-6049
|
Brush holder gasket |
1 |
|
|
72 |
206-6050
|
Motor gasket |
1 |
|
|
80 |
206-6051
|
Foam motor filter |
1 |
|
|
81 |
206-6052
|
Felt base |
1 |
|
|
82 |
206-6053
|
Nut M5 |
1 |
|
|
83 |
206-6054
|
Joint |
1 |
|
|
84 |
206-6055
|
Joint top curve |
1 |
|
|
85 |
206-6056
|
Joint side guides (pkg 2) |
2 |
|
|
86 |
206-6057
|
Screw 2, 9x16 |
4 |
|
|
87 |
206-6058
|
Telescopic wand metal (gray/silver) |
1 |
|
|
98 |
206-1403
|
Screw M3.5 x 16mm (pkg of 20) |
10 |
|
|
99 |
206-6059
|
Handle adaptor |
1 |
|
|
100 |
206-6060
|
Handle grip (blue) |
1 |
|
|
102 |
999-9106
|
Screw M4-.7 x 16mm hex head stainless steel |
2 |
|
|
103 |
206-6061
|
Joint cover |
1 |
|
|
105 |
206-6062
|
Rear wheel |
2 |
|
|
108 |
206-6063
|
Rear wheel shaft |
2 |
|
|
109 |
206-6064
|
Washer |
2 |
|
|
111 |
206-6065
|
Front wheels kit |
2 |
|
|
117 |
206-6066
|
Flap |
1 |
|
|
118 |
206-6067
|
Lower bag conveyor |
1 |
|
|
119 |
206-6068
|
Clip and screws (red) |
4 |
|
|
120 |
206-6069
|
Upper bag conveyor |
1 |
|
|
121 |
206-6070
|
Foot pedal (red) |
1 |
|
|
122 |
206-6071
|
Foot pedal shaft |
1 |
|
|
123 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
2 |
|
|
124 |
206-6072
|
Foot pedal spring |
1 |
|
|
125 |
206-6073
|
Channel wires holder |
1 |
|
|
126 |
206-6074
|
Gasket kit |
1 |
|
|
129 |
206-6075
|
Left hand joint support |
1 |
|
|
130 |
206-6076
|
Right hand joint support |
1 |
|
|
131 |
206-6077
|
Circuit board |
1 |
|
|
132 |
206-6078
|
Main switch |
1 |
|
|
134 |
206-6079
|
Battery support |
1 |
|
|
135 |
206-6080
|
Contact |
2 |
|
|
136 |
206-6081
|
Wire kit |
1 |
|
|
137 |
206-6082
|
Contact holder |
1 |
|
|
138 |
206-6083
|
36V 6AH lithium battery |
1 |
|
|
143 |
206-6084
|
Screw 3,5x22 |
20 |
|
|
144 |
206-6085
|
Side cover kit |
1 |
|
|
149 |
206-6086
|
Motor cover |
1 |
|
|
150 |
206-6087
|
Microfilter (pkg 10) |
1 |
|
|
151 |
206-6088
|
Microfilter grill |
1 |
|
|
152 |
206-1467
|
Bag holder button spring |
1 |
|
|
153 |
206-6089
|
Foot pedal switch |
1 |
|
|
154 |
206-6090
|
Full bag indicator |
1 |
|
|
160 |
206-6091
|
Lens cover |
1 |
|
|
161 |
206-6092
|
Felt motor cover |
1 |
|
|
164 |
206-6093
|
GRILL MOTOR PROT. FILTER |
1 |
|
|
166 |
206-6094
|
FILTER MOTOR PROT. (pkg of 10) |
1 |
|
|
168 |
206-3843
|
Microfiber vac bag (8 bags, 2 microfilters, 1 motor filter) |
1 |
|
|
171 |
206-6095
|
Lower belt cover |
1 |
|
|
172 |
206-6096
|
Right hand bumper |
1 |
|
|
173 |
206-6097
|
Left hand bumper |
1 |
|
|
176 |
206-6098
|
Top base cover |
1 |
|
|
178 |
206-6099
|
Left hook kit |
1 |
|
|
179 |
206-6100
|
Right hook kit |
1 |
|
|
180 |
206-6101
|
Front bumper |
1 |
|
|
186 |
206-6102
|
Saftey bag latch |
1 |
|
|
187 |
206-1467
|
Bag holder button spring |
1 |
|
|
188 |
206-6103
|
DCS converter |
1 |
|
|
N/S |
206-6104
|
120V battery charger |
1 |
|
|
N/S |
206-3843
|
Microfiber vac bag (8 bags, 2 microfilters, 1 motor filter) |
1 |
|
|
