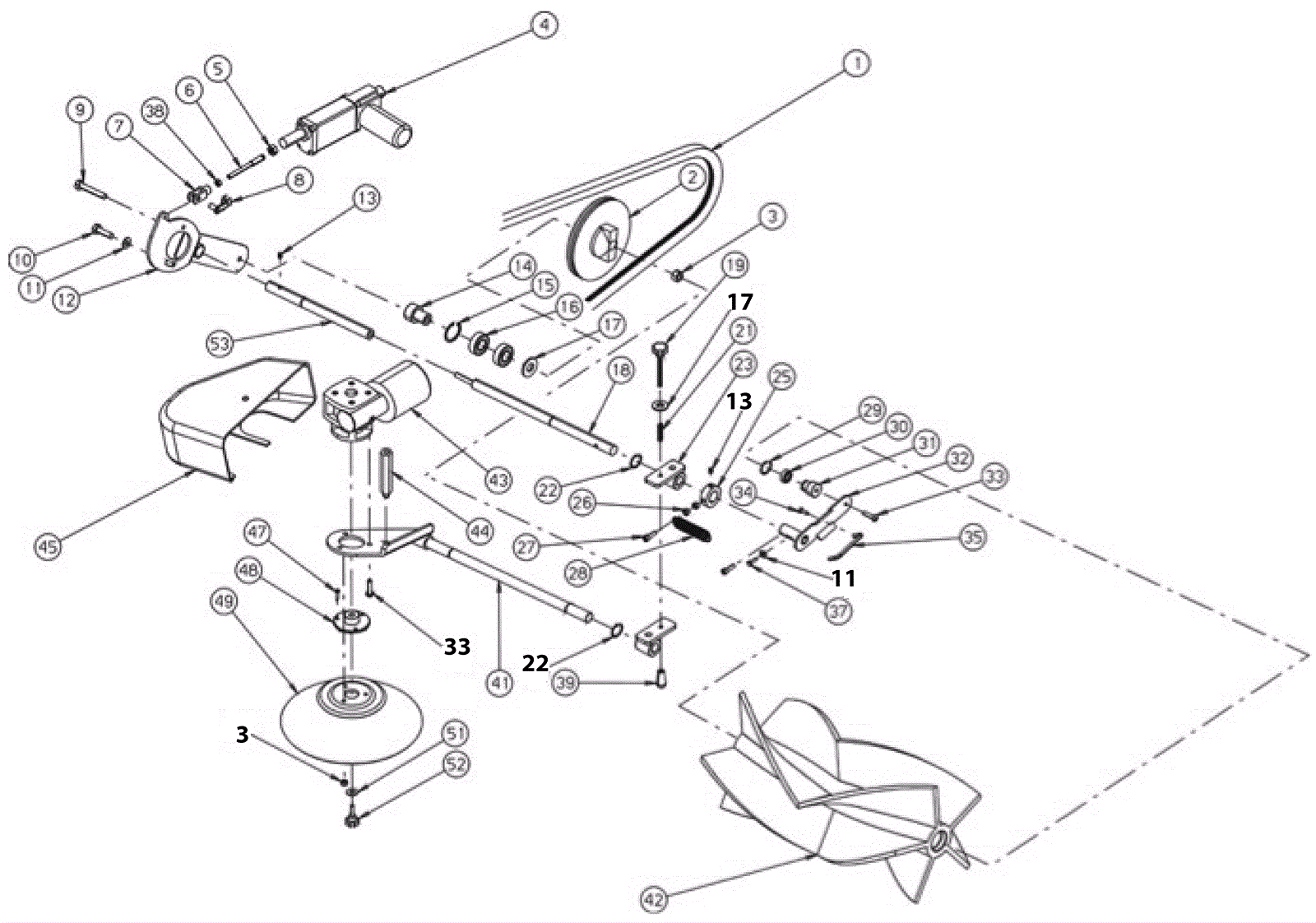

Lower Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-6195 Belt $71.30 1 usually ships 1-5 days
2 206-6196 Central brush pulley Call for price 1 usually ships 1-5 days
3 206-6157 Nut $18.10 4 usually ships 1-5 days
4 206-6197 Brush lifting jackscrew $710.29 2 usually ships 1-5 days
5 206-6198 Nut Call for price 1 usually ships 1-5 days
6 206-6199 Jackscrew strainer Call for price 1 usually ships 1-5 days
7 206-6200 Joint Call for price 1 usually ships 1-5 days
8 206-6201 Pin with spring $11.76 1 usually ships 1-5 days
9 999-1663 Bolt M6-1 x 70mm hex head stainless steel $1.32 1 usually ships 1-5 days
10 206-6202 Screw Call for price 2 usually ships 1-5 days
11 206-6203 Washer $6.05 3 usually ships 1-5 days
12 206-6204 Central brush level Call for price 1 usually ships 1-5 days
13 206-6205 Dowel Call for price 2 usually ships 1-5 days
14 206-6206 Right hand bushing Call for price 1 usually ships 1-5 days
15 206-6207 Seeger ring Call for price 1 usually ships 1-5 days
16 206-6208 Bearing $42.91 2 usually ships 1-5 days
17 206-6144 Washer $5.50 2 usually ships 1-5 days
18 206-6209 Central brush shaft Call for price 1 usually ships 1-5 days
19 206-6210 Knob $31.19 1 usually ships 1-5 days
21 206-6211 Squeegee spring $27.21 1 usually ships 1-5 days
22 206-6212 Seeger ring Call for price 4 usually ships 1-5 days
23 206-6213 Side brush lifting lever Call for price 2 usually ships 1-5 days
25 206-6214 Spacer Call for price 1 usually ships 1-5 days
26 206-6215 Nut Call for price 4 usually ships 1-5 days
27 206-6133 Screw Call for price 2 usually ships 1-5 days
28 206-6216 Brake spring $25.66 1 usually ships 1-5 days
29 206-6217 Seeger clip $8.07 1 usually ships 1-5 days
30 206-6218 Ball bearing $48.06 1 usually ships 1-5 days
31 206-6219 Bushing $26.08 1 usually ships 1-5 days
32 206-6220 Central brush lever Call for price 1 usually ships 1-5 days
33 206-6221 Screw $9.98 4 usually ships 1-5 days
34 206-6222 Screw Call for price 2 usually ships 1-5 days
35 206-6223 Handle cover Call for price 1 usually ships 1-5 days
37 206-6224 Screw $6.45 1 usually ships 1-5 days
38 206-6167 Nut stainless steel Call for price 1 usually ships 1-5 days
39 206-6225 Foot Call for price 1 usually ships 1-5 days
41 206-6226 Side brush shaft Call for price 1 usually ships 1-5 days
42 206-6024 Central brush $167.84 1 usually ships 1-5 days
43 206-6227 Side brush gear motor $218.99 2 usually ships 1-5 days
44 206-6228 Spacer Call for price 1 usually ships 1-5 days
45 206-6229 Side brush cover $67.18 1 usually ships 1-5 days
47 206-6230 Screw $5.50 3 usually ships 1-5 days
48 206-6231 Side brush flange $97.04 1 usually ships 1-5 days
49 206-6025 Side brush $112.06 1 usually ships 1-5 days
51 206-6146 Washer Call for price 1 usually ships 1-5 days
52 206-6232 Knob $35.61 1 usually ships 1-5 days
53 206-6233 Central brush shaft Call for price 1 usually ships 1-5 days
N/S 206-6193 Shaker motor filter Call for price 1 usually ships 1-5 days
N/S 206-6194 Vacuum fan Call for price 1 usually ships 1-5 days
