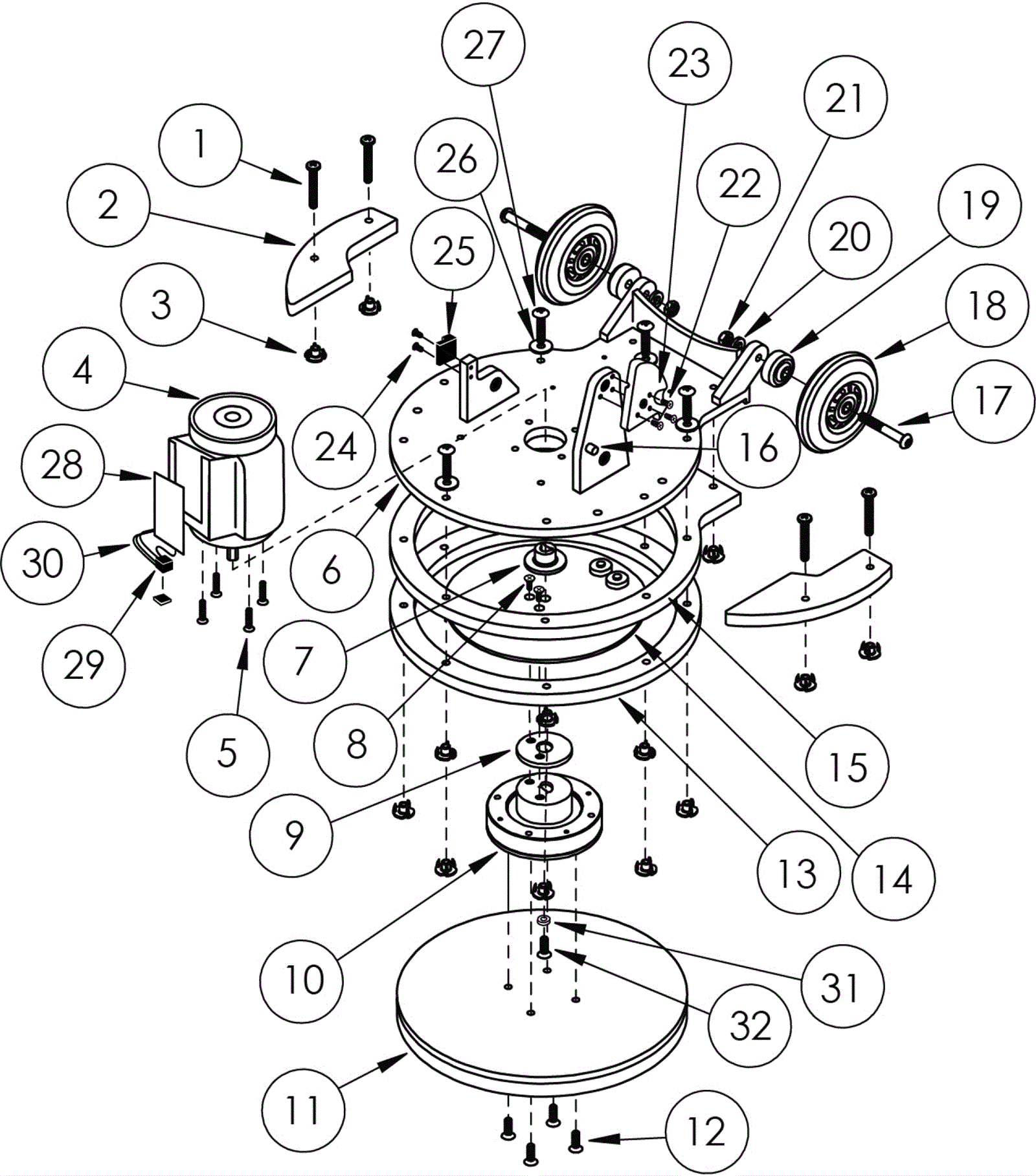

MSB-11 ORB Base and Driver Plate Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-1755 Screw 1/4-20 x 1 3/4 inch $27.15 4 usually ships 5-15 days
2 206-1756 Weight plate $169.26 2 usually ships 5-15 days
3 206-1757 Bumper threaded insert $17.74 16 usually ships 5-15 days
4 206-1758 36V motor $789.40 1 usually ships 5-15 days
5 206-1759 Motor mounting screw 10-32 x 3/4 inch $17.74 4 usually ships 5-15 days
6 206-1760 Base plate $350.13 1 usually ships 5-15 days
7 206-1761 Shaft support $201.56 1 usually ships 5-15 days
8 206-1762 Bearing mounting screw 1/4-20 x 3/4 inch $25.96 2 usually ships 5-15 days
9 206-1763 Bearing assembly washer $52.99 1 usually ships 5-15 days
10 206-1764 Bearing assembly $531.01 1 usually ships 5-15 days
11 206-1765 Driver assembly $225.63 1 usually ships 5-15 days
12 206-1766 Driver mounting screw 1/4-20 x 3/4 inch $31.83 4 usually ships 5-15 days
13 206-1767 Lower bumping ring $159.57 1 usually ships 5-15 days
14 206-1768 Counter weight plate $196.27 1 usually ships 5-15 days
15 206-1769 Upper bumper ring $159.57 1 usually ships 5-15 days
16 206-1770 Ear stopper pin $37.71 1 usually ships 5-15 days
17 206-1771 Wheel mounting screw $31.25 2 usually ships 5-15 days
18 206-1772 4 inch wheel $84.69 2 usually ships 5-15 days
19 206-1773 Wheel spacer $62.68 2 usually ships 5-15 days
20 206-1774 Wheel mounting washer 5/16 x 5/8 inch $17.74 2 usually ships 5-15 days
21 206-1775 Wheel mounting lock nut 5/16 inch $20.68 2 usually ships 5-15 days
22 206-1776 Pull pin slide mounting screw 10-24 x 1/2 inch $20.68 3 usually ships 5-15 days
23 206-1777 Pull pin slide $78.99 1 usually ships 5-15 days
24 206-1778 Magnet mounting switch 6-32 x 3/8 inch $19.21 2 usually ships 5-15 days
25 206-1779 Reed switch magnet $49.46 1 usually ships 5-15 days
26 206-1780 Base mounting washer $17.74 4 usually ships 5-15 days
27 206-1781 Base mounting screw $26.85 4 usually ships 5-15 days
28 206-1782 Motor circuit board $385.66 1 usually ships 5-15 days
29 206-1783 Relay $98.20 1 usually ships 5-15 days
30 206-1784 Relay to circuit board wiring assembly $43.30 1 usually ships 5-15 days
31 206-1785 Counterweight washer $17.74 1 usually ships 5-15 days
32 206-1786 Counterweight mounting screw 10-32 x 9/16 inch $19.21 1 usually ships 5-15 days
