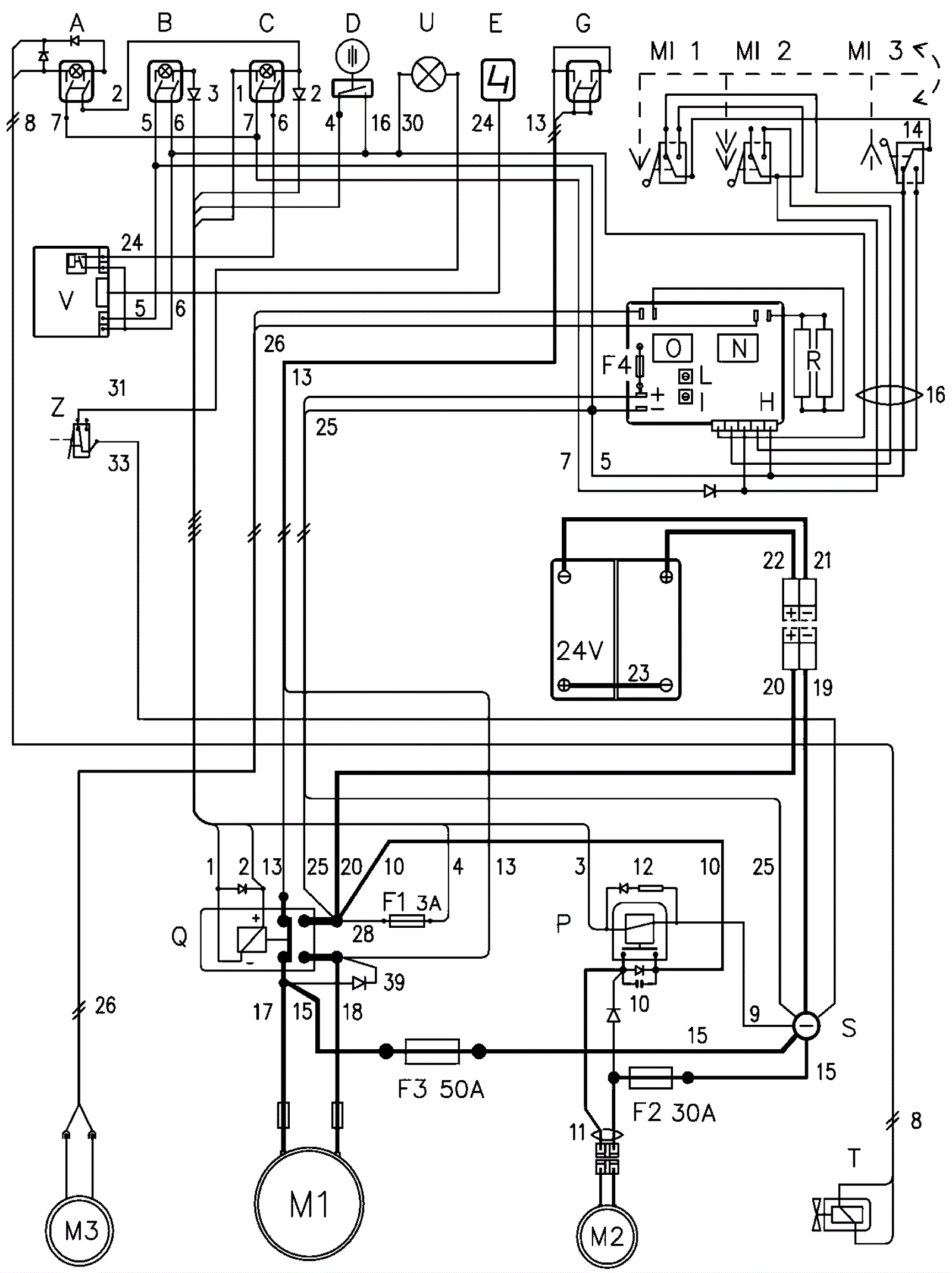

SCRUBMASTER 20BT Wiring Diagram 1

#PartDescriptionPriceReqNotesAvailability
A 206-5177 Bipolar switch green (OBSOLETE) Call for price (solenoid valve solution) usually ships 1-5 days
B 206-5177 Bipolar switch green (OBSOLETE) Call for price (vacuum motor) usually ships 1-5 days
C 206-5177 Bipolar switch green (OBSOLETE) Call for price (brush motor) usually ships 1-5 days
D 189-6342 Key switch contact $33.83 (on/off general) usually ships 11-24 days
E 206-0720 Battery signal $12.12 usually ships 5-15 days
F1 206-0685 3amp fuse (OBSOLETE) $5.96 usually ships 1-5 days
F2 206-0702 30amp fuse (OBSOLETE) $2.87 (vacuum motor) usually ships 5-15 days
F3 206-0701 Fuse 50A (OBSOLETE) Call for price (brush motor) usually ships 1-5 days
F4 206-0877 Fuse 30amp (OBSOLETE) Call for price (chopper card) usually ships 1-5 days
G 206-5179 Bipolar switch yellow (OBSOLETE) Call for price usually ships 1-5 days
H 206-1028 24V chopper card without relays (OBSOLETE) Call for price usually ships 1-5 days
I N/A Not available Call for price (trimmer adjustment 1st speed) usually ships 3-26 days
l N/A Not available Call for price (trimmer adjustment acceleration) usually ships 3-26 days
M1 206-5127 Motor (OBSOLETE) $137.22 usually ships 1-5 days
M2 206-5181 24V vacuum motor Call for price usually ships 1-5 days
M3 189-4373 24V drive motor $1,750.60 usually ships 1-5 days
MI-1 189-6349 Microswitch $28.27 (1st speed) usually ships 11-24 days
MI-2 189-6349 Microswitch $28.27 (2nd speed) usually ships 11-24 days
MI-3 189-6349 Microswitch $28.27 (backwards) usually ships 11-24 days
N 206-1029 24V 20amp relay (OBSOLETE) Call for price (backwards) usually ships 1-5 days
O 206-1029 24V 20amp relay (OBSOLETE) Call for price (forwards) usually ships 1-5 days
P 206-5354 24V 30amp relay (OBSOLETE) $35.70 usually ships 11-24 days
Q 206-5184 Remote control switch 24v double w/ diode (OBSOLETE) Call for price usually ships 1-5 days
R 206-1030 Braking resistors (OBSOLETE) Call for price usually ships 1-5 days
S 206-0706 Insulator M5 (OBSOLETE) Call for price usually ships 1-5 days
U 206-1031 36V parking lamp (red) (OBSOLETE) Call for price usually ships 1-5 days
1 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
2 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
3 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
4 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
5 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
6 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
7 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
8 206-1032 Cables and connectors (OBSOLETE) Call for price usually ships 1-5 days
9 206-1033 Cable black no. 9 (OBSOLETE) Call for price usually ships 1-5 days
10 206-1034 Cables vacuum motor no. 10-11 (OBSOLETE) Call for price usually ships 1-5 days
11 206-1034 Cables vacuum motor no. 10-11 (OBSOLETE) Call for price usually ships 1-5 days
12 206-0732 Diode and Resistances with Terminal (OBSOLETE) Call for price usually ships 1-5 days
13 206-5196 Series cables and connector brush release no.13 (OBSOLETE) Call for price usually ships 1-5 days
14 206-1035 Cable brown no. 14 (OBSOLETE) Call for price usually ships 1-5 days
15 206-1025 Cable black no. 15 (OBSOLETE) Call for price usually ships 1-5 days
16 206-1036 Cables connector chopper card no. 16 (OBSOLETE) Call for price usually ships 1-5 days
17 206-5198 2 cables black-red brush motor no. 17-18 (OBSOLETE) Call for price usually ships 1-5 days
18 206-5198 2 cables black-red brush motor no. 17-18 (OBSOLETE) Call for price usually ships 1-5 days
19 206-1026 2 cables black-red and connector 80a (OBSOLETE) Call for price usually ships 1-5 days
20 206-1026 2 cables black-red and connector 80a (OBSOLETE) Call for price usually ships 1-5 days
21 250-1232 Female connector $70.38 usually ships 1-5 days
22 250-1232 Female connector $70.38 usually ships 1-5 days
23 206-5201 Cable bridge with battery terminals (OBSOLETE) Call for price usually ships 1-5 days
24 206-0737 Cable display Battery signsl (OBSOLETE) Call for price usually ships 1-5 days
25 206-1037 2 cables black-red chopper card (OBSOLETE) Call for price usually ships 1-5 days
26 N/A Not available Call for price (2 cables blue-brown chopper card) usually ships 3-26 days
28 206-1039 Cable red no. 28 (OBSOLETE) Call for price usually ships 1-5 days
31 206-1040 Cable black no. 31 (OBSOLETE) Call for price usually ships 1-5 days
33 206-1041 Cable black no. 33 (OBSOLETE) Call for price usually ships 1-5 days
39 N/A Not available Call for price (cable black with dioe no. 39) usually ships 3-26 days
