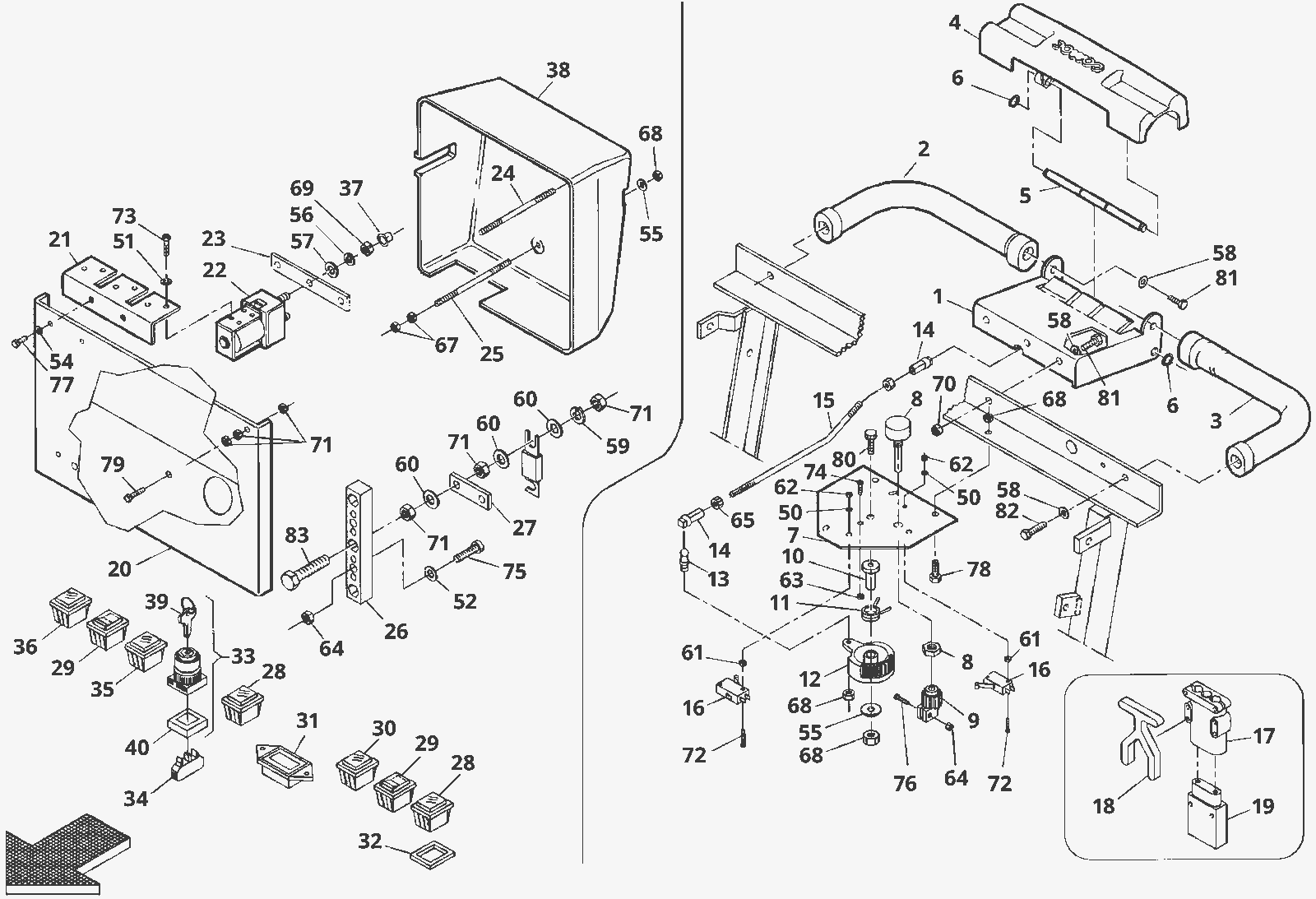

Electrical Components and Drive Control Assembly

#PartDescription ReqNotesAvailability
1 206-5638 Support (OBSOLETE) 1
2 206-5639 Right hand handle bar (OBSOLETE) 1
3 206-5640 Left hand handle bar (OBSOLETE) 1
4 206-5641 Lever (OBSOLETE) 1
5 206-5642 Pin (OBSOLETE) 1
6 206-0849 Seeger ring (OBSOLETE) 2
7 206-5643 Control base (OBSOLETE) 1
8 206-5644 Potentiometer (OBSOLETE) 1
9 206-5645 Pinion (OBSOLETE) 1
10 206-5646 Bushing (OBSOLETE) 1
11 206-5647 Spring (OBSOLETE) 1
12 206-5648 Cam wheel (OBSOLETE) 1
13 206-5583 Pin (OBSOLETE) 2
14 206-5584 Adjustable head (OBSOLETE) 2
15 206-5649 Tie rod (OBSOLETE) 1
16 206-5182 Microswitch 3x22 (OBSOLETE) 2
17 206-1026 2 cables black-red and connector 80a (OBSOLETE) 1
18 206-1015 Connector lever (OBSOLETE) 1
19 250-1232 Female connector 1
20 206-5650 Panel (OBSOLETE) 1
21 206-5651 Support (OBSOLETE) 1
22 206-5652 Remote control switch (OBSOLETE) 3
23 206-5653 Bridge (OBSOLETE) 1
24 206-5654 Stud bolt (OBSOLETE) 2
25 206-0603 Bolt stud (OBSOLETE) 1
26 206-5655 Fuseholder (OBSOLETE) 2
27 206-5656 Bridge (OBSOLETE) 1
28 206-5657 Signal lamp (green) (OBSOLETE) 2
29 206-5215 Toggle switch (OBSOLETE) 2
30 206-0720 Battery signal 1
31 206-5658 Hour meter (OBSOLETE) 1 (optional)
32 206-5344 Gasket (OBSOLETE) 7
33 206-5214 Master switch (OBSOLETE) 1 (includes 39-40)
34 189-6342 Key switch contact 1
35 206-1043 Switch (OBSOLETE) 1
36 206-5659 Signal lamp (red) (OBSOLETE) 1
37 206-0880 Cover (OBSOLETE) 6
38 206-5660 Protection (OBSOLETE) 1
39 189-2658 Key 1
40 189-6343 Switch flange 1
50 206-1018 Washer (OBSOLETE) 2
51 206-0534 Washer lock (OBSOLETE) 1
52 N/A Not available 1 (washer)
54 206-0607 Washer (OBSOLETE) 1
55 206-0554 Washer (OBSOLETE) 2
56 206-0712 Washer (OBSOLETE) 1
57 206-0713 Washer (OBSOLETE) 1
58 206-0540 Washer (OBSOLETE) 3
60 206-5661 Washer brass (OBSOLETE) 3
61 206-5662 Nut M3 brass (OBSOLETE) 2
62 206-5348 Nut lock (OBSOLETE) 2
63 206-5349 Nut (OBSOLETE) 1
64 206-0606 Nut lock (OBSOLETE) 2
65 206-0636 Nut (OBSOLETE) 1
66 206-0498 Lock nut (OBSOLETE) 1
67 999-1308 Nut M6-1 hex stainless steel 1
68 206-0553 Nut lock (OBSOLETE) 3
69 206-0711 Nut brass (OBSOLETE) 1
70 206-0494 Nut lock (OBSOLETE) 1
71 206-5663 Nut M10 brass (OBSOLETE) 4
72 206-5350 Screw M3 x 20mm (OBSOLETE) 2
73 206-5471 Screw 1
74 206-5631 Screw M4x16 (OBSOLETE) 1
75 206-5664 Screw M4x20 (OBSOLETE) 1
76 206-5665 Screw M4x20 (OBSOLETE) 1
77 206-0682 Screw (OBSOLETE) 1
78 206-0555 Screw (OBSOLETE) 1
79 206-5508 Screw M6x25 (OBSOLETE) 1
80 206-0699 Screw (OBSOLETE) 1
81 206-1013 Screw (OBSOLETE) 2
82 206-5134 Screw (OBSOLETE) 1
83 206-5666 Screw M10x16 (OBSOLETE) 1
N/S 206-0912 Washer (OBSOLETE) 1
N/S 250-1640 Screw M8 x 14mm 1
