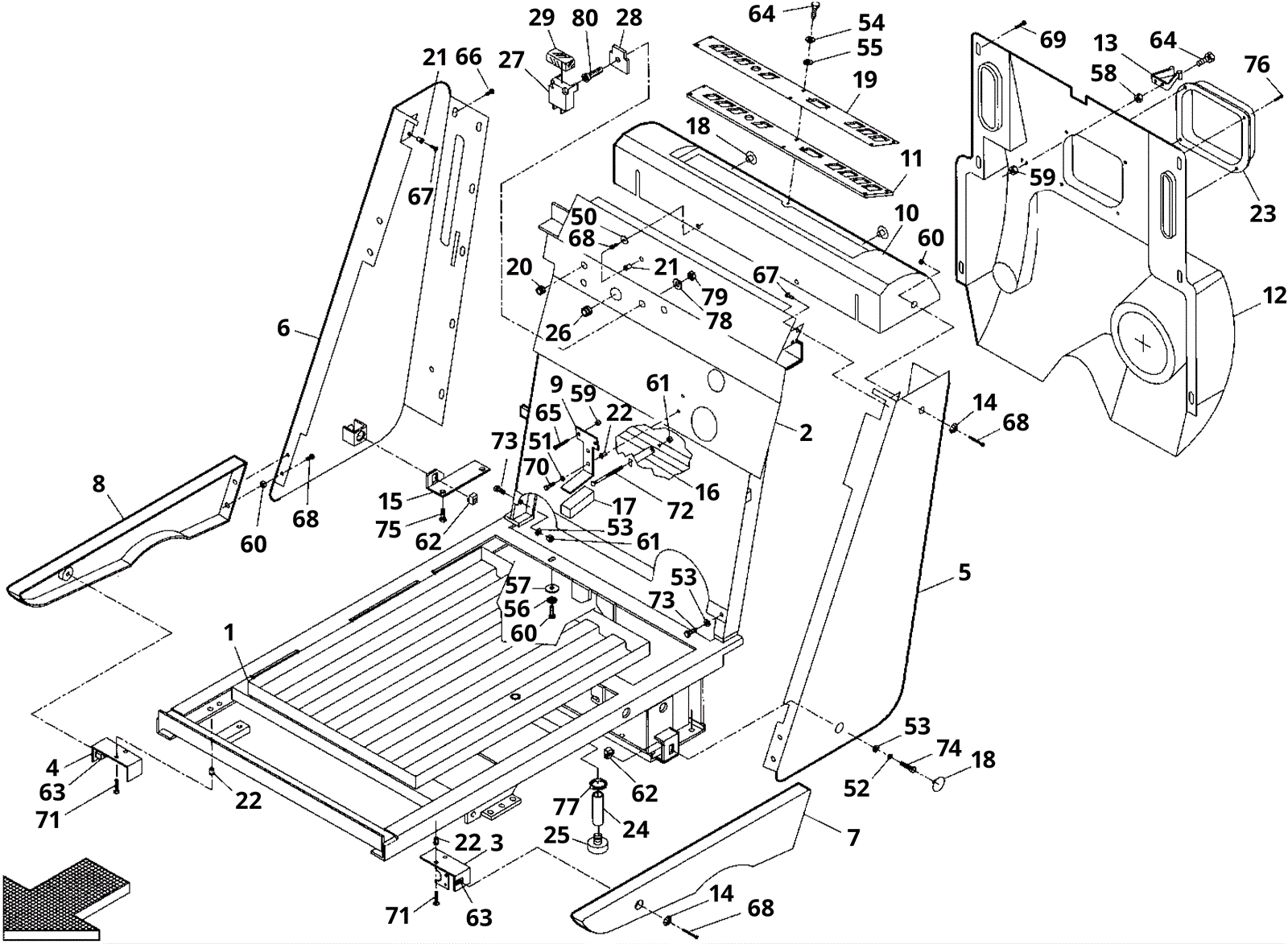

Body Assembly

#PartDescription ReqNotesAvailability
1 206-5611 Panel (OBSOLETE) 1
2 206-5612 Plate (OBSOLETE) 1
3 206-5609 Support (OBSOLETE) 1
4 206-5613 Right hand support (OBSOLETE) 1
5 206-5614 Left hand panel (OBSOLETE) 1
6 206-5615 Right hand panel (OBSOLETE) 1
7 206-5616 Left hand cover (OBSOLETE) 1
8 206-5617 Right hand cover (OBSOLETE) 1
9 206-5618 Support (OBSOLETE) 1
10 206-5619 Instrument board (OBSOLETE) 1
11 206-5620 Plate (OBSOLETE) 1
12 206-5621 Rear cover (OBSOLETE) 1
13 206-0571 Hook (OBSOLETE) 1
14 206-0573 Washer special (OBSOLETE) 2
15 206-5622 Support (OBSOLETE) 1
16 206-4967 Pipe (OBSOLETE) 1
17 206-5623 Gasket (OBSOLETE) 1
18 206-5624 Cap (OBSOLETE) 3
19 206-5625 Decal (OBSOLETE) 1
20 206-0602 Fairlead (OBSOLETE) 2
21 206-5626 M5 insert (OBSOLETE) 8
22 206-5627 M6 insert (OBSOLETE) 9
23 206-5628 Cover (OBSOLETE) 1
24 206-5629 Hose (OBSOLETE) 1
25 206-0965 Cap (OBSOLETE) 1
26 206-5345 Fairlead (OBSOLETE) 1
27 206-0686 Fuse holder (OBSOLETE) 1
28 206-0687 Plaque (OBSOLETE) 1
29 206-5353 Cover (OBSOLETE) 1
50 206-0535 Washer 1
51 206-0607 Washer (OBSOLETE) 1
52 206-5171 Washer lock (OBSOLETE) 1
53 206-0540 Washer (OBSOLETE) 3
54 206-0698 Washer (OBSOLETE) 1
55 206-5630 Washer (OBSOLETE) 1
56 206-0712 Washer (OBSOLETE) 1
57 206-0035 Washer (OBSOLETE) 1
58 206-5349 Nut (OBSOLETE) 1
59 206-0606 Nut lock (OBSOLETE) 2
60 206-0498 Lock nut (OBSOLETE) 3
61 206-0494 Nut lock (OBSOLETE) 2
62 999-1651 Nut M8-1 hex stainless steel 2
63 206-0979 Nut (OBSOLETE) 2
64 206-5631 Screw M4x16 (OBSOLETE) 2
65 206-5632 Screw M4x30 (OBSOLETE) 1
66 206-0754 Screw M5 x 10 (OBSOLETE) 1
67 206-0709 Screw (OBSOLETE) 2
68 206-5633 Screw M5x16 (OBSOLETE) 4
69 206-5634 Screw M5x20 (OBSOLETE) 1
70 206-0555 Screw (OBSOLETE) 1
71 206-5558 Screw M6x25 (OBSOLETE) 2
72 206-5635 Screw M6x100 (OBSOLETE) 1
73 206-5134 Screw (OBSOLETE) 2
74 206-4991 Screw M8x22 (OBSOLETE) 1
75 206-5295 Bolt M10 x 25 hex (OBSOLETE) 1
76 206-5636 Screw M4x20 (OBSOLETE) 1
77 206-0620 Clamp (OBSOLETE) 1
78 206-1018 Washer (OBSOLETE) 1
79 206-5359 Nut (OBSOLETE) 1
80 206-5637 Screw M3x10 (OBSOLETE) 1
