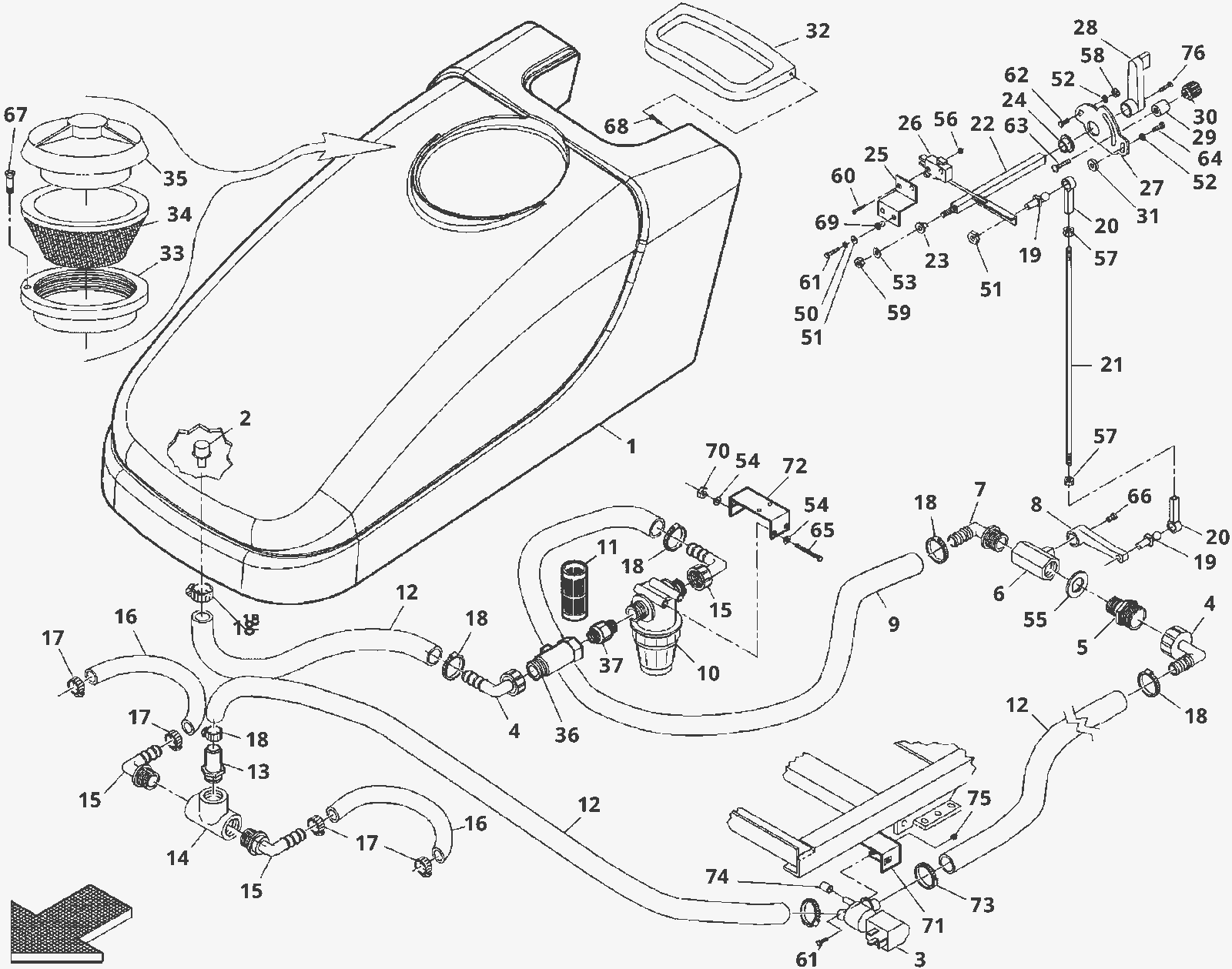

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 206-5570 Solution tank (OBSOLETE) 1
2 206-5571 Connector (OBSOLETE) 1
3 206-0028 Solenoid valve (OBSOLETE) 1
4 206-5572 Connector (OBSOLETE) 3
5 206-0970 1/2 inch fitting (OBSOLETE) 1
6 206-5216 Manual solution valve (OBSOLETE) 1
7 206-5573 Connector (OBSOLETE) 2
8 206-5574 Cock lever (OBSOLETE) 1
9 206-5575 Hose (OBSOLETE) 1
10 206-5427 Solution filter (OBSOLETE) 1
11 206-5576 Filter catridge (OBSOLETE) 1
12 206-5577 Hose (OBSOLETE) 3
13 206-5578 Connector (OBSOLETE) 1
14 206-5579 Fitting (OBSOLETE) 1
15 206-5580 Connector (OBSOLETE) 3
16 206-5581 Hose (OBSOLETE) 2
17 206-5582 Clamp (OBSOLETE) 4
18 206-0620 Clamp (OBSOLETE) 6
19 206-5583 Pin (OBSOLETE) 2
20 206-5584 Adjustable head (OBSOLETE) 2
21 206-5585 Rod (OBSOLETE) 1
22 206-5586 Valve lever (OBSOLETE) 1
23 206-5587 Bushing (OBSOLETE) 1
24 206-5588 Bushing (OBSOLETE) 1
25 206-5589 Support (OBSOLETE) 1
26 206-0716 Microswitch (OBSOLETE) 1
27 206-5590 Adjuster (OBSOLETE) 1
28 206-5591 Valve lever (OBSOLETE) 1
29 206-5592 Spacer (OBSOLETE) 1
30 206-5593 Knob (OBSOLETE) 1
31 206-5594 Special washer (OBSOLETE) 1
32 206-5595 Door (OBSOLETE) 1
33 206-5596 Ring with gasket (OBSOLETE) 1
34 206-5597 Filter (OBSOLETE) 1
35 206-5598 Cover (OBSOLETE) 1
36 206-5599 Cock (OBSOLETE) 1
37 206-5600 Nipple (OBSOLETE) 1
50 206-0534 Washer lock (OBSOLETE) 1
51 206-0913 Washer (OBSOLETE) 2
52 206-0508 Washer (OBSOLETE) 2
53 206-0607 Washer (OBSOLETE) 1
54 206-0540 Washer (OBSOLETE) 1
55 206-5529 Washer (OBSOLETE) 1
56 206-5348 Nut lock (OBSOLETE) 1
57 206-0636 Nut (OBSOLETE) 2
58 206-5601 Nut M5 brass (OBSOLETE) 1
59 206-0553 Nut lock (OBSOLETE) 1
60 206-5350 Screw M3 x 20mm (OBSOLETE) 1
61 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 2
62 206-5602 Screw M5x8 (OBSOLETE) 1
63 206-0911 Screw (OBSOLETE) 1
64 206-0574 Screw (OBSOLETE) 1
65 206-5603 Screw M8x70 (OBSOLETE) 1
66 206-5604 Screw 3/16 inch x 1/4 inch (OBSOLETE) 1
67 206-5605 Screw (OBSOLETE) 1
68 206-5606 Screw (OBSOLETE) 1
69 206-5607 Insert M4 (OBSOLETE) 2
70 206-0494 Nut lock (OBSOLETE) 1
71 206-5608 Support (OBSOLETE) 1
72 206-5609 Support (OBSOLETE) 1
73 206-0623 Clamp (OBSOLETE) 2
74 206-0029 Plug (OBSOLETE) 1
75 206-0606 Nut lock (OBSOLETE) 2
76 206-5610 Screw (OBSOLETE) 1
