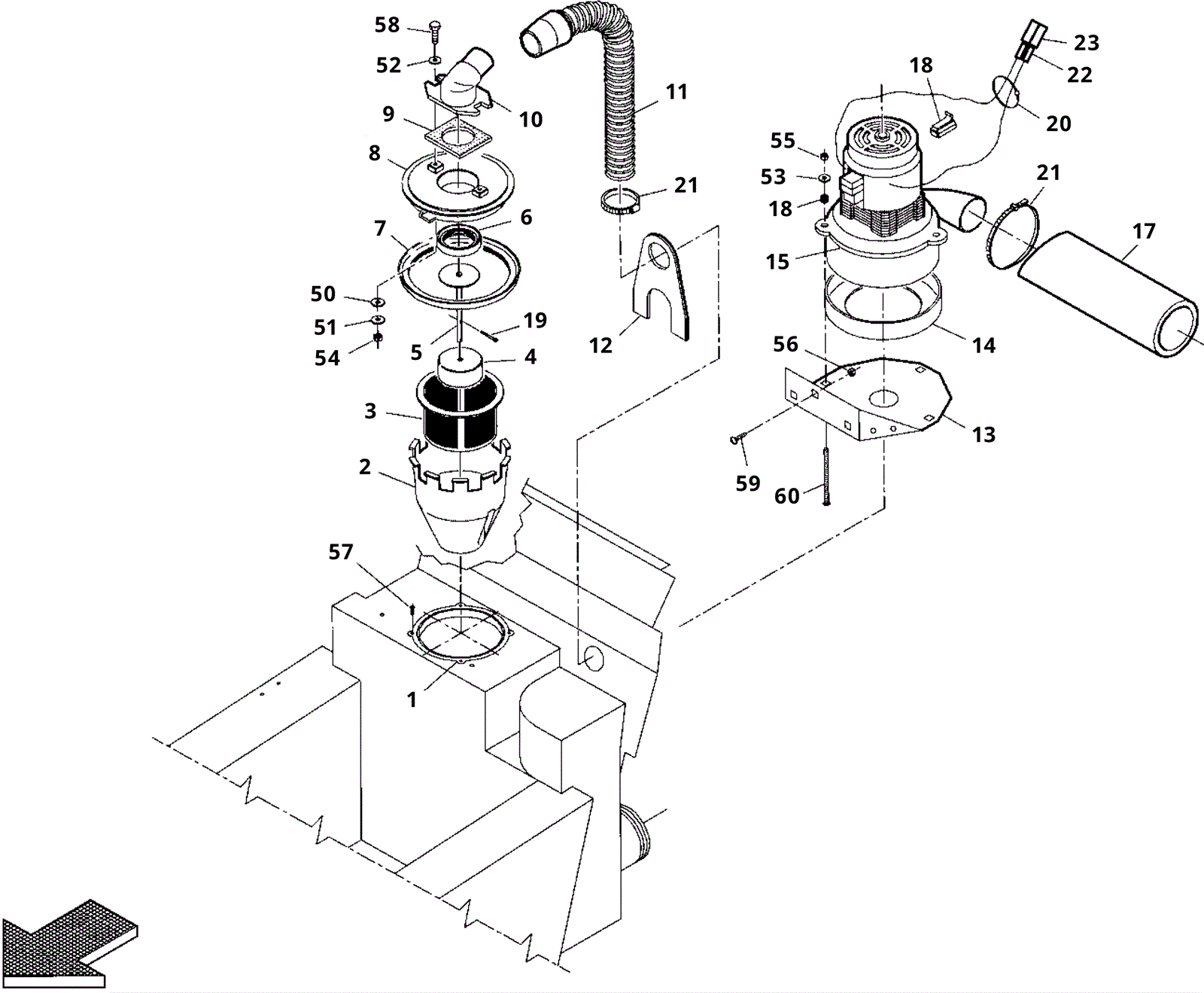

SCRUBMASTER 33B Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0585 Filter holder (OBSOLETE) Call for price 1 usually ships 1-5 days
2 206-0597 Protection (OBSOLETE) $26.67 1 usually ships 12-16 days
3 206-5561 Filter (OBSOLETE) Call for price 1 usually ships 12-16 days
4 206-0595 Float $48.14 1 usually ships 1-5 days
5 206-5562 Rod (OBSOLETE) Call for price 1 usually ships 12-16 days
6 206-0592 Gasket (OBSOLETE) $13.01 1 usually ships 1-5 days
7 206-0590 Gasket (OBSOLETE) $21.20 1 usually ships 12-16 days
8 206-0589 Cover $22.94 1 usually ships 12-16 days
9 189-9149 Gasket $5.50 1 usually ships 14-27 days
10 206-0587 Opening (OBSOLETE) $40.32 1 usually ships 12-16 days
11 206-5555 Suction hose (OBSOLETE) Call for price 1 usually ships 12-16 days
12 206-5563 Protection (OBSOLETE) Call for price 1 usually ships 12-16 days
13 206-5564 Support (OBSOLETE) Call for price 1 usually ships 12-16 days
14 206-5565 Shroud (OBSOLETE) Call for price 1 usually ships 12-16 days
15 206-5221 Vacuum motor (OBSOLETE) Call for price 1 usually ships 1-5 days
17 206-5566 Deadening hose (OBSOLETE) Call for price 1 usually ships 12-16 days
18 206-0602 Fairlead (OBSOLETE) Call for price 3 usually ships 1-5 days
19 206-0594 Split pin (OBSOLETE) $1.85 2 usually ships 1-5 days
20 189-6325 Wire tie $2.38 2 usually ships 14-27 days
21 206-1007 Clamp $2.57 1 usually ships 1-5 days
22 283-1834 CONNECTOR CONTACT 30A $3.33 2 usually ships 26-37 days
23 189-6323 30amp electrical housing connector $22.68 2 usually ships 14-27 days
50 206-0605 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
51 206-5265 Washer 4 x 9 (OBSOLETE) Call for price 1 usually ships 1-5 days
52 206-0535 Washer $1.91 1 usually ships 12-16 days
53 206-0554 Washer (OBSOLETE) $1.56 1 usually ships 1-5 days
54 206-5319 Nut (OBSOLETE) $2.16 1 usually ships 1-5 days
55 206-0553 Nut lock (OBSOLETE) Call for price 1 usually ships 1-5 days
56 206-0498 Lock nut (OBSOLETE) $1.88 1 usually ships 1-5 days
57 206-0581 Screw (OBSOLETE) $1.67 1 usually ships 1-5 days
58 206-0604 Screw $1.91 1 usually ships 12-16 days
59 206-5567 Screw M5x16 (OBSOLETE) Call for price 1 usually ships 12-16 days
60 206-5568 Screw M6x90 (OBSOLETE) Call for price 1 usually ships 12-16 days
N/S 206-1004 Carbon brush motor (OBSOLETE) Call for price 2 usually ships 1-5 days
KIT1 206-5569 Filter Assembly (OBSOLETE) Call for price 1 (includes 2-7, 19) usually ships 12-16 days
