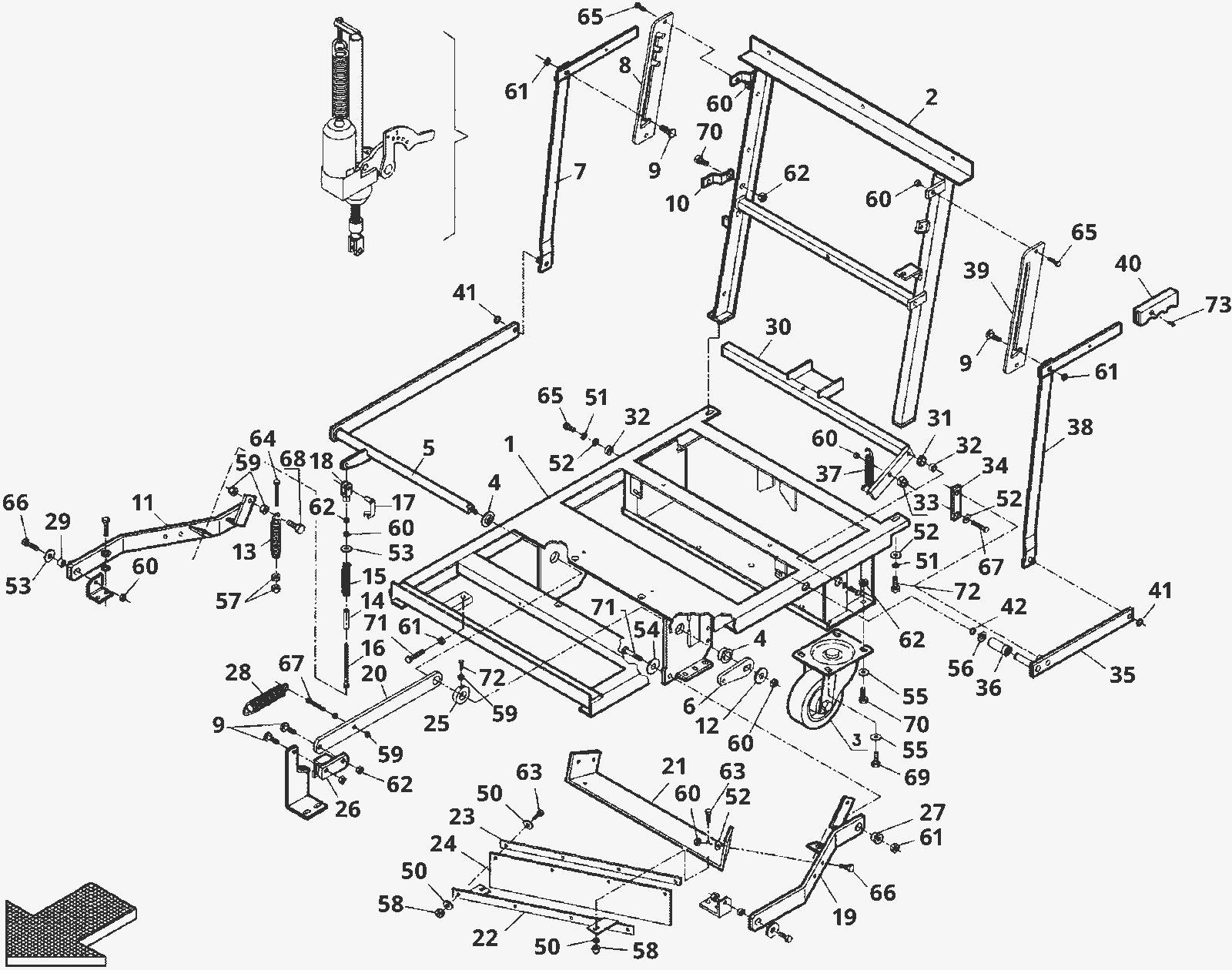

Frame Assembly

#PartDescription ReqNotesAvailability
1 206-4957 Frame (OBSOLETE) 1
2 206-4958 Rear frame (OBSOLETE) 1
3 206-4959 Castor wheel (OBSOLETE) 2
4 206-4960 Bushing (OBSOLETE) 2
5 206-4961 Shaft (OBSOLETE) 1
6 206-4962 Left hand lever (OBSOLETE) 1
7 206-4963 Lever (OBSOLETE) 1
8 206-4964 Blade (OBSOLETE) 1
9 206-0845 Pin (OBSOLETE) 4
10 206-4965 Bracket (OBSOLETE) 1
11 206-4966 Right arm (OBSOLETE) 1
12 206-4950 Washer (OBSOLETE) 1
13 189-6223 Spring 2
14 206-4967 Pipe (OBSOLETE) 2
15 206-4968 Spring (OBSOLETE) 2
16 206-4969 Screw M8x130 (OBSOLETE) 2
17 206-0916 Pin (OBSOLETE) 2
18 206-0918 Fork (OBSOLETE) 2
19 206-4970 Left arm (OBSOLETE) 1
20 206-4971 Arm (OBSOLETE) 1
21 206-4972 Bar (OBSOLETE) 1
22 206-4973 Support (OBSOLETE) 1
23 206-4974 Blade (OBSOLETE) 1
24 206-4975 Splash guard (OBSOLETE) 1
25 206-4976 Stop ring (OBSOLETE) 1
26 206-4977 Joint (OBSOLETE) 1
27 206-4978 Bushing (OBSOLETE) 2
28 206-4979 Spring (OBSOLETE) 1
29 206-4980 Bushing (OBSOLETE) 2
30 206-4981 Shaft (OBSOLETE) 1
31 206-4982 Bushing (OBSOLETE) 1
32 206-5116 Bushing (OBSOLETE) 2
33 206-4983 Bushing (OBSOLETE) 1
34 206-4984 Rod (OBSOLETE) 1
35 206-4985 Lever (OBSOLETE) 1
36 206-0847 Bushing (OBSOLETE) 1
37 250-1115 Spring 1
38 206-4986 Lever (OBSOLETE) 1
39 206-4987 Blade (OBSOLETE) 1
40 206-5156 Knob (OBSOLETE) 2
41 206-0849 Seeger ring (OBSOLETE) 2
42 206-0667 Seeger ring (OBSOLETE) 1
50 206-4988 Washer 6x12 (OBSOLETE) 3
51 206-0712 Washer (OBSOLETE) 2
52 206-0540 Washer (OBSOLETE) 4
53 206-0035 Washer (OBSOLETE) 2
55 206-0504 Washer (OBSOLETE) 2
56 206-0848 Washer (OBSOLETE) 1
57 999-1308 Nut M6-1 hex stainless steel 1
58 206-0655 Nut lock (OBSOLETE) 2
59 206-0556 Nut (OBSOLETE) 3
60 206-0494 Nut lock (OBSOLETE) 7
61 206-5103 Nut (OBSOLETE) 4
62 206-0505 Nut lock 4
63 206-4989 Screw M6x16 (OBSOLETE) 2
64 206-4990 Screw M6x60 (OBSOLETE) 1
65 206-4991 Screw M8x22 (OBSOLETE) 3
66 206-0503 Screw (OBSOLETE) 2
67 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
68 206-0751 Screw M8 x 45 (OBSOLETE) 1
69 206-4955 Screw M10x12 (OBSOLETE) 1
70 206-4992 Screw M10x22 (OBSOLETE) 2
71 206-4993 Screw M10x55 (OBSOLETE) 2
72 206-5134 Screw (OBSOLETE) 2
73 206-0754 Screw M5 x 10 (OBSOLETE) 1
