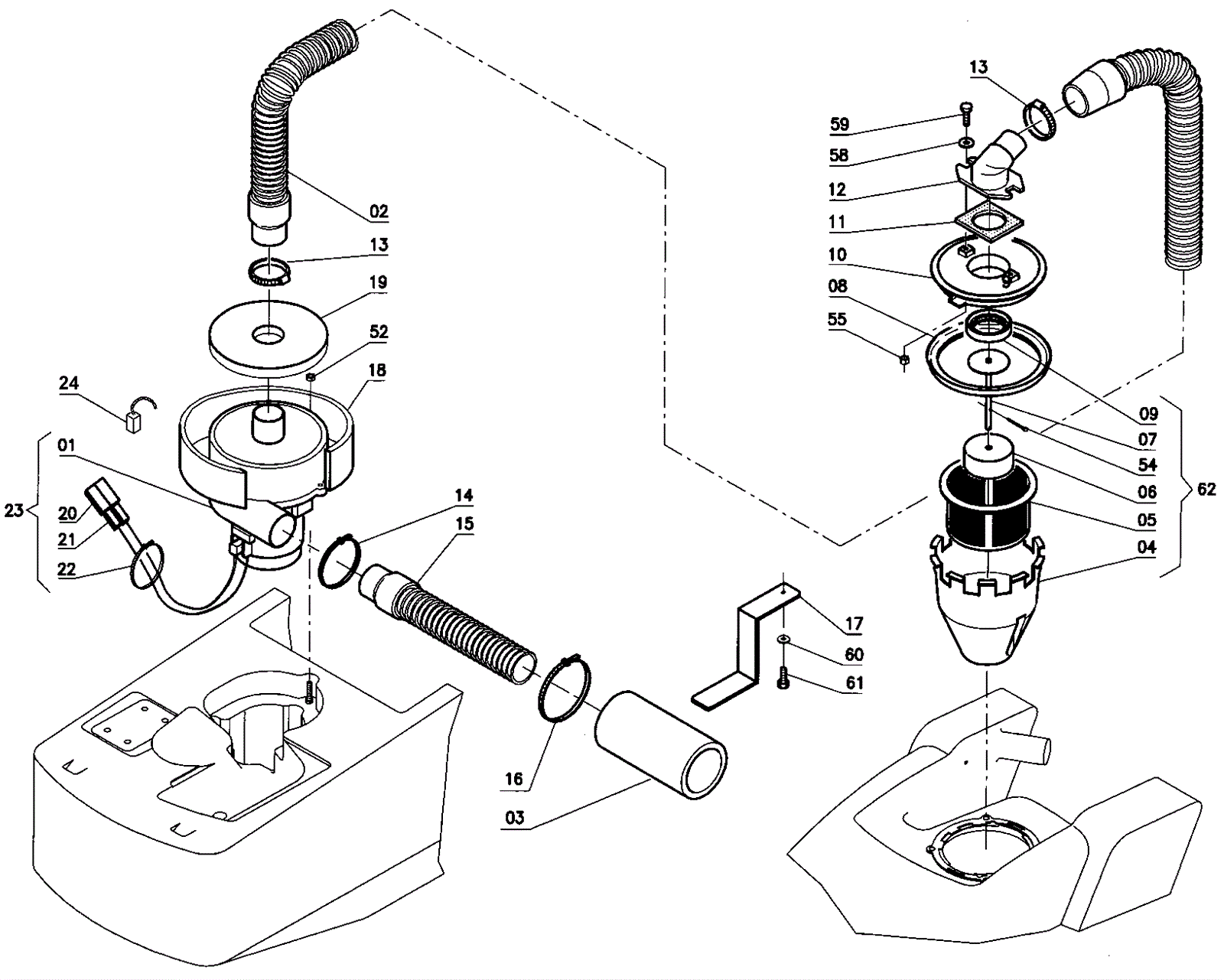

FLOORMASTER 18B Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
01 206-5315 Vacuum motor $357.68 1 usually ships 1-5 days
02 206-0742 Vacuum hose (OBSOLETE) $69.63 1 usually ships 5-15 days
03 206-1005 Sound deadening hose (OBSOLETE) Call for price 1 usually ships 1-5 days
04 206-0597 Protection (OBSOLETE) $26.67 1 usually ships 5-15 days
05 206-0596 Filter (OBSOLETE) $37.86 1 usually ships 1-5 days
06 206-0595 Float $48.14 1 usually ships 1-5 days
07 206-0593 Rod (OBSOLETE) $48.17 1 usually ships 1-5 days
08 206-0590 Gasket (OBSOLETE) $21.20 1 usually ships 5-15 days
09 206-0592 Gasket (OBSOLETE) $13.01 1 usually ships 1-5 days
10 206-0589 Cover $22.94 1 usually ships 5-15 days
11 189-9149 Gasket $5.50 1 usually ships 11-24 days
12 206-0587 Opening (OBSOLETE) $40.32 1 usually ships 5-15 days
13 206-0599 Clamp (OBSOLETE) Call for price 1 usually ships 1-5 days
14 206-5431 Clamp $6.63 1 usually ships 1-5 days
15 206-1006 Pipe (OBSOLETE) Call for price 1 usually ships 1-5 days
16 206-1007 Clamp $2.57 1 usually ships 1-5 days
17 206-1008 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
18 206-1009 Deading hose (OBSOLETE) Call for price 1 usually ships 1-5 days
19 189-5142 Sound deadening foam $7.54 1 usually ships 11-24 days
20 189-6323 30amp electrical housing connector $22.68 2 usually ships 11-24 days
21 283-1834 CONNECTOR CONTACT 30A $3.33 2 usually ships 6-27 days
22 189-6325 Wire tie $2.38 2 usually ships 11-24 days
23 206-5181 24V vacuum motor Call for price 1 (includes 01, 20-22, 24) usually ships 1-5 days
24 206-1004 Carbon brush motor (OBSOLETE) Call for price 2 usually ships 1-5 days
52 206-0655 Nut lock (OBSOLETE) $5.85 1 usually ships 1-5 days
54 206-0594 Split pin (OBSOLETE) $1.85 2 usually ships 1-5 days
55 206-1011 Lock nut (OBSOLETE) Call for price 2 usually ships 1-5 days
59 206-0584 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
60 206-0540 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
61 206-1013 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
62 206-0610 Float assembly (OBSOLETE) $146.62 1 (includes 04-07, 09, 54) usually ships 5-15 days
