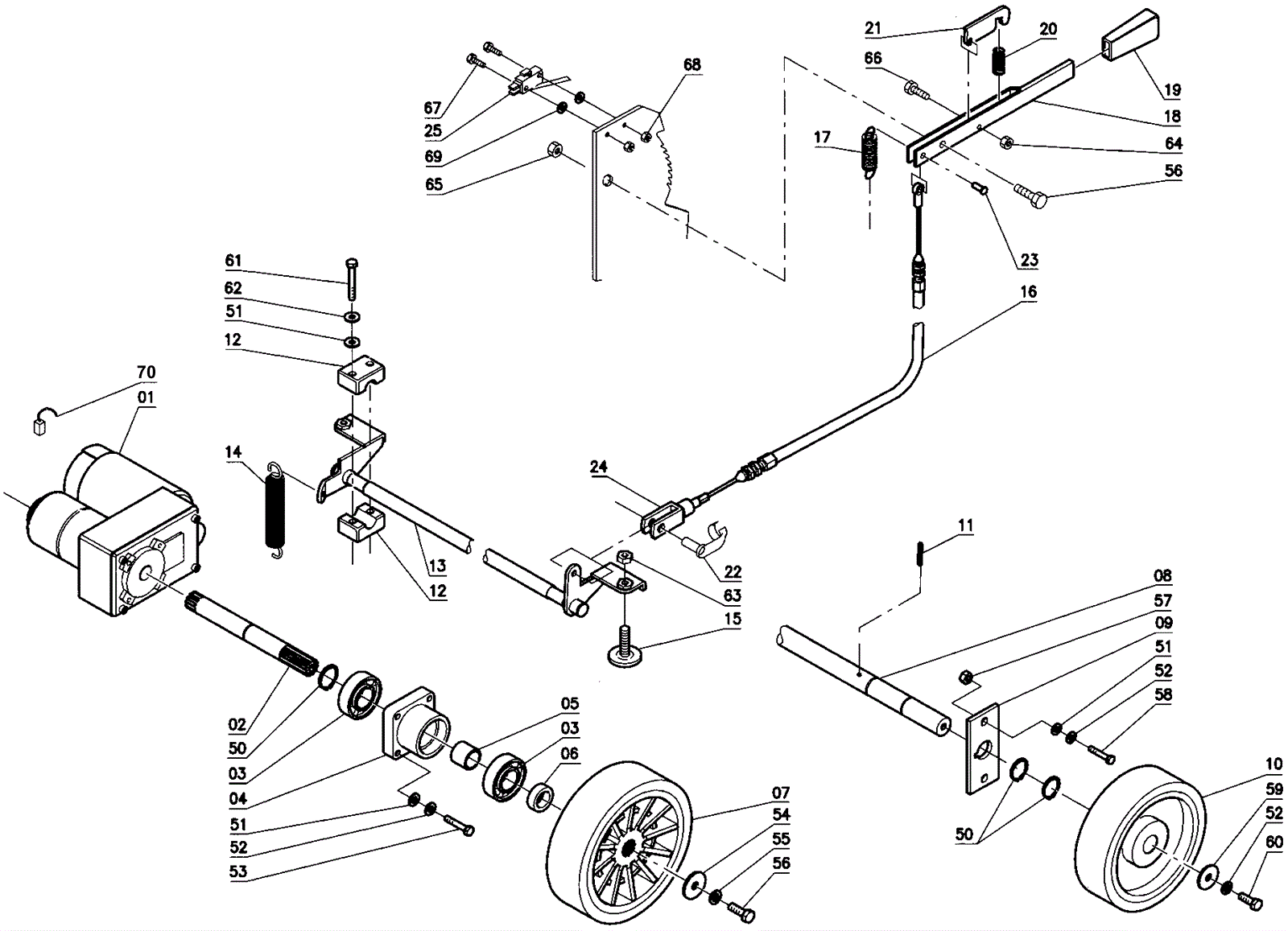

FLOORMASTER 18B Brake and Traction Assembly

#PartDescriptionPriceReqNotesAvailability
01 189-4373 24V drive motor $1,925.66 1 usually ships 1-5 days
02 206-0984 Axle shaft (OBSOLETE) Call for price 2 usually ships 1-5 days
03 N/A Not available Call for price 4 (bearing) usually ships 3-26 days
04 N/A Not available Call for price 2 (support) usually ships 3-26 days
05 206-0986 Spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
06 206-0987 Spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
07 206-0988 Traction wheel (OBSOLETE) Call for price 2 usually ships 5-15 days
08 206-5304 Shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
09 206-5305 Support (OBSOLETE) Call for price 2 usually ships 1-5 days
10 206-0564 Wheel $95.82 2 usually ships 11-24 days
11 N/A Not available Call for price 1 (spring pin) usually ships 3-26 days
12 189-6241 Pivot block $7.32 4 usually ships 1-5 days
13 206-0990 Shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
14 250-1115 Spring $16.23 1 usually ships 1-5 days
15 206-5309 Pad (OBSOLETE) Call for price 2 usually ships 1-5 days
16 206-5310 Brake cable (OBSOLETE) Call for price 1 usually ships 1-5 days
17 189-7540 Spring $5.50 1 ships same day
18 206-5311 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-5286 Knob (OBSOLETE) Call for price 1 usually ships 1-5 days
20 206-0991 Spring (OBSOLETE) Call for price 1 usually ships 1-5 days
21 206-5314 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
22 206-5163 Clip (OBSOLETE) $8.51 1 usually ships 5-15 days
23 206-5165 Pin (OBSOLETE) Call for price 1 usually ships 1-5 days
24 206-5164 Fork $20.82 1 usually ships 5-15 days
25 206-0716 Microswitch (OBSOLETE) Call for price 1 usually ships 1-5 days
50 206-5306 Seeger ring $14.25 4 usually ships 11-24 days
51 206-0607 Washer (OBSOLETE) $0.81 8 usually ships 5-15 days
52 206-5135 Washer lock (OBSOLETE) $1.88 8 usually ships 1-5 days
53 N/A Not available Call for price 8 (screw) usually ships 3-26 days
54 189-9071 Washer M9 flat zinc $12.84 2 usually ships 11-24 days
56 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
57 206-0553 Nut lock (OBSOLETE) Call for price 4 usually ships 1-5 days
58 206-0497 Screw $2.15 4 usually ships 1-5 days
59 206-5168 Washer (OBSOLETE) $10.47 2 usually ships 1-5 days
60 206-0555 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
62 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 4 usually ships 6-27 days
63 206-5138 Nut (OBSOLETE) Call for price 2 usually ships 1-5 days
64 206-0995 Lock nut (OBSOLETE) Call for price 1 usually ships 1-5 days
65 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
66 999-0528 Screw M4-.7 x 16mm pan head slotted zinc $0.99 1 ships same day
67 206-0996 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
68 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
69 206-5358 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
70 206-0983 Carbon brushes $54.48 2 usually ships 11-24 days
