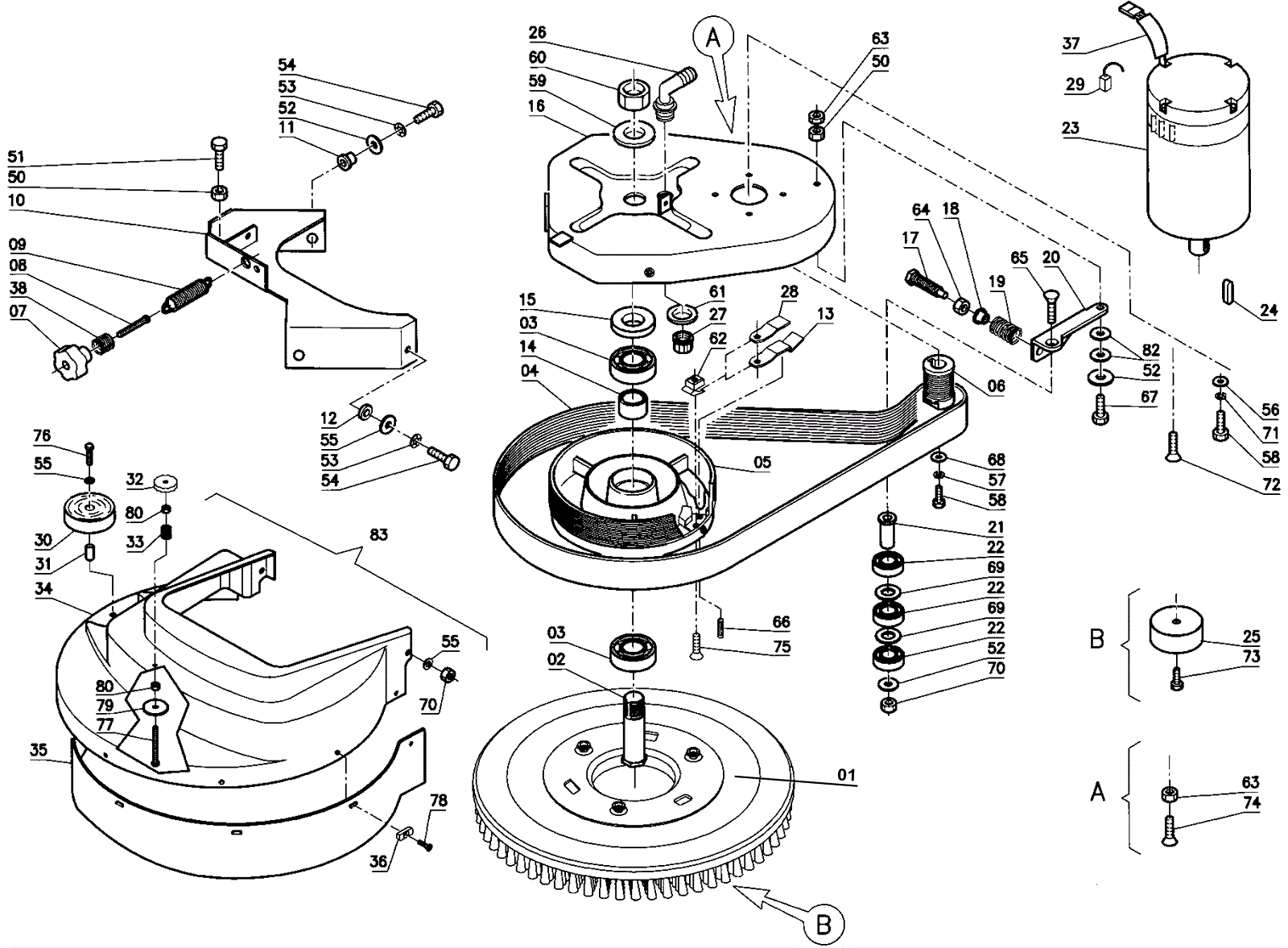

SCRUBMASTER 20B Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
01 206-5120 Brush (OBSOLETE) $668.66 1 usually ships 12-16 days
02 206-5106 Shaft (OBSOLETE) $64.36 1 usually ships 12-16 days
03 206-5107 Bearing (OBSOLETE) $73.57 2 usually ships 12-16 days
04 206-5108 Belt (OBSOLETE) $109.79 1 usually ships 12-16 days
05 206-5109 Pulley (OBSOLETE) Call for price 1 usually ships 1-5 days
06 206-5110 Motor pulley (OBSOLETE) Call for price 1 usually ships 1-5 days
07 206-0866 Knob (OBSOLETE) $17.13 1 usually ships 1-5 days
08 206-5112 Adjuster (OBSOLETE) $18.44 1 usually ships 1-5 days
09 206-5113 Spring (OBSOLETE) Call for price 1 usually ships 1-5 days
10 206-5114 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
11 206-5115 Bushing (OBSOLETE) Call for price 2 usually ships 1-5 days
12 206-5116 Bushing (OBSOLETE) Call for price 2 usually ships 1-5 days
13 206-5117 Spring (OBSOLETE) Call for price 2 usually ships 1-5 days
14 206-5118 Spacer (OBSOLETE) $35.00 1 usually ships 12-16 days
15 206-5119 Spacer (OBSOLETE) $33.33 1 usually ships 12-16 days
16 206-5120 Brush (OBSOLETE) $668.66 1 usually ships 12-16 days
17 206-5121 Adjuster (OBSOLETE) $19.56 1 usually ships 1-5 days
18 206-5122 Bushing (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-5123 Spring (OBSOLETE) $11.03 1 usually ships 1-5 days
20 206-5124 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
21 206-5125 Bushing (OBSOLETE) Call for price 1 usually ships 1-5 days
22 206-5126 Bearing (OBSOLETE) $71.45 3 usually ships 1-5 days
23 206-5127 Motor (OBSOLETE) $137.22 1 usually ships 1-5 days
24 206-5128 Key (OBSOLETE) Call for price 1 usually ships 1-5 days
25 206-5129 Special washer (OBSOLETE) $40.16 1 usually ships 1-5 days
26 206-0868 Connector (OBSOLETE) Call for price 1 usually ships 1-5 days
27 206-0869 Ring nut (OBSOLETE) Call for price 1 usually ships 1-5 days
28 206-5133 Spring (OBSOLETE) Call for price 3 usually ships 1-5 days
29 206-0867 Carbon brush motor (OBSOLETE) Call for price 4 usually ships 12-16 days
30 189-2542 Wheel $16.81 1 usually ships 14-27 days
31 189-2543 Bushing $5.50 1 usually ships 1-5 days
32 206-5158 Handwheel (OBSOLETE) Call for price 1 usually ships 1-5 days
33 206-6005 Spring $21.56 1 usually ships 1-5 days
34 206-5160 Base cover (OBSOLETE) $63.58 1 usually ships 12-16 days
35 206-5161 Splash guard (OBSOLETE) $55.93 1 usually ships 12-16 days
36 206-5162 Plaque (OBSOLETE) Call for price 8 usually ships 1-5 days
37 206-0480 Sheath (OBSOLETE) Call for price 1 usually ships 1-5 days
38 206-0870 Spring (OBSOLETE) Call for price 1 usually ships 1-5 days
50 206-0556 Nut (OBSOLETE) Call for price 3 usually ships 1-5 days
51 206-0503 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
52 206-0035 Washer (OBSOLETE) $1.14 2 usually ships 1-5 days
53 206-0712 Washer (OBSOLETE) $1.78 1 usually ships 1-5 days
54 206-5134 Screw (OBSOLETE) $1.88 2 usually ships 1-5 days
55 206-0540 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
56 206-0607 Washer (OBSOLETE) $0.81 3 usually ships 12-16 days
57 206-5135 Washer lock (OBSOLETE) $1.88 1 usually ships 1-5 days
58 206-0497 Screw $2.15 4 usually ships 1-5 days
59 206-5136 Washer (OBSOLETE) $2.03 1 usually ships 1-5 days
60 206-5137 Nut (OBSOLETE) $11.99 1 usually ships 1-5 days
61 206-0871 Lock washer (OBSOLETE) Call for price 1 usually ships 1-5 days
62 206-0872 Nut (OBSOLETE) Call for price 1 (after SN 01002447) usually ships 1-5 days
63 206-5138 Nut (OBSOLETE) Call for price 1 usually ships 1-5 days
64 206-5139 Nut (OBSOLETE) $3.98 1 usually ships 1-5 days
65 206-0873 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
66 206-0874 Dowel (OBSOLETE) Call for price 1 (after SN 01002447) usually ships 1-5 days
67 206-5141 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
68 206-0578 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
69 206-5142 Washer brass (OBSOLETE) Call for price 2 usually ships 1-5 days
70 206-0494 Nut lock (OBSOLETE) $1.88 1 usually ships 1-5 days
71 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 4 usually ships 26-37 days
72 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $4.58 1 usually ships 26-37 days
73 206-0875 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
74 206-5145 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
75 206-0507 Screw Call for price 1 (after SN 01002447) usually ships 12-16 days
76 206-0876 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
77 206-6001 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
78 189-6237 Screw M4 x 15mm flat $12.84 8 usually ships 14-27 days
79 206-6002 Washer $53.84 1 usually ships 1-5 days
80 283-1714 NUT M6 UNI 5587 ST.STEEL HIGH $4.58 2 usually ships 26-37 days
82 206-5132 Spring (OBSOLETE) Call for price 2 usually ships 1-5 days
83 206-5176 Base cover assembly (OBSOLETE) Call for price (includes 30-36, 55, 70, and 77-80) (includes 30-36, 55, 70, and 77-80) usually ships 1-5 days
