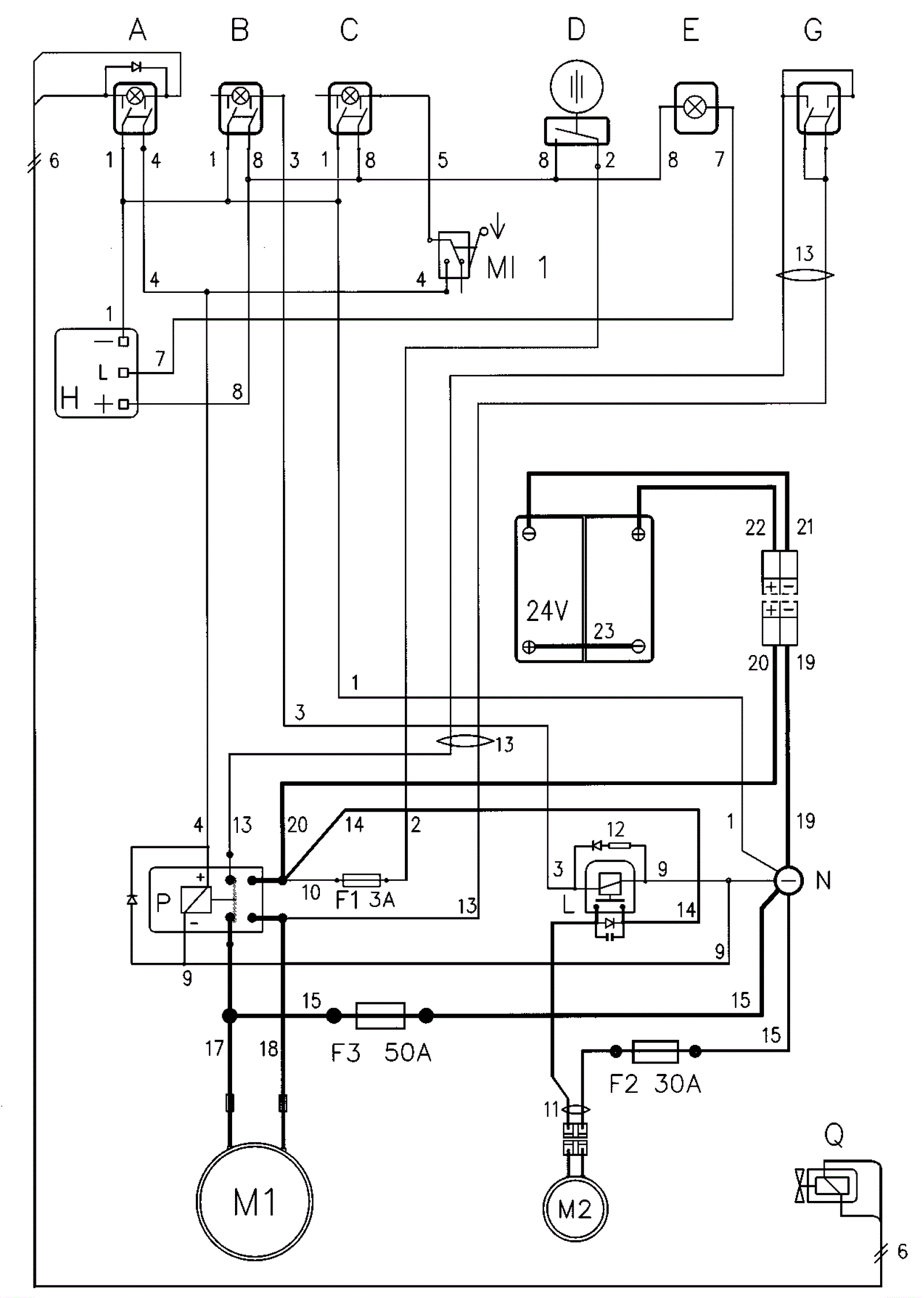

FLOORMASTER 18B Wiring Diagram 1

#PartDescriptionPriceReqNotesAvailability
A 206-5177 Bipolar switch green (OBSOLETE) Call for price (solenoid valve solution) usually ships 1-5 days
B 206-5177 Bipolar switch green (OBSOLETE) Call for price (vacuum motor) usually ships 1-5 days
C 206-5177 Bipolar switch green (OBSOLETE) Call for price (motor brushes) usually ships 1-5 days
Da 206-0023 Contact (OBSOLETE) $16.08 (on/off general) (before 08-2000) usually ships 1-5 days
Db 189-6342 Key switch contact $37.21 (on/off general) (after 08-2000) usually ships 11-24 days
E 206-5178 Green signal protected 24v (OBSOLETE) Call for price (control batteries) usually ships 1-5 days
F1 206-0685 3amp fuse (OBSOLETE) $5.96 (controls) usually ships 1-5 days
F2 206-0702 30amp fuse (OBSOLETE) $2.87 (vacuum motor) usually ships 5-15 days
F3 206-0701 Fuse 50A (OBSOLETE) Call for price (brush motor) usually ships 1-5 days
H 206-5180 Check card control batteries 24v (OBSOLETE) Call for price usually ships 1-5 days
H1 N/A Not available Call for price (check card control gel batteries 24V) usually ships 3-26 days
L 206-5354 24V 30amp relay (OBSOLETE) $35.70 (vacuum motor) usually ships 11-24 days
M1 206-5127 Motor (OBSOLETE) $137.22 usually ships 1-5 days
M2 206-5181 24V vacuum motor Call for price usually ships 1-5 days
MI-1 206-5182 Microswitch 3x22 (OBSOLETE) Call for price (motor brushes) usually ships 1-5 days
N 206-5183 Insulator M5x25 ff (OBSOLETE) Call for price (negative general) usually ships 1-5 days
P 206-5184 Remote control switch 24v double w/ diode (OBSOLETE) Call for price (brush motor) usually ships 1-5 days
Q N/A Not available Call for price (coil) usually ships 3-26 days
1/6 206-5269 Switch Series Cables and Connectors (OBSOLETE) Call for price usually ships 1-5 days
1 206-1021 4 cables black no. 1 (OBSOLETE) Call for price usually ships 1-5 days
2 206-1022 Cable brown no. 2 (OBSOLETE) Call for price usually ships 1-5 days
3 206-1023 Cable blue no. 3 (OBSOLETE) Call for price usually ships 1-5 days
4 206-1024 3 cables red no. 4-5 (OBSOLETE) Call for price usually ships 1-5 days
5 206-1024 3 cables red no. 4-5 (OBSOLETE) Call for price usually ships 1-5 days
6 206-5190 2 cables brown-blue no.6 (OBSOLETE) Call for price usually ships 1-5 days
7 206-5191 Cable blue no.7 (OBSOLETE) Call for price usually ships 1-5 days
8 206-5192 4 cables red no.8 (OBSOLETE) Call for price usually ships 1-5 days
9 206-5193 2 cables black no.9 (OBSOLETE) Call for price usually ships 1-5 days
10 206-5194 Cable red no.10 (OBSOLETE) Call for price usually ships 1-5 days
11 206-5195 Cables suction motor no.11 (OBSOLETE) Call for price usually ships 1-5 days
12 206-0732 Diode and Resistances with Terminal (OBSOLETE) Call for price usually ships 1-5 days
13 206-5196 Series cables and connector brush release no.13 (OBSOLETE) Call for price usually ships 1-5 days
14 206-5197 Cable red and condenser and diode no.14 (OBSOLETE) Call for price usually ships 1-5 days
15 206-1025 Cable black no. 15 (OBSOLETE) Call for price usually ships 1-5 days
17 206-5188 Cable blue no.3 (OBSOLETE) Call for price usually ships 1-5 days
18 206-5188 Cable blue no.3 (OBSOLETE) Call for price usually ships 1-5 days
19 206-1026 2 cables black-red and connector 80a (OBSOLETE) Call for price usually ships 1-5 days
20 206-1026 2 cables black-red and connector 80a (OBSOLETE) Call for price usually ships 1-5 days
21 250-1232 Female connector $77.42 usually ships 1-5 days
22 250-1232 Female connector $77.42 usually ships 1-5 days
23 206-5201 Cable bridge with battery terminals (OBSOLETE) Call for price usually ships 1-5 days
