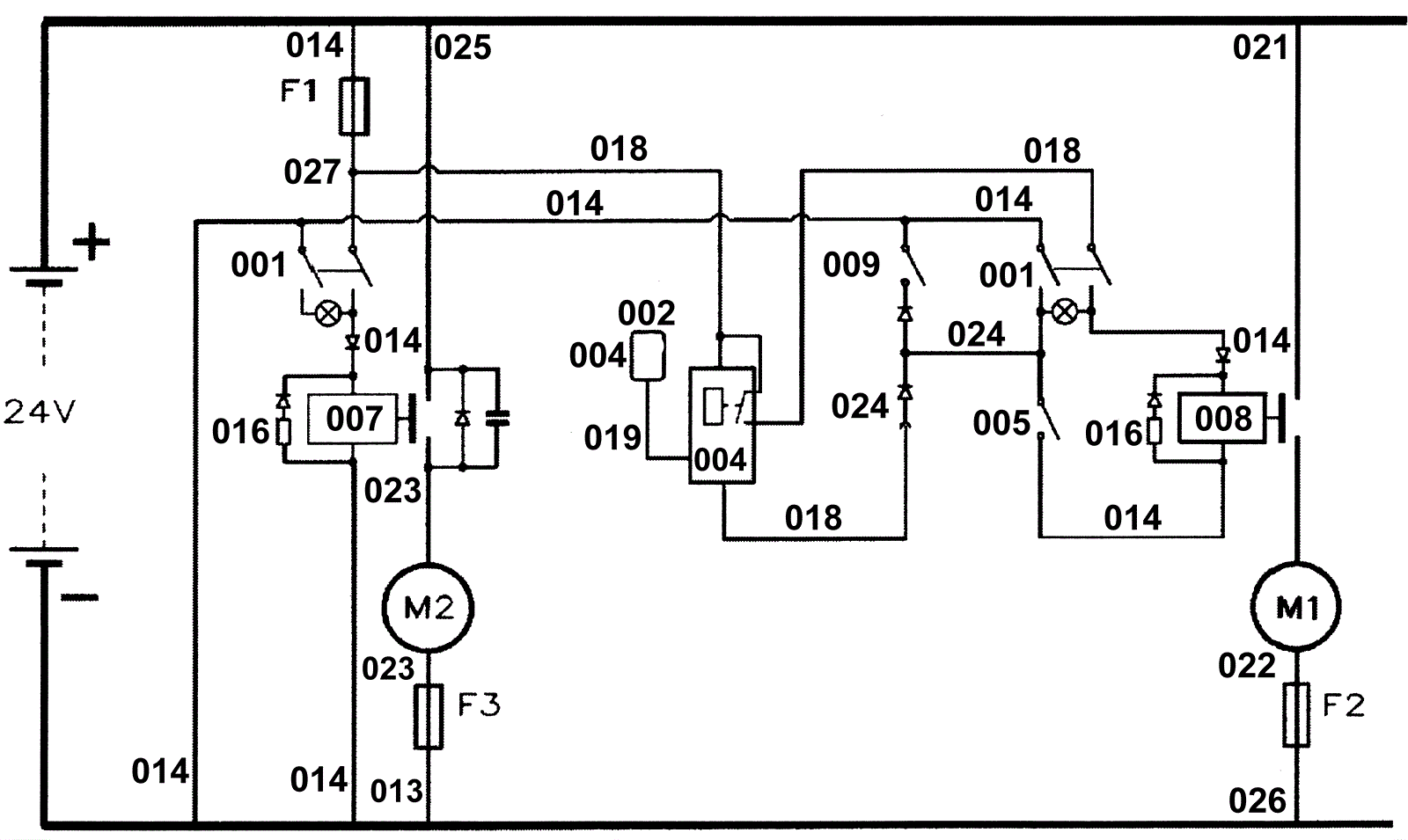

ACE 20C Functional Schematic LEAD ACID Batteries

#PartDescriptionPriceReqNotesAvailability
001 206-0692 Bipolar switch green $46.61 Vacuum Motor 24V usually ships 1-5 days
002 206-0720 Battery signal $12.12 Lead/Water Valve usually ships 5-15 days
004 206-0734 Battery check card (OBSOLETE) Call for price usually ships 1-5 days
005 206-0688 Microswitch $40.59 Start Brushes ships same day
007 206-5354 24V 30amp relay (OBSOLETE) $35.70 Vacuum Motor usually ships 11-24 days
008 206-0708 24V contactor (OBSOLETE) $142.72 Brush Motor 24V-100A usually ships 11-24 days
009 206-0716 Microswitch (OBSOLETE) Call for price Water Valve usually ships 1-5 days
013 206-0729 Cable black (OBSOLETE) Call for price usually ships 1-5 days
014 206-0730 Cable 5x1 and Black bridges (OBSOLETE) Call for price usually ships 1-5 days
016 206-0732 Diode and Resistances with Terminal (OBSOLETE) Call for price usually ships 1-5 days
018 206-0738 Cables 3 black, red, green and Connector and Bridge (OBSOLET Call for price usually ships 1-5 days
019 206-0737 Cable display Battery signsl (OBSOLETE) Call for price usually ships 1-5 days
021 206-0722 Cable black, red - Connector 50A (OBSOLETE) Call for price usually ships 5-15 days
022 206-0723 Cable black, red with Couplings (OBSOLETE) Call for price usually ships 1-5 days
023 206-0724 Cable black, red with Connector 30A (OBSOLETE) Call for price usually ships 1-5 days
024 206-0725 Cables green 2 (OBSOLETE) Call for price usually ships 1-5 days
026 206-0727 Cable black (OBSOLETE) Call for price usually ships 1-5 days
027 206-0735 Cable red (OBSOLETE) Call for price usually ships 1-5 days
F1 206-0685 3amp fuse (OBSOLETE) $5.96 General Key usually ships 1-5 days
F2 206-0701 Fuse 50A (OBSOLETE) Call for price Brush Motor usually ships 1-5 days
F3 250-1259 Fuseholder $16.08 Vacuum Motor usually ships 11-24 days
M1 206-0475 Motor complete 24v (OBSOLETE) Call for price usually ships 1-5 days
M2 206-0600 24V vacuum motor $344.10 usually ships 5-16 days
N/S 206-0706 Insulator M5 (OBSOLETE) Call for price usually ships 1-5 days
N/S 206-0719 Double connector 30A (OBSOLETE) Call for price usually ships 1-5 days
N/S 206-0721 Cable black, red - Battery terminals - Connector 50A (OBSOLE Call for price usually ships 1-5 days
N/S 206-0726 Cable red with Diode and Condenser (OBSOLETE) Call for price usually ships 1-5 days
N/S 206-0731 Cable blue-brown 2 (OBSOLETE) Call for price usually ships 1-5 days
N/S 206-0733 Cable black battery bridge (OBSOLETE) Call for price usually ships 1-5 days
