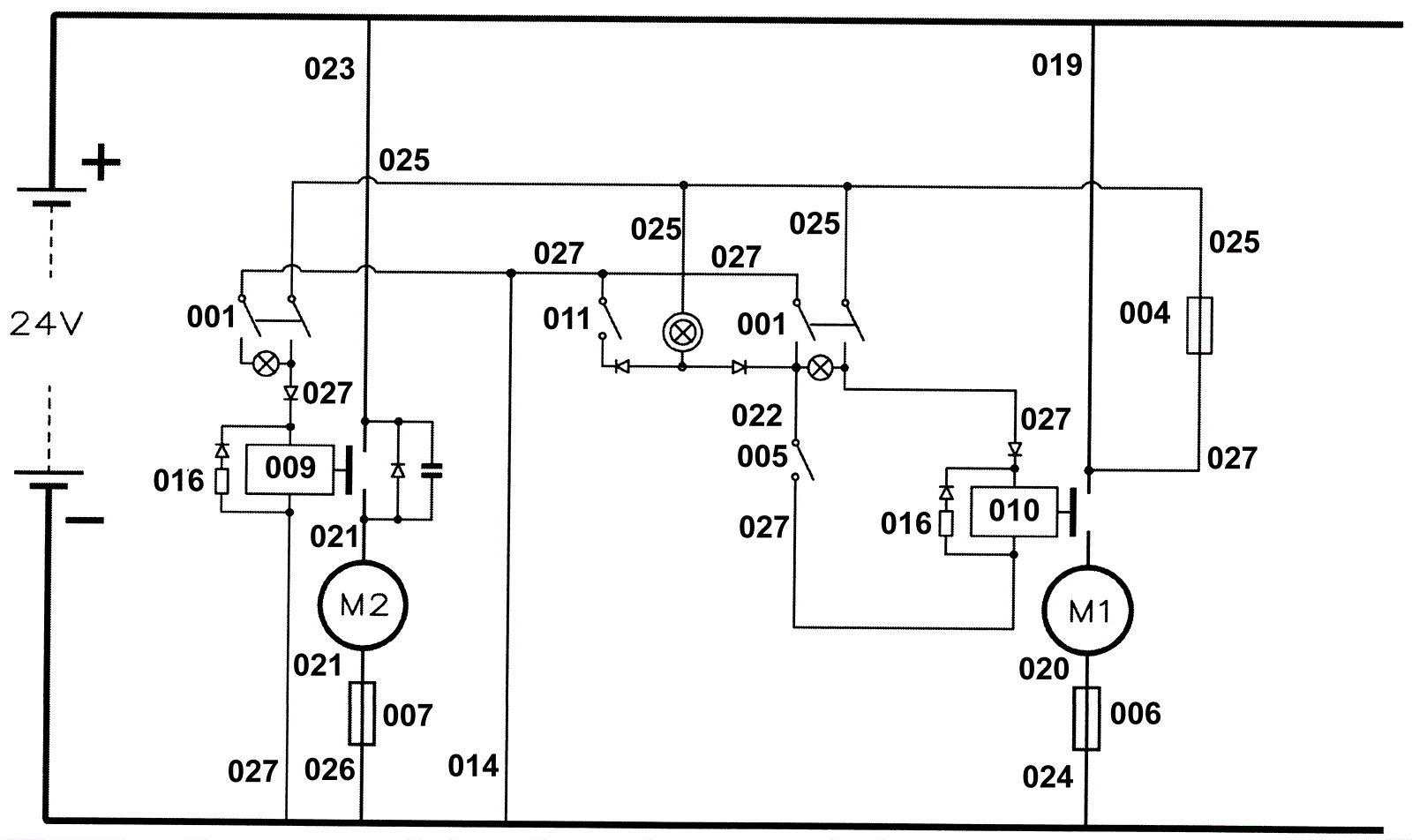

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
206-0692
|
Bipolar switch green |
|
Vacuum Motor 24V |
|
004 |
206-0685
|
3amp fuse (OBSOLETE) |
|
General Key |
|
005 |
206-0688
|
Microswitch |
|
|
|
006 |
206-0701
|
Fuse 50A (OBSOLETE) |
|
Brush Motor |
|
007 |
206-0702
|
30amp fuse (OBSOLETE) |
|
Vacuum Motor |
|
009 |
206-5354
|
24V 30amp relay (OBSOLETE) |
|
Vacuum Motor |
|
010 |
206-0708
|
24V contactor (OBSOLETE) |
|
Brush Motor 24V-100A |
|
011 |
206-0716
|
Microswitch (OBSOLETE) |
|
Water Valve |
|
014 |
206-0719
|
Double connector 30A (OBSOLETE) |
|
Vacuum Motor |
|
016 |
206-0732
|
Diode and Resistances with Terminal (OBSOLETE) |
|
|
|
019 |
206-0722
|
Cable black, red - Connector 50A (OBSOLETE) |
|
|
|
020 |
206-0723
|
Cable black, red with Couplings (OBSOLETE) |
|
|
|
021 |
206-0724
|
Cable black, red with Connector 30A (OBSOLETE) |
|
|
|
022 |
206-0725
|
Cables green 2 (OBSOLETE) |
|
|
|
023 |
206-0726
|
Cable red with Diode and Condenser (OBSOLETE) |
|
|
|
024 |
206-0727
|
Cable black (OBSOLETE) |
|
|
|
025 |
206-0728
|
Cables red 3 (OBSOLETE) |
|
|
|
026 |
206-0729
|
Cable black (OBSOLETE) |
|
|
|
027 |
206-0730
|
Cable 5x1 and Black bridges (OBSOLETE) |
|
|
|
M1 |
206-0475
|
Motor complete 24v (OBSOLETE) |
|
|
|
M2 |
206-0600
|
24V vacuum motor |
|
|
|
N/S |
206-0721
|
Cable black, red - Battery terminals - Connector 50A (OBSOLE |
|
|
|
N/S |
206-0706
|
Insulator M5 (OBSOLETE) |
|
|
|
N/S |
206-0733
|
Cable black battery bridge (OBSOLETE) |
|
|
|
N/S |
206-0731
|
Cable blue-brown 2 (OBSOLETE) |
|
|
|
N/S |
206-0693
|
Battery warning light (OBSOLETE) |
|
|
|
N/S |
206-0715
|
Battery signal lead (OBSOLETE) |
|
|
|
