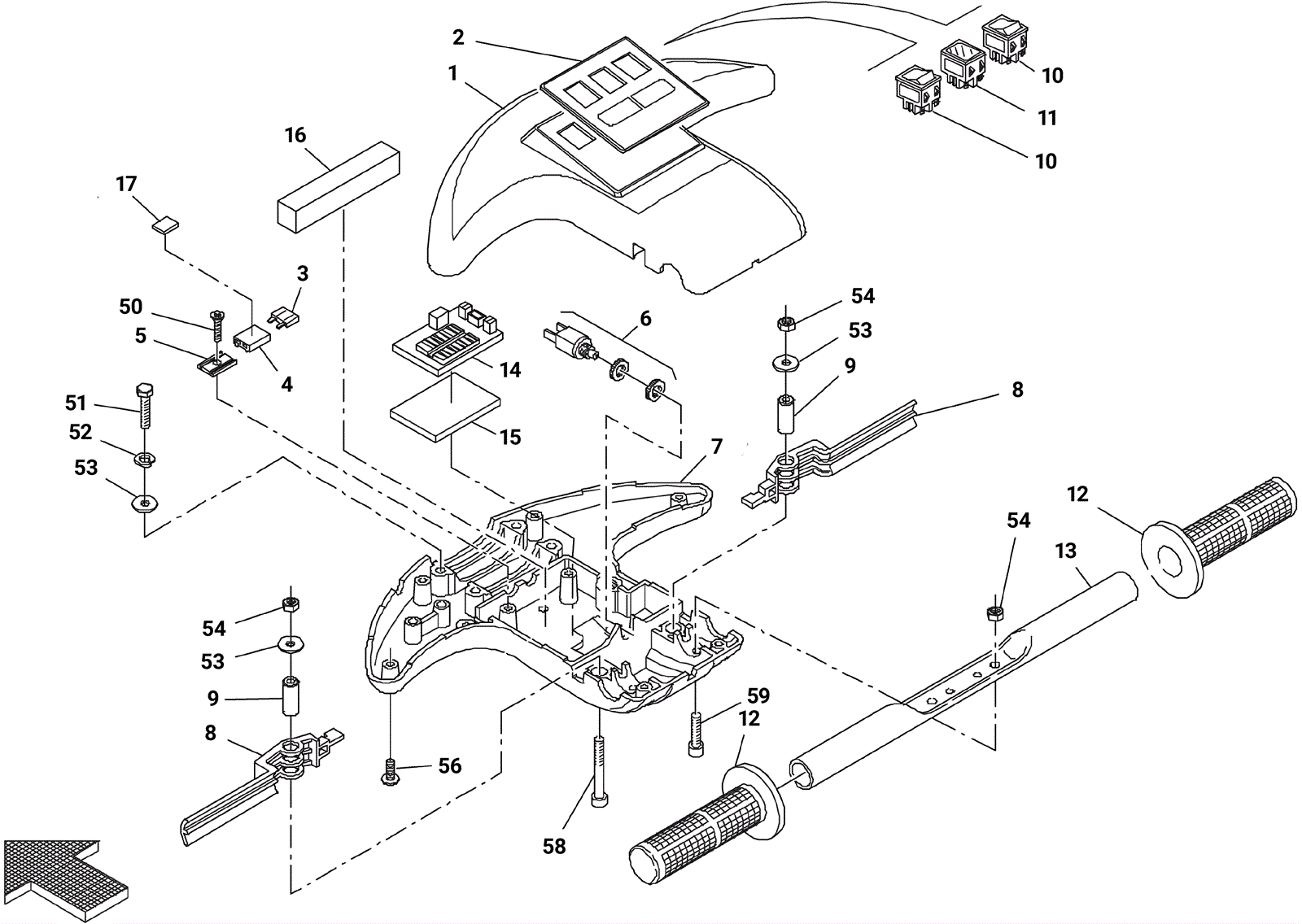

Handle Bar Assembly

#PartDescription ReqNotesAvailability
1 206-0683 Handle bar cover (OBSOLETE) 1
2 206-0684 Decal (OBSOLETE) 1
3 206-0685 3amp fuse (OBSOLETE) 1
4 206-0686 Fuse holder (OBSOLETE) 1
5 206-0687 Plaque (OBSOLETE) 1
6 206-0688 Microswitch 1
7 206-0689 Handle bar body (OBSOLETE) 1
8 206-0690 Lever 2
9 206-0691 Pin (OBSOLETE) 2
10 206-0692 Bipolar switch green 2
11 206-0720 Battery signal 1
12 206-0694 Handle grip (OBSOLETE) 2
13 206-0695 Pipe (OBSOLETE) 1
14 206-0734 Battery check card (OBSOLETE) 1
15 206-5717 Gasket (OBSOLETE) 1
16 206-5718 Spacer (OBSOLETE) 1
17 N/A Not available 1 (spacer)
50 206-0696 Screw (OBSOLETE) 1
51 N/A Not available 1 (screw)
53 206-0554 Washer (OBSOLETE) 3
54 206-0553 Nut lock (OBSOLETE) 3
56 206-0581 Screw (OBSOLETE) 1
58 206-0699 Screw (OBSOLETE) 1
59 206-0700 Screw (OBSOLETE) 1
