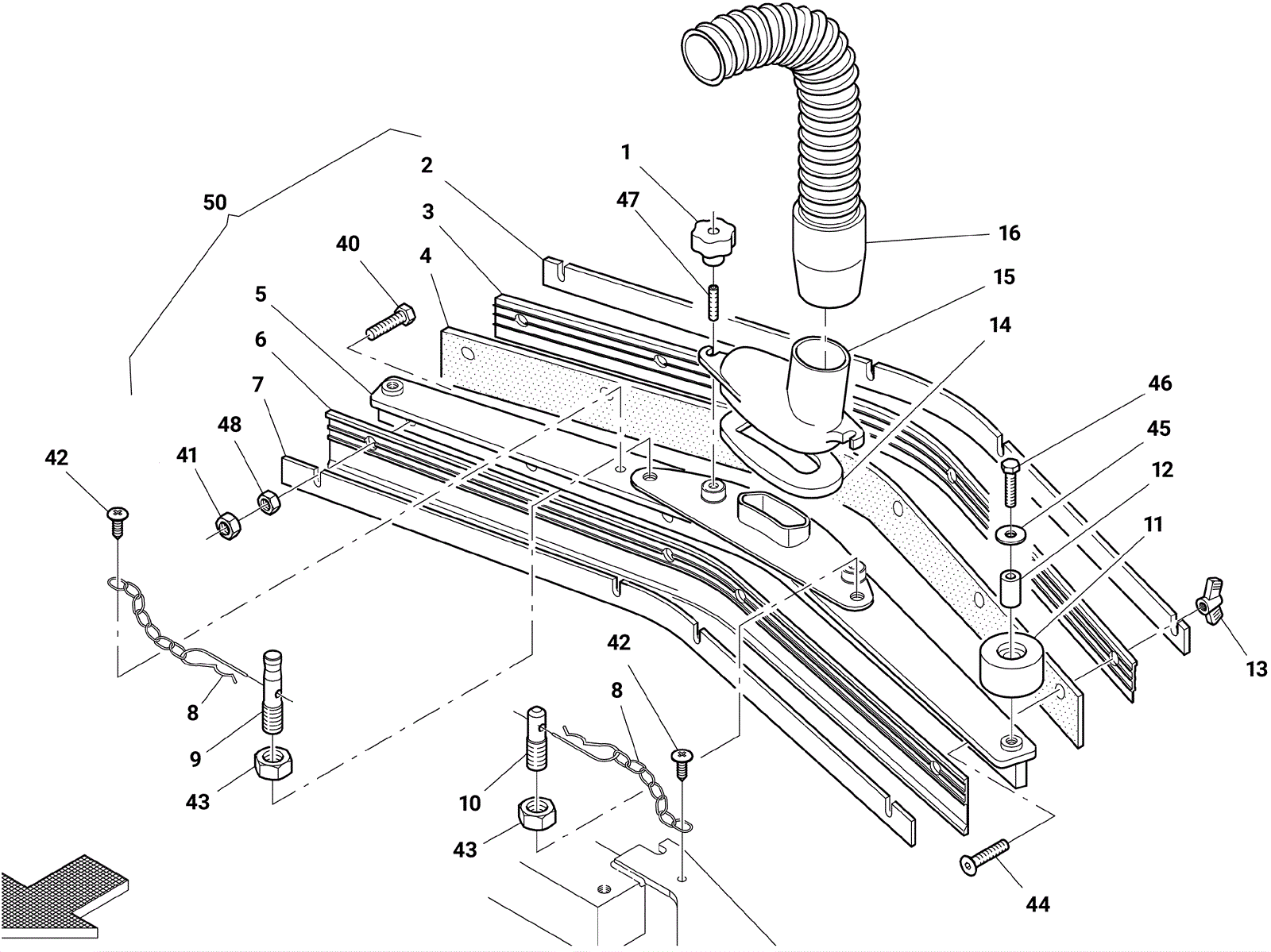

ACE 20C Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0638 Knob (OBSOLETE) Call for price 2 usually ships 1-5 days
2 189-7697 Rear band clamp $55.25 1 usually ships 11-24 days
3 189-5644 Squeegee blade 27 inch support blade linard (red) $32.12 1 ships same day
4 189-7650 Squeegee blade 27 x 1 3/4 x 1/8 inch gum rubber rear (red) $25.33 1 usually ships 11-24 days
5 206-0642 Squeegee body $70.00 1 usually ships 11-24 days
6 N/A Not available Call for price 1 (front squeegee) usually ships 3-26 days
7 189-7696 Front band clamp $51.24 1 usually ships 11-24 days
8 206-0645 Chain (OBSOLETE) Call for price 2 usually ships 1-5 days
9 206-0646 Bolt M10 x 46mm stud (OBSOLETE) $5.82 1 usually ships 11-24 days
10 206-0647 Bolt M10 x 33mm stud (OBSOLETE) Call for price 1 usually ships 1-5 days
11 206-0648 Wheel (OBSOLETE) $16.33 2 usually ships 5-15 days
12 206-0649 Bushing (OBSOLETE) $14.00 2 usually ships 1-5 days
13 206-0650 Nut wing (OBSOLETE) $10.23 6 usually ships 1-5 days
14 206-5716 Gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
15 N/A Not available Call for price 1 (opening) usually ships 3-26 days
16 206-0653 Vacuum hose (OBSOLETE) Call for price 1 usually ships 5-15 days
40 206-0654 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
41 206-0655 Nut lock (OBSOLETE) $5.85 1 usually ships 1-5 days
42 206-0656 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
43 206-5103 Nut (OBSOLETE) $0.86 2 usually ships 1-5 days
44 206-0657 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
45 206-0540 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
46 206-0503 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
47 N/A Not available Call for price 1 (dowel) usually ships 3-26 days
48 206-0659 Nut (OBSOLETE) Call for price 1 usually ships 1-5 days
50 206-0660 Squeegee assembly (OBSOLETE) Call for price 1 (includes 2-7, 40-41, 48) usually ships 1-5 days
