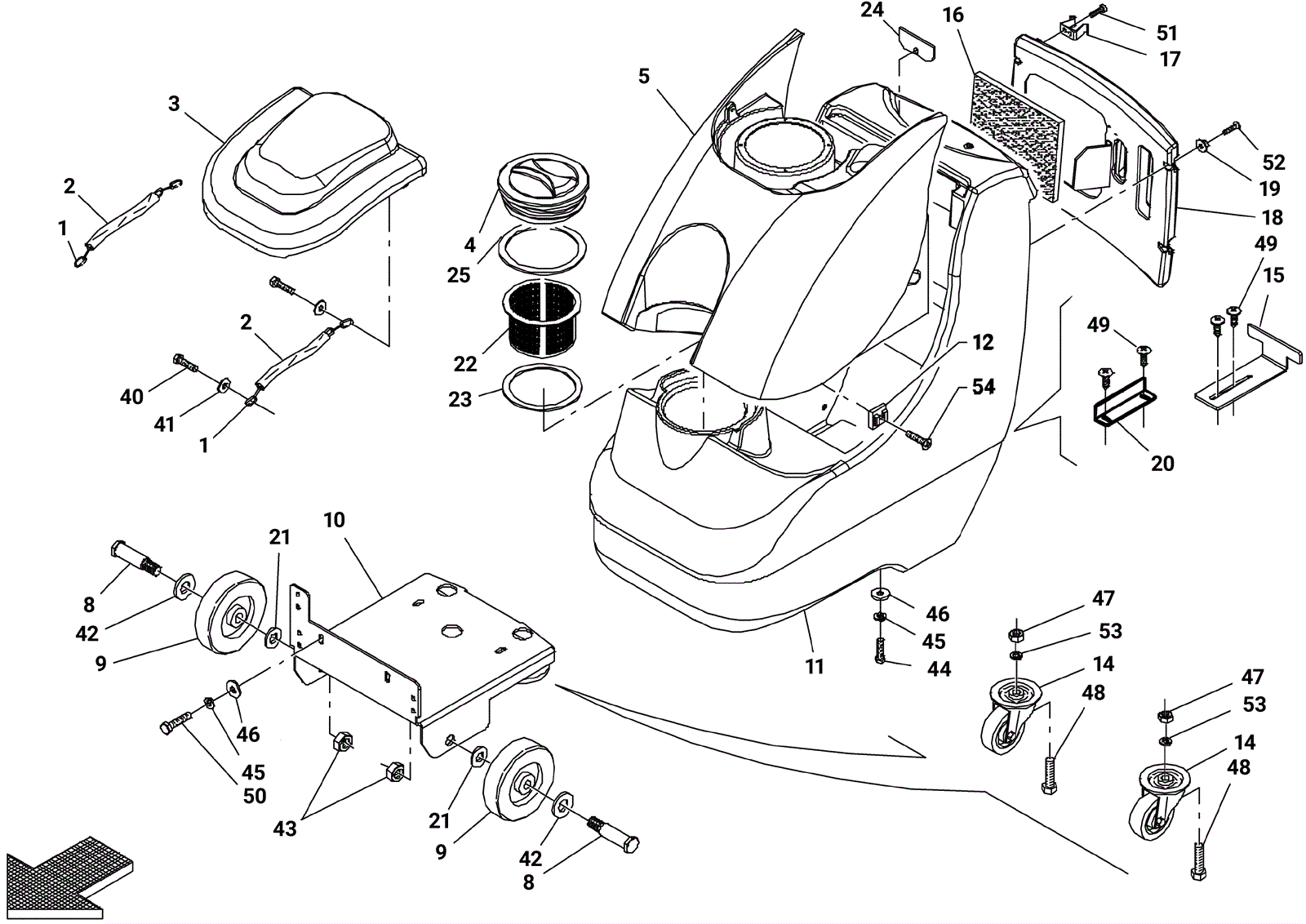

ACE 20C Frame and Tanks Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0558 Chain (OBSOLETE) Call for price 2 usually ships 1-5 days
2 206-0559 Hose (OBSOLETE) Call for price 2 usually ships 1-5 days
3 206-0560 Cover (OBSOLETE) Call for price 1 usually ships 1-5 days
4 N/A Not available Call for price 1 (cover) usually ships 3-26 days
5 206-5702 Recovery tank (OBSOLETE) Call for price 1 usually ships 1-5 days
8 206-0563 Center line (OBSOLETE) Call for price 2 usually ships 1-5 days
9 206-0564 Wheel $95.82 2 usually ships 11-24 days
10 206-0565 Frame (OBSOLETE) Call for price 1 usually ships 1-5 days
11 206-5703 Solution tank $1,872.30 1 usually ships 1-5 days
12 206-0567 Support plate (OBSOLETE) $5.91 4 usually ships 1-5 days
14 206-0568 Rear caster wheel $127.86 2 usually ships 11-24 days
15 206-0569 Angle (OBSOLETE) Call for price 1 usually ships 1-5 days
16 206-0570 Deadening (OBSOLETE) Call for price 1 usually ships 1-5 days
17 206-0571 Hook (OBSOLETE) $36.77 1 usually ships 1-5 days
18 206-0572 Panel (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-0573 Washer special (OBSOLETE) Call for price 4 usually ships 1-5 days
20 206-5704 Stop (OBSOLETE) Call for price 1 usually ships 1-5 days
21 206-0521 Spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
22 206-5705 Filter (OBSOLETE) Call for price 1 usually ships 1-5 days
23 206-5706 Ring (OBSOLETE) Call for price 1 usually ships 1-5 days
24 206-5707 Gasket (OBSOLETE) Call for price 2 usually ships 1-5 days
25 206-0959 Gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
40 206-0574 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
41 206-0575 Washer (OBSOLETE) Call for price 1 usually ships 5-15 days
42 206-5529 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
43 206-0577 Nut lock (OBSOLETE) Call for price 1 usually ships 5-15 days
44 206-0497 Screw $2.15 1 usually ships 1-5 days
45 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 2 usually ships 6-27 days
46 206-0578 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
47 999-0503 Nut M12-1.75 hex stainless steel $1.91 2 ships same day
48 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread $4.82 2 ships same day
49 206-0656 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
50 206-5708 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
51 206-0583 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
52 206-0584 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
53 206-5709 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
54 206-0581 Screw (OBSOLETE) $1.67 1 usually ships 1-5 days
