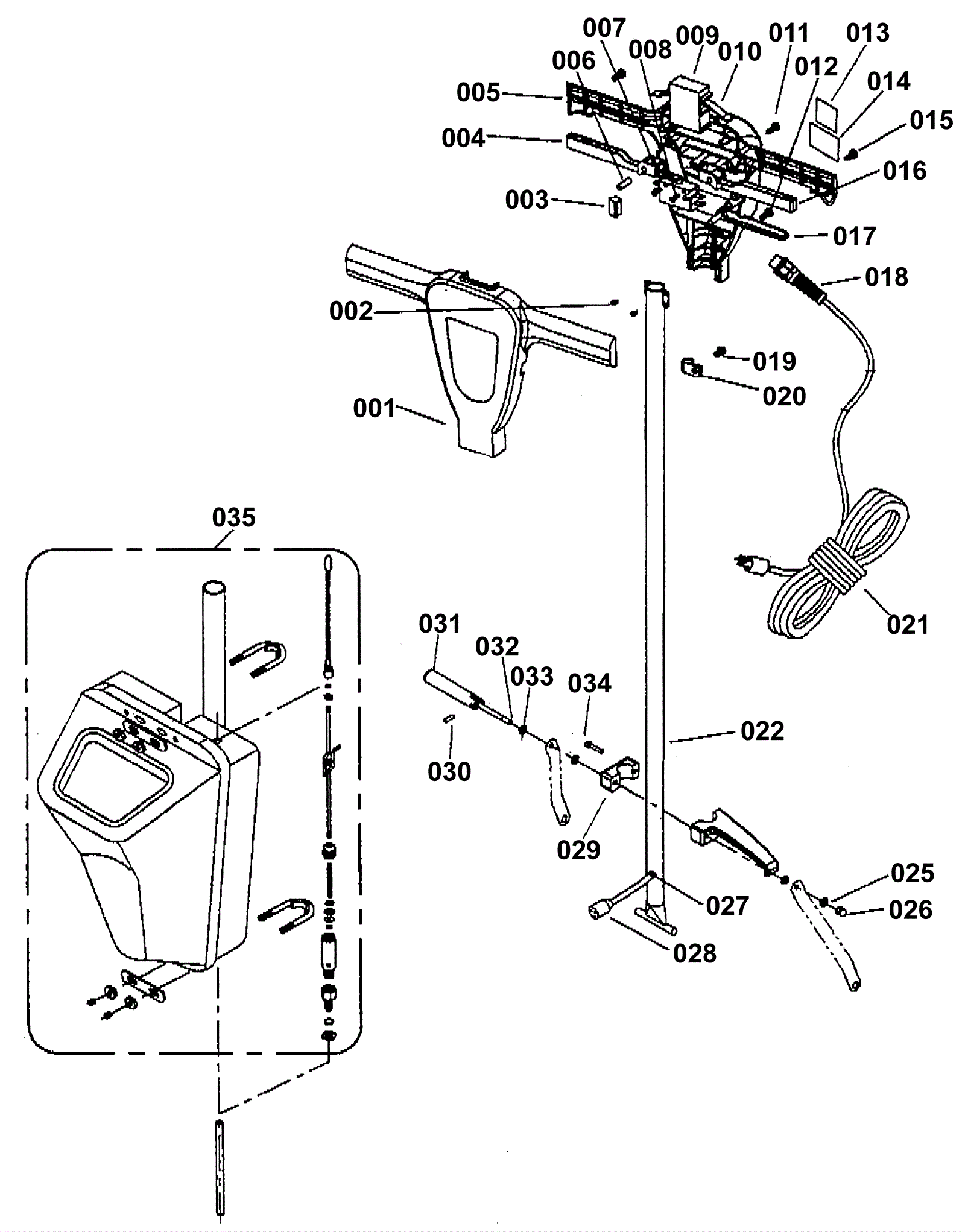

FM17125 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 204-0183 Switch housing front cover Call for price 1 usually ships 1-5 days
002 204-0229 Screw M4 x 8 Call for price 2 usually ships 1-5 days
003 204-0184 Cover Call for price 1 usually ships 1-5 days
004 240-0010 Right switch lever $16.07 1 usually ships 16-41 days
005 204-0186 Switch housing rear cover Call for price 1 usually ships 1-5 days
006 204-0187 Pin Call for price 3 usually ships 1-5 days
007 272-8640 Switch $27.18 1 ships same day
008 204-0230 Screw 3 x 25 self tapping Call for price 2 usually ships 1-5 days
009 204-0189 Safety lock button Call for price 1 usually ships 1-5 days
010 204-0190 Safety lock button spring Call for price 1 usually ships 1-5 days
011 204-0231 Screw M5 x 30 Call for price 2 usually ships 1-5 days
012 204-0232 Screw M5 x 35 Call for price 3 usually ships 1-5 days
013 204-0191 Warning label Call for price 1 usually ships 1-5 days
014a 204-0192 Serial number tag for model FM17125 Call for price 1 usually ships 1-5 days
014b 204-0193 Serial number tag for model FM17175 Call for price 1 usually ships 1-5 days
014c 204-0194 Serial number tag for model FM20125 Call for price 1 usually ships 1-5 days
014d 204-0195 Serial number tag for model FM20175 Call for price 1 usually ships 1-5 days
015 204-0233 Screw M5 x 20 Call for price 1 usually ships 1-5 days
016 240-0107 Left switch trigger $16.07 1 usually ships 16-41 days
017 204-0197 Solution tank level Call for price 1 usually ships 1-5 days
018 204-0198 Cord strain relief Call for price 1 usually ships 1-5 days
020 204-0199 Cord clamp Call for price 1 usually ships 11-24 days
021 204-0200 Main power cable Call for price 1 usually ships 1-5 days
022 204-0201 Handle tube Call for price 1 usually ships 1-5 days
023 204-0202 Cable hook Call for price 1 usually ships 1-5 days
024 204-0203 Washer Call for price 1 usually ships 1-5 days
025 204-0235 Washer #8-16 x 1.5 Call for price 1 usually ships 1-5 days
026 204-0236 Nut M8 Call for price 3 usually ships 1-5 days
027 204-0204 grommet Call for price 1 usually ships 1-5 days
028 204-0205 Handle cord Call for price 1 usually ships 1-5 days
029 204-0206 Cable hook cover Call for price 2 usually ships 1-5 days
030 204-0207 Screw Call for price 1 usually ships 1-5 days
031 204-0208 Handle release Call for price 1 usually ships 1-5 days
032 204-0209 Handle release bolt $17.00 1 usually ships 1-5 days
033 204-0210 Bolt washer Call for price 2 usually ships 1-5 days
034 204-0237 Screw M6 x 35 Call for price 1 usually ships 1-5 days
035 204-0211 Solution tank assembly Call for price 1 usually ships 1-5 days
