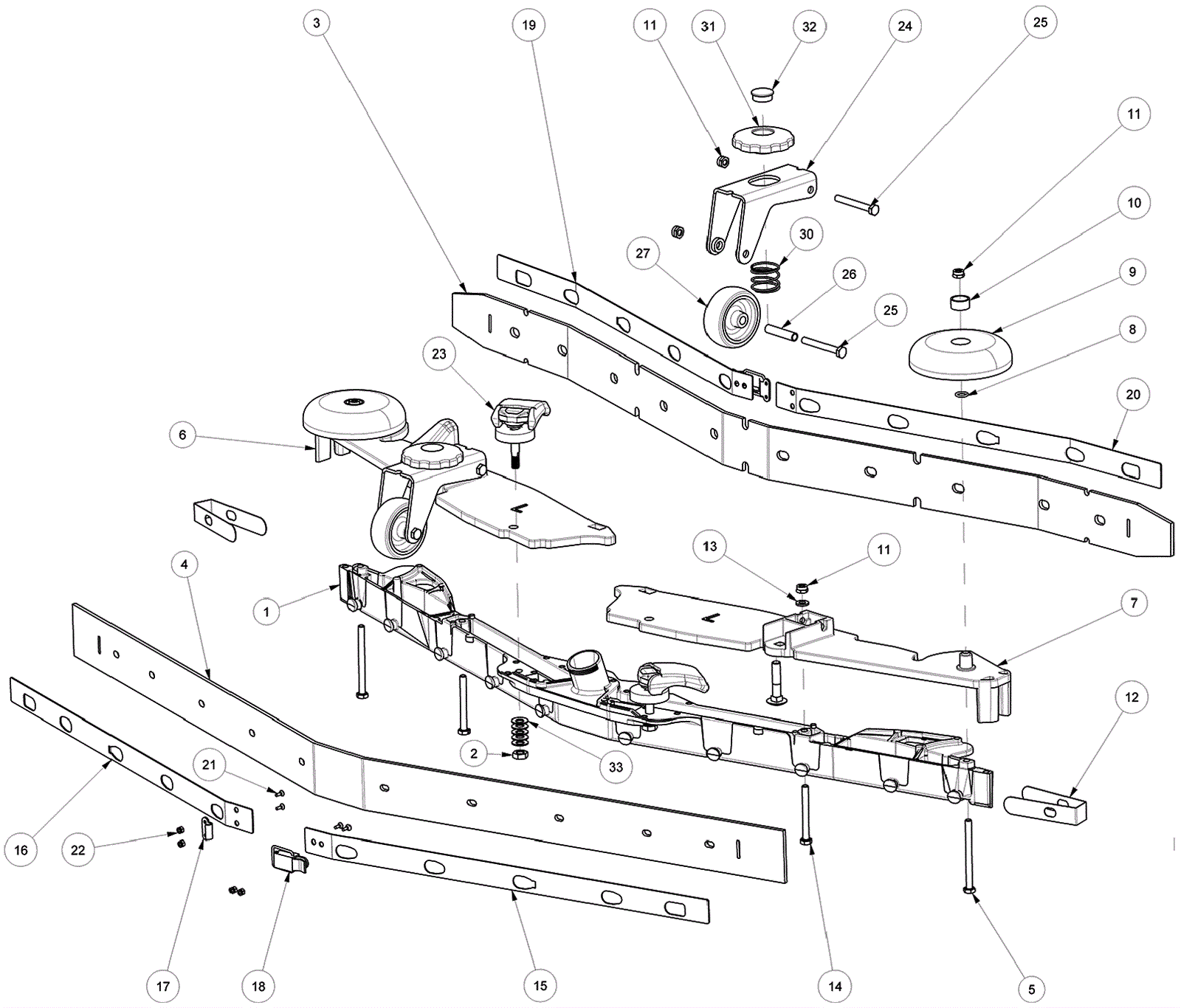

CT71 Floor Wiper Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5902 Body Call for price 1 usually ships 10-12 days
2 203-5903 Nut M8 $0.99 2 ships same day
3 203-3382 Front latex blade $75.37 1 usually ships 10-12 days
4 203-3383 Rear latex blade $75.38 1 usually ships 10-12 days
5 189-1510 Turned eye screw $0.99 2 usually ships 1-5 days
6 203-5904 Left hand squeegee protection plate $6.71 1 usually ships 10-12 days
7 203-5905 Right hand squeegee protection plate $6.71 1 usually ships 10-12 days
8 189-0181 Gasket $2.97 2 usually ships 10-12 days
9 189-0060 Wheel $8.40 2 usually ships 10-12 days
10 189-5086 Bushing $15.42 2 usually ships 10-12 days
11 189-1536 Nut with nylon ring $5.50 8 usually ships 5-9 days
12 203-4585 Closure $1.34 2 usually ships 1-5 days
13 203-1286 Washer D6 $2.99 2 usually ships 10-12 days
14 189-1488 Screw M6 $4.20 2 usually ships 10-12 days
15 203-5425 Sheet metal $34.42 1 usually ships 10-12 days
16 203-5427 Sheet metal $35.82 1 usually ships 10-12 days
17 203-4772 Socket $7.60 2 usually ships 10-12 days
18 203-4765 Retainer closure $10.41 2 usually ships 10-12 days
19 203-5422 Sheet metal $34.62 1 usually ships 10-12 days
20 203-5420 Sheet metal $35.21 1 usually ships 10-12 days
21 203-4788 Screw 3 x 8 inch $4.20 8 usually ships 10-12 days
22 203-4787 Nut M3 $3.61 8 usually ships 10-12 days
23 203-5906 Hooking Squeegee $14.72 2 usually ships 10-12 days
24 203-5907 Caster wheel support $9.42 2 usually ships 10-12 days
25 203-4779 Screw M6 x 50mm $4.20 4 usually ships 10-12 days
26 203-5908 Spacer $2.27 2 usually ships 10-12 days
27 203-5429 Wheel $2.97 2 usually ships 10-12 days
28 203-5909 Washer $0.99 4 usually ships 10-12 days
29 203-5244 Screw M8 $0.99 2 usually ships 10-12 days
30 203-5910 Spring $1.14 2 usually ships 10-12 days
31 203-5911 Small knob wheel adjustment $14.60 2 usually ships 10-12 days
32 203-5912 Cap $3.39 2 usually ships 10-12 days
33 203-5913 Disc springs $0.99 10 (after 12-14-17) usually ships 10-12 days
N/S 203-9160 Squeegee assembly $368.08 1 usually ships 1-5 days
