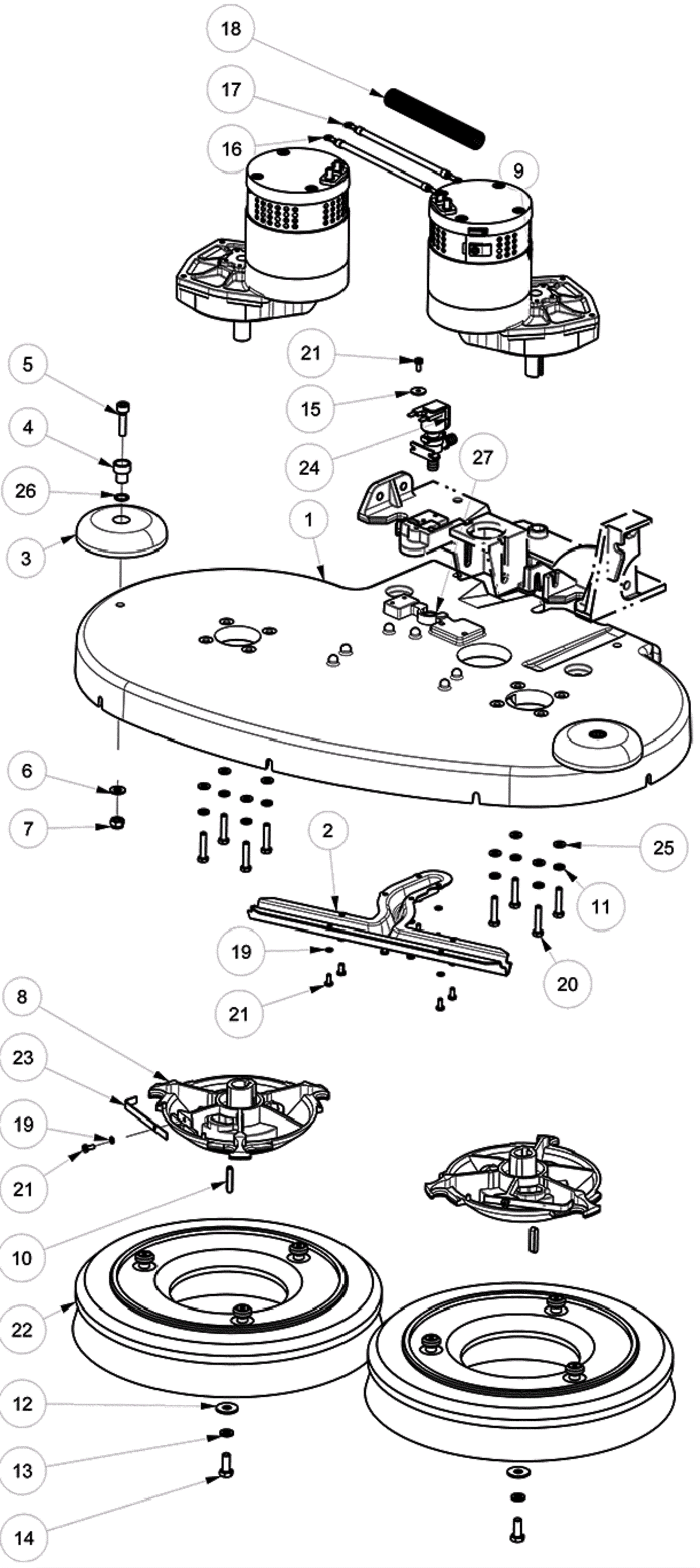

CT71 Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5842 Aluminium brush deck $186.34 1 usually ships 10-12 days
2 203-5843 Water distributor $3.04 1 usually ships 10-12 days
3 189-0060 Wheel $7.85 2 usually ships 10-12 days
4 189-0901 Bushing $30.67 2 usually ships 1-5 days
5 203-4648 Screw M8 x 30 $3.94 2 usually ships 1-5 days
6 189-0897 Washer D8 $2.79 2 usually ships 10-12 days
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
8 203-5844 Aluminium conical drive disk $49.94 2 usually ships 10-12 days
9a 203-5845 Motor brush $1,138.38 2 usually ships 10-12 days
9b 203-3376 Carbon brush (sold individually) $10.81 1 usually ships 1-5 days
10 203-0644 Square keyway $3.96 2 usually ships 10-12 days
11 203-0971 Washer D6 $2.79 8 usually ships 10-12 days
12 189-1400 Washer $2.79 2 usually ships 10-12 days
13 203-4414 Washer $2.79 2 usually ships 10-12 days
14 189-1512 Screw 8 x 20 inch $3.94 2 usually ships 10-12 days
15 203-0145 Washer 4-16 inch $2.79 1 usually ships 10-12 days
16 203-5847 Cable $5.50 1 usually ships 10-12 days
17 203-5848 Wiring with terminals $5.50 1 usually ships 10-12 days
18 203-5849 Fair-lead $4.49 1 usually ships 10-12 days
19 203-4740 Washer D4 $2.79 10 usually ships 1-5 days
20 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 8 ships same day
21 189-1376 Screw 4 x 10 inch $3.94 11 usually ships 10-12 days
22 996-1208 Polypropelene scrubbing brush $141.90 2 usually ships 10-12 days
23 203-5850 Spring $4.49 2 usually ships 10-12 days
24 203-4749 Solenoid valve $86.44 1 usually ships 10-12 days
25 203-1286 Washer D6 $2.79 8 usually ships 10-12 days
26 189-0181 Gasket $2.77 2 usually ships 10-12 days
27 203-5851 Bushing Call for price 1 usually ships 10-12 days
