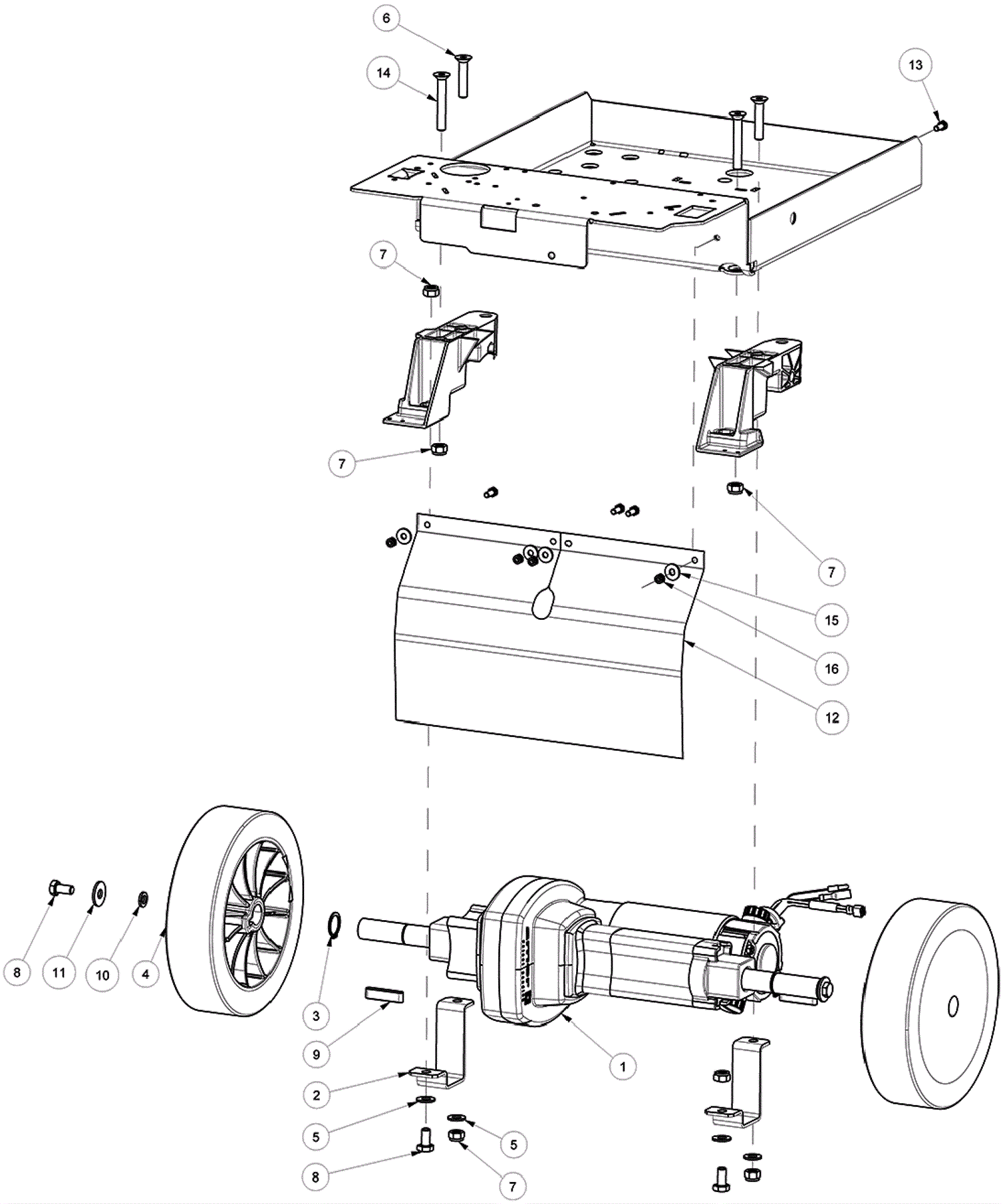

CT71 Frame Assembly 3

#PartDescriptionPriceReqNotesAvailability
1a 203-5837 24V 200W motor traction $1,575.87 1 usually ships 5-15 days
1b 203-5151 Carbon brush $27.22 1 usually ships 5-15 days
2 203-5838 Support traction motor $9.75 2 usually ships 5-15 days
3 189-7523 Outer snap ring $12.93 2 usually ships 1-5 days
4 203-5145 Wheel $132.58 2 usually ships 5-15 days
5 189-0897 Washer D8 $1.00 4 usually ships 5-15 days
6 203-5839 Screw M8x40 $1.30 2 usually ships 5-15 days
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
8 189-1499 Screw $4.34 4 usually ships 1-5 days
9 203-5047 Keyway $6.63 2 usually ships 5-15 days
10 203-4414 Washer $4.44 2 usually ships 5-15 days
11 189-1400 Washer $4.32 2 usually ships 5-15 days
12 203-5840 Flap traction motor $8.61 1 usually ships 5-15 days
13 203-4317 Screw $1.02 4 usually ships 5-15 days
14 203-5841 Screw M8x 55 inox $1.28 2 usually ships 5-15 days
15 189-1462 Washer 5 x 14 inch $2.08 4 usually ships 5-15 days
16 203-0789 Nut $3.00 4 usually ships 5-15 days
